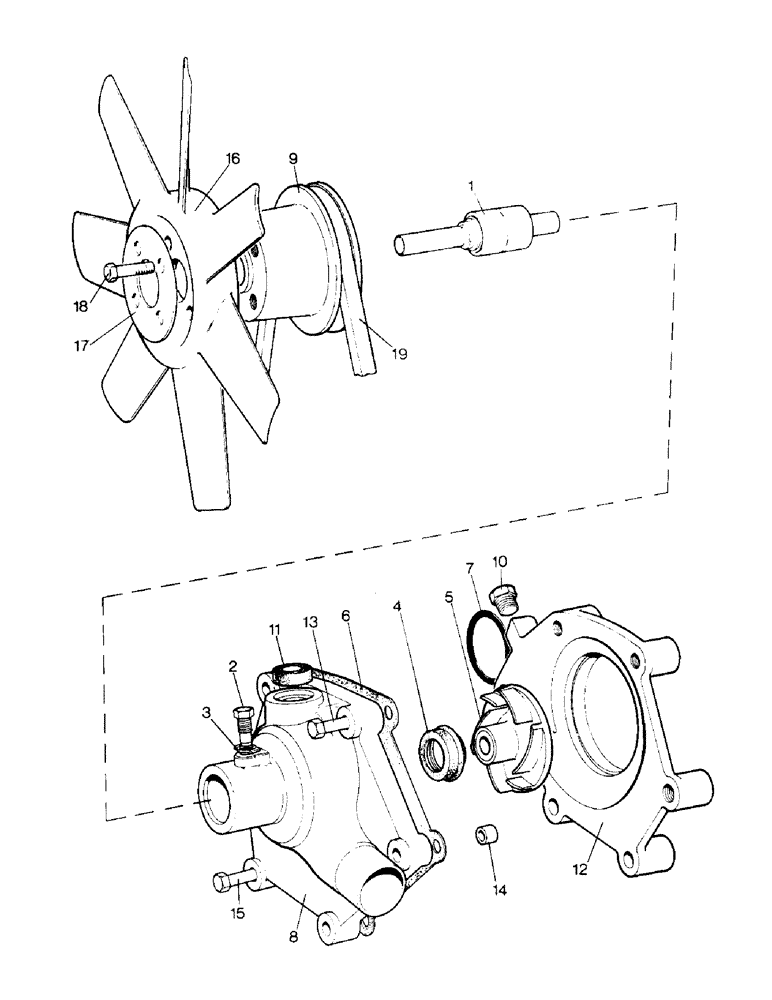

Запчасти Case IH 996 (A08-1) - ENGINE, WATER PUMP AND FAN, 990, 990Q, 990G, 990SK, 995, 995Q, 995G, 995SK, 996, 996Q, 996G, 996SK (01) - ENGINE

K200679

PUMP

WATER PUMP ASSEMBLY (replaced K954288)

1шт.

K965848

PACKAGE, REPAIR

REPAIR PACK - water pump (replaced K964490), Includes: Ref. 1 - 7

1шт.

1

K11651

BEARING

SHAFT AND BEARINGS

1шт.

2

K946260

SCREW

LOCATING SCREW - 5/16 UNC

1шт.

3

K11673

WASHER

TABWASHER - locating screw

1шт.

4

KL68949

GLAND SEAL

1шт.

5

K943357

IMPELLER

IMPELOR, plastic

1шт.

6

K942844

GASKET

1шт.

7

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

"O" RING - 1-5/8 in., housing to cylinder head

1шт.

8

K200679

PUMP

BODY (replaced K953439)

1шт.

9

K942475

PULLEY

1шт.

10

K623829

PLUG

- 3/8 BSP

1шт.

K19500

GASKET

FIBRE WASHER

1шт.

11

K915330

SEALING RING

RUBBER SEAL - pump to cylinder head

1шт.

12

K952667

HOUSING

- impellor

1шт.

13

K600203

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

- 5/16 UNC x 1-1/4 in.

2шт.

14

K31064

SLEEVE

RING DOWEL

2шт.

15

K600211

BOLT

- 5/16 UNC x 2-1/4 in.

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

6шт.

16

K921359

FAN

- seven blade

1шт.

17

K921361

SHIM

RETAINING PLATE - fan

1шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

4шт.

19

K68073

V-BELT

Driving, Fan and alternator

1шт.
