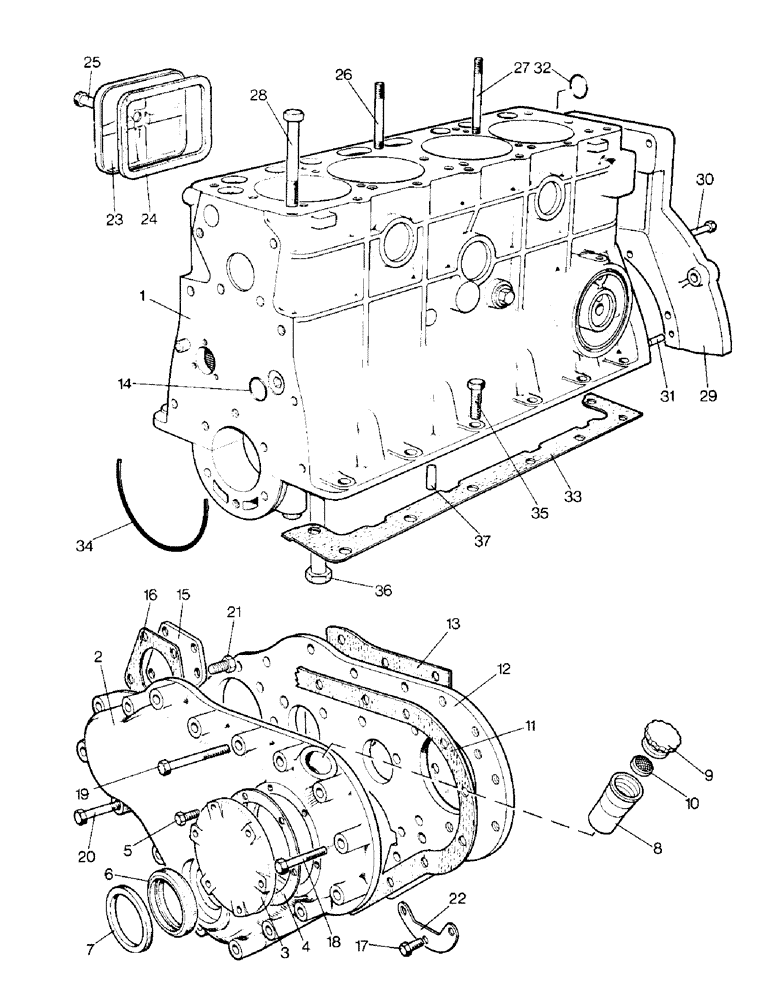

Запчасти Case IH 996 (A02-1) - ENGINE, CYLNDER BLOCK AND COVERS (01) - ENGINE

1

K964893

BLOCK

CYLINDER BLOCK ASSEMBLY (See Figure A01-1)

1шт.

K80062

COVER

TIMING COVER ASSEMBLY, Includes: Ref. 2 - 10

1шт.

2

K944347

COVER

- timing gear

1шт.

3

K924397

COVER

PLATE - inspection

1шт.

4

K924398

FLEXIBLE JOINT

GASKET

1шт.

5

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

6шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

6шт.

6

K623448

SEAL

OIL SEAL - 2-1/8 x 2-7/8 x 3/8 in.

1шт.

7

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

FELT SEAL

1шт.

K964748

TUBE

WITH SCREW-IN FILLER CAP, Includes: Ref. 8 & 9

1шт.

8

K950287

NECK FILLER

TUBE - screw-in filler cap

1шт.

9

K948427

CAP

FILLER CAP - screw-in type

1шт.

For a push and type Order K902118

1шт.

10

K921678

FILTER

SCREEN

1шт.

11

K920794

GASKET

- cover to carrier plate

1шт.

12

K920867

CARRIER

PLATE

1шт.

13

K902031

GASKET

-, Serial Range: plate-block

1шт.

14

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 3/4 in. internal dia.

1шт.

15

K915158

PLATE

BLANKING PLATE - steering pump aperture

1шт.

16

K915157

GASKET

- plate to carrier plate

1шт.

17

K602883

SCREW,5/16" - 18 x 3/4", Gr V

SETSCREW - 5/16 UNC x 3/4 in.

4шт.

18

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

9шт.

19

K600209

BOLT

- 5/16 UNC x 2 in.

1шт.

20

K600205

BOLT

- 5/16 UNC x 1-1/2 in.

6шт.

21

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

3шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

21шт.

22

K902036

GASKET

BAFFLE PLATE

1шт.

23

K10029

COVER

- tappets

2шт.

24

K10030

GASKET

- tappet cover

2шт.

25

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 in.

2шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER - 3/8 in.

2шт.

K950704

STUD

- 3/8 x 3 in., tappet cover (With power steering)

1шт.

280136

NUT,3/8"-16, G8

(With power steering) 3/8"-16, G8

1шт.

26

K906538

STUD

- 1/2 in. UNC/UNF x 4-7/8 in., Serial Range: (Head-block)

10шт.

27

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC/UNF x 5-5/16 in., Serial Range: (Head-block)

2шт.

28

K600870

BOLT

- 1/2 UNC x 4-1/4 in., special

7шт.

29

K903947

SUPPORT

PLATE - starter

1шт.

30

K602906

SCREW

SETSCREW - 3/8 UNC x 1-1/4 in. (Plate to cylinder block)

6шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Plate to cylinder block)

6шт.

31

K12258

PIN

DOWEL - 5/16 x 3/4 in. (Plate to cylinder block)

2шт.

32

K623523

O-RING,1.802" OD x 0.143" Width

"O" RING - 1-13/16 in. internal dia. (Plate to cylinder block)

1шт.

33

K902044

GASKET

- left-hand (Cylinder block to main frame)

1шт.

K902045

GASKET

- right-hand (Cylinder block to main frame)

1шт.

34

K902046

SEAL

- bearing cap (Cylinder block to main frame)

2шт.

35

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 NC x 1-1/8 in. (Cylinder block to main frame)

12шт.

36

K600460

BOLT

- 3/8 UNC x 6-3/4 in., special (Cylinder block to main frame)

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Cylinder block to main frame)

16шт.

37

K621834

PIN

DOWEL - 7/16 x 1-1/8 in. (Cylinder block to main frame)

2шт.

FOOTNOTE

1шт.

Per notes in the parts catalog:

1шт.

FOOTNOTE

1шт.

The block heater is p/n 121568A1. Per notes in the parts catalog:

1шт.

FOOTNOTE

1шт.

The block heater is p/n 121568A1. SMA 7/6/98

1шт.

FOOTNOTE

1шт.

Per notes in the parts catalog:

1шт.

FOOTNOTE

1шт.

The block heater is p/n 121568A1. SMA 7/6/98

1шт.
