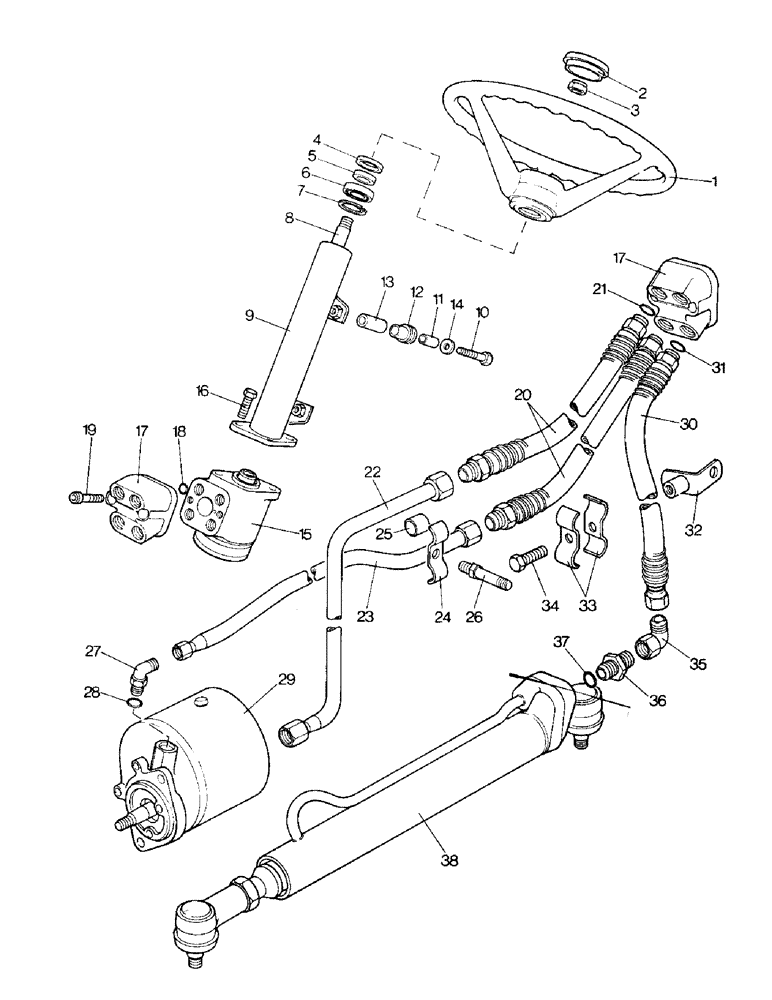

Запчасти Case IH 996 (H06-1) - STEERING AND FRONT AXLE, HYDROSTATIC POWER STEERING Steering & Front Axle
№
Артикул
Название
Примечание
Количество
1
K949446
HANDWHEEL
STEERING WHEEL
1шт.
2
K952274
CAP
HUB CAP
1шт.
3
K607304
NUT
NYLOC NUT - 1/2 UNC
1шт.
K626686
WASHER
- 1/2 in.
1шт.
4
K623467
SEAL
FELT WASHER
1шт.
5
K627103
BUSHING
DISTANCE PIECE
1шт.
6
K620192
BALL
BEARING
1шт.
7
K11911
RING, SNAP
CIRCLIP - 1-5/8 in. internal dia.
2шт.
8
K950172
SHAFT
1шт.
9
K951199
SUPPORT
STEERING COLUMN
1шт.
10
K600369
BOLT
- 5/16 UNC x 1-3/4 in. (Steering, Serial Range: column-console)
4шт.
11
K627305
BUSHING
SPACER - inner (Steering, Serial Range: column-console)
4шт.
12
K950214
RUBBER
MOUNTING (Steering, Serial Range: column-console)
4шт.
13
K627086
BUSHING
SPACER - outer (Steering, Serial Range: column-console)
4шт.
14
K62684
WASHER - 5/16 in., special (Steering, Serial Range: column-console)
4шт.
15
K946083
VALVE
ORBITROL STEERING VALVE - type OSP125
1шт.
K962387
GASKET KIT
SEAL PACK - steering valve
1шт.
16
K602983
SCREW
SETSCREW - 3/8 UNC x 7/8 in., Serial Range: (Valve-column)
4шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in., Serial Range: (Valve-column)
4шт.
17
K951452
FITTING
CONNECTING BLOCK
1шт.
18
K15028
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
"O" RING - 7/8 in. internal dia.
4шт.
19
K624682
SCREW
- 10 x 25 MM
2шт.
20a
K951490
HOSE
PIPE - flexible - 3/4 - 7/8 UNF x 17 in. (990Q, 995Q, 996Q)
2шт.
20b
K955283
HOSE
PIPE - flexible - 3/4 - 7/8 UNF x 17 in., armoured (990SK, 995SK, 996SK)
2шт.
20c
K955750
HOSE
PIPE - flexible, 3/4 - 7/8 UNF x 23 in. (990GSK, 995GSK, 996GSK)
1шт.
20d
K955668
HOSE
PIPE - flexible, 3/4 - 7/8 UNF x 16-1/4 in. (990GSK, 995GSK, 996GSK)
1шт.
K200059
VALVE
CHECK VALVE - 3/4 UNF, pump line (990GSK, 995GSK, 996GSK)
1шт.
K200060
VALVE
CHECK VALVE - 3/4 UNF, tank line (4WD tractors) (990GSK, 995GSK, 996GSK)
1шт.
21
K623589
O-RING
"O" RING (990SK, 995SK, 996SK, 990GSK, 995GSK, 996GSK)
2шт.
21a
NSS
NOT SOLD SEPARAT
(990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
2шт.
21a
NSS
NOT SOLD SEPARAT
(990GSK, 995GSK, 996GSK)
3шт.
22
K951489
PIPE
- pump return (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
23
K951488
PIPE
- pump outlet (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
24
K950703
SHIM
PIPE CLIP (Pipes to cylinder block)
2шт.
25
K628240
STRIP
RUBBER STRIP (Pipes to cylinder block)
2шт.
26
K950704
STUD
- 3/8 UNC x 3 in.
1шт.
280136
NUT,3/8"-16, G8
1шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in.
1шт.
27
K622110
FITTING
ELBOW - 9/16 UNF, pump outlet
1шт.
28
K623649
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
"O" RING - 7/16 in. internal dia.
1шт.
K955751
PIPE
- reservoir inlet (990GSK, 995GSK, 996GSK)
1шт.
K949703
RESERVOIR
ASSEMBLY - See Figure H08-1 (990GSK, 995GSK, 996GSK)
1шт.
K949700
PIPE
- reservoir to pump (990GSK, 995GSK, 996GSK)
1шт.
K924391
HOSE
- 5/8 x 2-1/8 in. (990GSK, 995GSK, 996GSK)
2шт.
K14679
HOSE
CLIP - 9/16 in. (990GSK, 995GSK, 996GSK)
4шт.
K621733
CLIP
PIPE CLIP (990GSK, 995GSK, 996GSK)
1шт.
29
K944944
PUMP
ASSEMBLY - See Figure H08-1
1шт.
30a
K951501
PIPE
- flexible, 3/4 UNF x 36 in. (990Q, 995Q, 996Q)
2шт.
30b
K954720
HOSE
PIPE - flexible, 3/4 UNF x 36 in., armoured (990SK, 995SK, 996SK, 990GSK, 995GSK, 996GSK)
2шт.
30c
K955554
HOSE
PIPE - flexible, 3/4 UNF x 18 in.
2шт.
31
K623589
O-RING
"O" RING - 5/8 in. internal dia.
2шт.
32a
K950969
BRACKET
- ram pipes (990Q, 995Q, 996Q)
1шт.
32b
K954042
BRACKET
- ram pipes (990SK, 995SK, 996SK, 990GSK, 995GSK, 996GSK)
1шт.
33
K950972
CLAMP
PIPE CLIP
2шт.
34a
K602982
SCREW,3/8" - 16 x 3/4", Gr S
SETSCREW - 3/8 UNC x 3/4 in. (990Q, 995Q, 996Q)
1шт.
34b
K602936
SCREW,3/8" - 16 x 1 1/2", Gr S
BOLT - 3/8 UNC x 1-1/4 in. (990SK, 995SK, 996SK, 990GSK, 995GSK, 996GSK)
1шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in.
1шт.
280136
NUT,3/8"-16, G8
(990SK, 995SK, 996SK, 990GSK, 995GSK, 996GSK) 3/8"-16, G8
1шт.
35
K622115
NUT
ELBOW - 3/4 UNF
2шт.
36
K626039
FITTING
UNION - 3/4 UNF
1шт.
37
K623589
O-RING
"O" RING - 5/8 in. internal dia.
1шт.
38
K945702
CYLINDER
STEERING RAM ASSEMBLY - See Figure H09-1
1шт.
Выбрано товаров: 62
