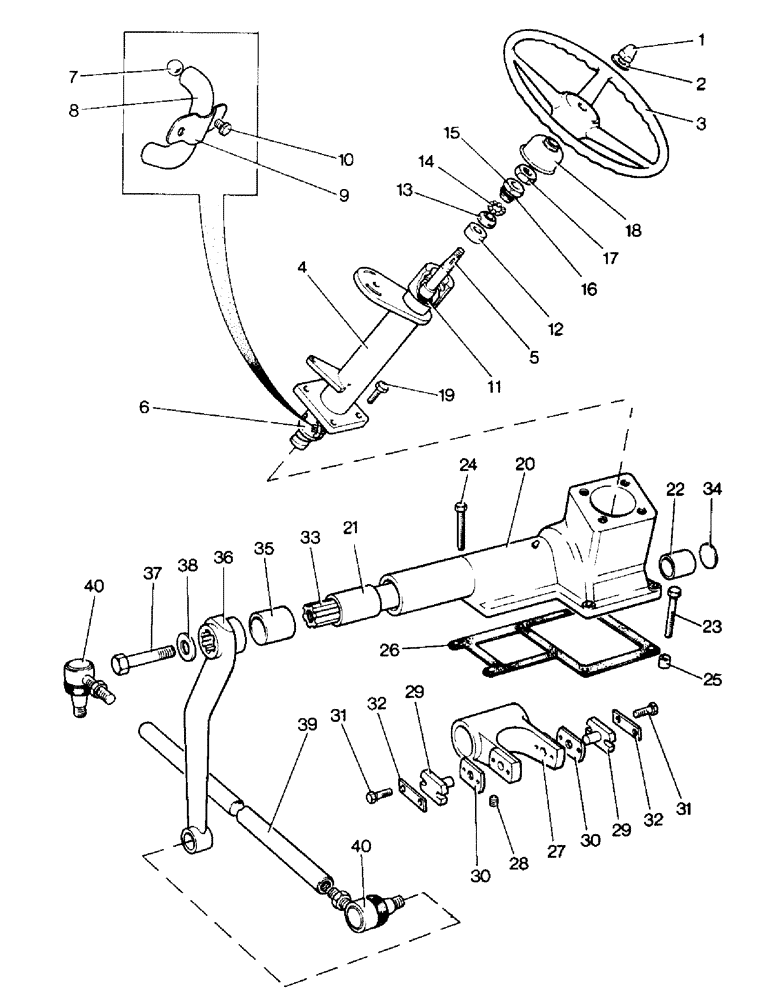

Запчасти Case IH 996 (H04-1) - STEERING AND FRONT AXLE, STEERING BOX AND COLUMN - MANUAL STEERING, 990, 995, 996, 990G, 995G, 996G Steering & Front Axle

1

K905679

NUT

DOMED NUT - 5/8 UNC

1шт.

2

K626671

WASHER

- 5/8 in., special

1шт.

3

K83746

WHEEL

STEERING WHEEL - black

1шт.

K19608

KEY

- Woodruff no. 606

1шт.

K912410

STEERING COLUMN

ASSEMBLY, Includes: Ref. 4 - 18 and grease fitting

1шт.

4

K912413

SUPPORT

STEERING COLUMN

1шт.

5

K912411

KIT

STEERING SCREW AND NUT, Includes: Ref. 6 - 10

1шт.

6

K961672

NUT

STEERING NUT

1шт.

7

K11286

BALL

STEEL BALL - 5/16 in. dia.

28шт.

8

K960990

TUBE NUT

TRANSFER TUBE - halves

2шт.

9

K960991

RETAINER

CLIP - transfer tube

1шт.

10

K960992

BOLT

- 1/4 UNF, special

2шт.

11

K903469

PAD, RUBBER

RUBBER BAFFLE

1шт.

12

K903461

SPACER

SPHERICAL SEATING

1шт.

13

K903462

SPHERICAL BEARING

LOWER BEARING

1шт.

14

K13506

BALL

STEEL BALL - 3/8 in. dia.

12шт.

15

K903463

BEARING CONE

ADJUSTABLE BEARING CONE

1шт.

16

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

"O" RING - 1-1/4 in. internal dia.

1шт.

17

K924967

NUT

LOCKNUT

1шт.

18

K923681

SEAL

DIRT EXCLUDER

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

19

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SETSCREW - 7/16 UNC x 1-1/2 in. (Column to steering box)

4шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Column to steering box)

4шт.

20

K962511

HOUSING

STEERING BOX, Includes: Ref. 21 & 22

1шт.

21

K621301

BUSHING

BUSH - long

2шт.

22

K621300

BUSHING

BUSH - short

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

23

K600403

BOLT

- 3/8 UNC x 1-3/8 in. (Steering box to gearbox cover)

4шт.

24

K600412

BOLT

SETSCREW - 3/8 UNC x 2-1/2 in. (Steering box to gearbox cover)

2шт.

25

K622042

RING

DOWEL - 9/16 x 1-1/8 in. (Steering box to gearbox cover)

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Steering box to gearbox cover)

5шт.

K626521

SEALING WASHER

ING WASHER - 3/8 in. (Steering box to gearbox cover)

1шт.

26

K89395

GASKET

(Steering box to gearbox cover)

1шт.

27

K943909

LEVER

ROCKER ARM

1шт.

28

K606406

SCREW

LOCATING SCREW - 3/8 UNC x 5/8 in.

1шт.

29

K912108

BALL

PEG

2шт.

30a

K900945

GASKET

SHIM - 0.003 in.

1шт.

30b

K900946

SHIM,.005" Thk

1шт.

30c

K900947

GASKET

SHIM - 0.007 in.

1шт.

30d

K900948

SHIM,.010" Thk

1шт.

31

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in.

4шт.

32

K912109

WASHER

TABWASHER

2шт.

33

K943910

SHAFT

DROP ARM SHAFT

1шт.

34

K10050

PLUG

CORE PLUG - 1-1/4 in.

1шт.

35

K86963

LARGE HOSE

DUST SEAL - drop arm shaft

1шт.

36a

K952865

ARM

DROP ARM

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, S/N 11075111 and after

1шт.

36b

K943911

ARM

DROP ARM

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, up to S/N 11075111

1шт.

37

K600808

BOLT

- 1/2 UNC x 2-1/4 in. (Drop, Serial Range: arm-shaft)

1шт.

38

K910646

WASHER

- 1/2 in., special (Drop, Serial Range: arm-shaft)

1шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in. (Drop, Serial Range: arm-shaft)

1шт.

K952866

LINK

DRAG LINK ASSEMBLY, Includes: parts listed below

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, S/N 11075111 and after

1шт.

K943731

LINK

DRAG LINK ASSEMBLY, Includes: parts listed below

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, up to S/N 11075111

1шт.

39

K943732

TUBE

DRAG LINK TUBE

1шт.

40a

K915962

BALL JOINT

BALL SOCKET ASSEMBLY

2шт.

Used on models 990, 990G, 995, 995G, 996, 996G, S/N 11075111 and after

1шт.

K962155

CAP

DIRT EXCLUDER

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, S/N 11075111 and after

1шт.

K622500

LOCK NUT

LOCKNUT - 3/4 in., special

1шт.

131-377

LOCK NUT,5/8"-11, GC

NYLOC NUT - 5/8 UNF

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, S/N 11075111 and after

1шт.

40b

K908071

BALL JOINT

BALL SOCKET ASSEMBLY

2шт.

Used on models 990, 990G, 995, 995G, 996, 996G, up to S/N 11075111

1шт.

K961701

BOOT

DIRT EXCLUDER

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, up to S/N 11075111

1шт.

K622500

LOCK NUT

LOCKNUT - 3/4 in., special

1шт.

231-2448

LOCK NUT,1/2"-20, GB

NYLOC NUT - 1/2 UNF

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, up to S/N 11075111

1шт.
