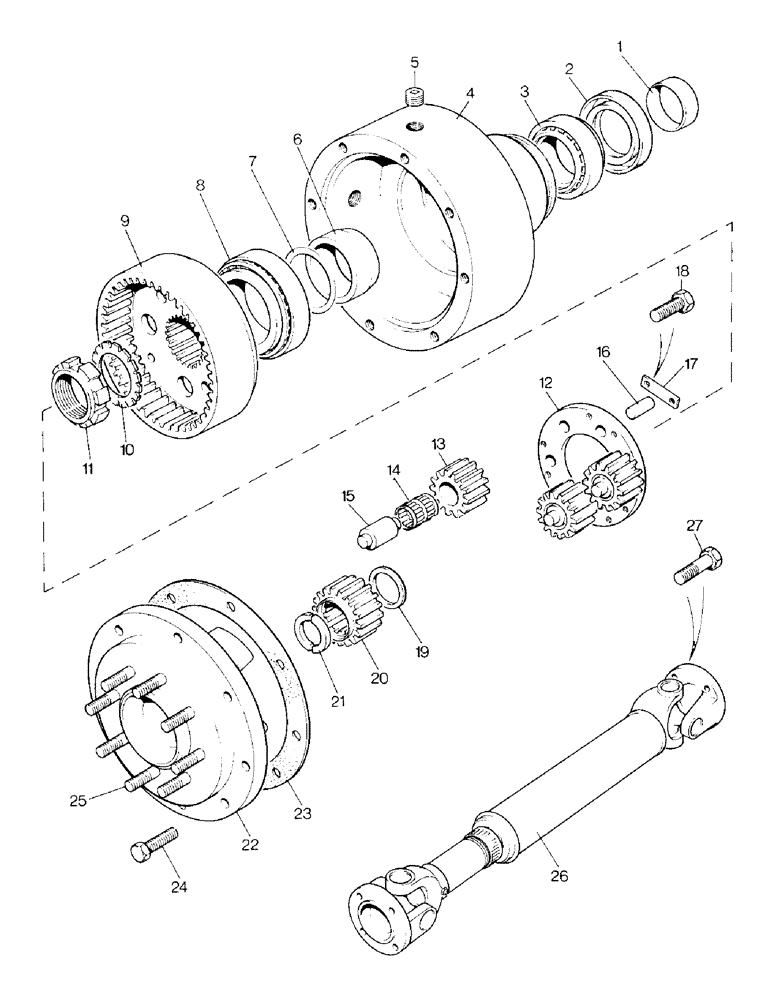

Запчасти Case IH 996 (H03-6-1) - STEERING & FRONT AXLE, REDUCTION HUB & PROPELLOR SHAFT FOR FRONT AXLE MK4 4WD TRAC, DAVID BROWN AXLE Steering & Front Axle

1

K955500

SLEEVE

WEAR SLEEVE

2шт.

2

K623475

OIL SEAL,88.9mm ID x 114.3mm OD x 12.7mm Thk

OIL SEAL

2шт.

3

K19185

TAPERED BEARING

TAPER ROLLER BEARING

2шт.

4

K953837

HOUSING

REDUCTION CASE

2шт.

5

K14596

PLUG

TAPER PLUG

4шт.

6

K951367

BUSHING

SPACER

2шт.

7a

K626253

SHIM,.030" Thk

1шт.

7b

K626252

SHIM,.015" Thk

1шт.

7c

K626251

SHIM,.005" Thk

1шт.

7d

K626250

SHIM,.002" Thk

1шт.

8

K620121

BEARING

TAPER ROLLER BEARING

2шт.

9

K954838

GEAR

ANNULUS GEAR

2шт.

10

K85355

LOCK WASHER

TABWASHER - stub axle locknut

2шт.

11

K85359

LOCK NUT

LOCKNUT - annulus gear to stub axle

2шт.

12

K951366

CARRIER

PLANET CARRIER

2шт.

13

K951362

GEAR

PLANET GEAR - 13 teeth

6шт.

14

K620152

NEEDLE BEARING CAGE

NEEDLE ROLLER BEARING - planet gear

12шт.

15

K951361

PIN

BEARING PIN - planet gear

6шт.

16

K621808

PIN

DOWEL - 5/8 x 1-1/4 in. (Planet carrier to end plate)

6шт.

17

K626434

WASHER

TAB WASHER (Planet carrier to end plate)

6шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Planet carrier to end plate) Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

19

K627430

WASHER

THRUST WASHER - half shaft

2шт.

20

K951363

GEAR

SUN GEAR - 16 teeth

2шт.

21

K951365

RING

SPLIT RING - half

4шт.

22

K953736

PLATE

END PLATE

2шт.

23

K200223

GASKET

(End plate to reduction case)

2шт.

24

K603110

SCREW

SETSCREW - 1/2 UNC x 1-3/4 in. (End plate to reduction case)

16шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in.

16шт.

25

K608612

STUD

- 5/8 UNC x 2-3/8 in.

16шт.

26

K955222

SHAFT

PROPELLOR SHAFT ASSEMBLY

1шт.

27

K600529

BOLT

- special, 3/8 UNC x 1-1/8 in., propellor shaft

8шт.

K607237

NUT

- 3/8 UNC, grade 5

8шт.

K626360

WASHER

TABWASHER - propellor shaft

8шт.

K956438

JOURNAL

REPAIR KIT - universal joints

1шт.
