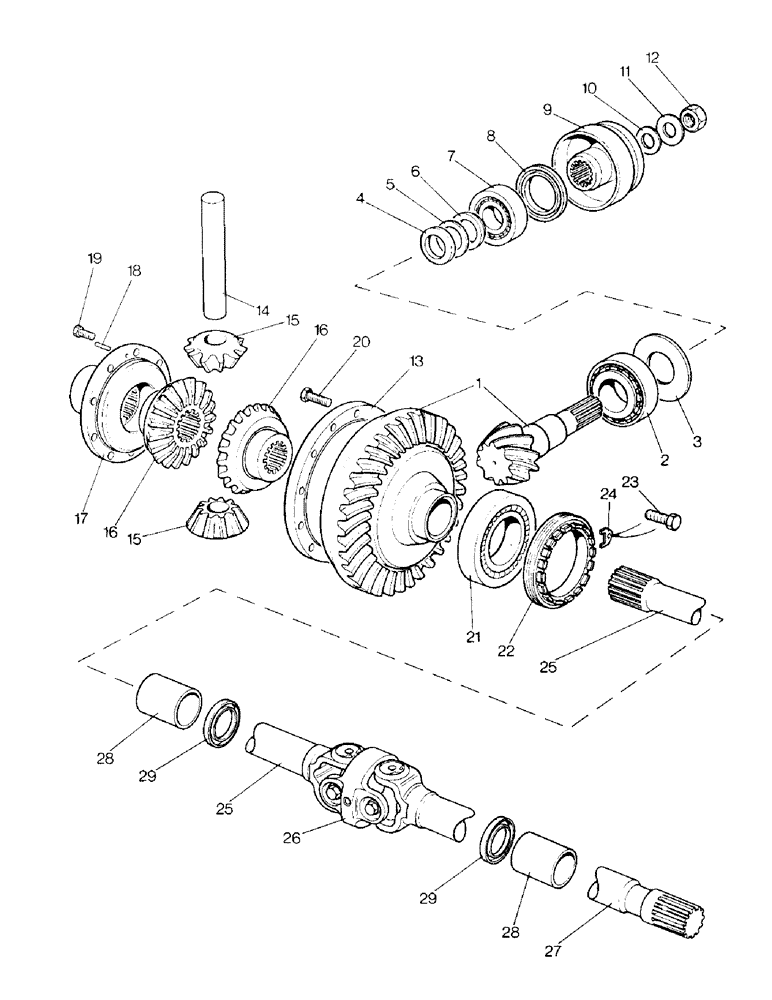

Запчасти Case IH 996 (H03-5-1) - STEERING & FRONT AXLE, DIFFERENTIAL & HALF SHAFTS FOR FRONT AXLE MK4 4WD TRACTORS, DAVID BROWN AXLE Steering & Front Axle

1

K964777

GEAR-SET

BEVEL WHEEL AND PINION SHAFT

1шт.

2

K620131

ROLLER

TAPER ROLLER BEARING - Timken HM804846

1шт.

3a

K942875

SHIM

- 0.030 in.

1шт.

3b

K942874

SHIM

- 0.010 in.

1шт.

3c

K942873

SHIM

- 0.003 in.

1шт.

3d

K942872

SHIM

- 0.002 in.

1шт.

4

K940969

BUSHING

DISTANCE PIECE - front

1шт.

5a

K917848

SHIM

- 0.030 in.

1шт.

5b

K917847

SHIM

- 0.010 in.

1шт.

5c

K917846

SHIM

- 0.005 in.

1шт.

5d

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002 in.

1шт.

6

K917844

BUSHING

DISTANCE PIECE - rear

1шт.

7

K620061

BEARING, ROLLER

TAPER ROLLER BEARING - Timken HM89446

1шт.

8

K623474

SEAL

OIL SEAL - 50 MM internal dia.

1шт.

9

K200605

FLANGE

AND GUARD ASSEMBLY

1шт.

K951018

FLANGE

1шт.

K200603

GUARD

- propellor shaft

1шт.

10

K626459

SEALING WASHER

SEALING WASHER

1шт.

11

K626758

WASHER

- retaining

1шт.

12

K617307

LOCK NUT

NYLOC NUT - 3/4 UNF

1шт.

13

K942316

DIFFERENTIAL

CAGE

1шт.

14

K951273

PIN

DIFFERENTIAL PIN

1шт.

15

K942317

DIFFERENTIAL

PINION - 10 teeth

2шт.

16

K30234

CONE PINION

DIFFERENTIAL WHEEL - 16 teeth

2шт.

17

K903184

FLANGE

END PLATE

1шт.

18

K621801

PIN

DOWEL - 3/8 x 1-1/8 in. (End plate to differential cage)

3шт.

19

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(End plate to differential cage) Hex, 3/8"-16 x 1", G5, Full Thd

9шт.

K626372

WASHER

TABWASHER - single (End plate to differential cage)

3шт.

K903185

WASHER

TABWASHER - double (End plate to differential cage)

3шт.

20

K603005

SCREW

SETSCREW - 7/16 UNC x 1-1/4 in. (Differential cage to bevel wheel)

12шт.

K30236

WASHER

TABWASHER - double (Differential cage to bevel wheel)

6шт.

21

K19010

BALL BEARING

- differential

2шт.

22

K15007

RING, LOCKING

ADJUSTER WHEEL - differential bearing

2шт.

23

K602801

BOLT (SPREADER)

SETSCREW - 5/16 UNC x 1/2 in.

2шт.

24

K626420

WASHER

TABWASHER - adjuster wheel

2шт.

K955369

SHAFT ASSY.

HALF SHAFT ASSEMBLY, Includes: Ref. 25 - 27

2шт.

25

K955372

SHAFT

DRIVE SHAFT - long

1шт.

26

K955371

JOINT

CENTRE HOUSING

1шт.

27

K955370

DRIVE SHAFT

- short

1шт.

K965215

U-JOINT SPIDER

REPAIR KIT - half shaft universal joint

1шт.

28

K621367

BUSHING

BUSH - half shaft

4шт.

29

K623471

SEAL

OIL SEAL - half shaft

4шт.
