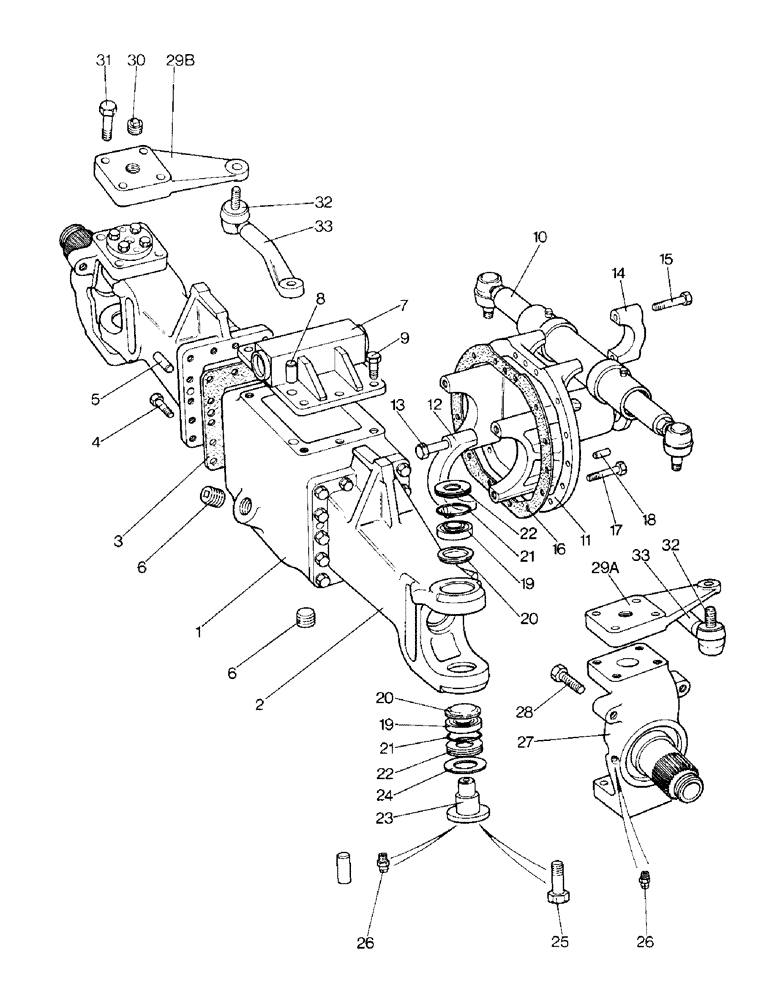

Запчасти Case IH 996 (H03-4-1) - STEERING AND FRONT AXLE, FRONT AXLE MK4 4WD TRACTORS, DAVID BROWN AXLE, 990 4WD, 996 4WD Steering & Front Axle

K954954

SHAFT

FRONT AXLE ASSEMBLY - (Mk4 4WD tractors, David Brown axle)

1шт.

1

K953744

HOUSING

DIFFERENTIAL HOUSING

1шт.

2

K954865

SHAFT

HALF SHAFT HOUSING

2шт.

3

K953733

GASKET

(Half shaft housings to differential housing)

2шт.

4

K603110

SCREW

SETSCREW - 1/2 UNC x 1-3/4 in. (Half shaft housings to differential housing)

28шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in. (Half shaft housings to differential housing)

28шт.

5

K30134

PIN

DOWEL - 1/2 x 1-5/16 in.

4шт.

6

K12362

PLUG

- drain and filler, 1 in.

2шт.

7

K951224

TRUNNION

BRACKET

1шт.

8

K622902

PIN

DOWEL - 3/4 x 1-5/16 in. (Trunnion bracket to differential housing)

2шт.

9

K603308

BOLT (SPREADER)

BOLT - 5/8 UNC x 1-3/4 in. (Trunnion bracket to differential housing)

6шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (Trunnion bracket to differential housing)

6шт.

10

K955079

STEERING CYLINDER

STEERING RAM ASSEMBLY - See Fig H10-1

1шт.

K955082

SUPPORT

DIFFERENTIAL SUPPORT BRACKET ASSEMBLY, Includes: Ref. 11 - 15 and spring washer

1шт.

11

K955083

X

DIFFERENTIAL SUPPORT BRACKET

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING CAP

2шт.

13

K601242

BOLT

- 5/8 UNC x 3-3/4 in. (Bearing caps to support bracket)

4шт.

K626389

BEARING WASHER

TABWASHER (Bearing caps to support bracket)

4шт.

14

K955084

CAP

- steering ram cylinder

2шт.

15

K600612

BOLT

- 7/16 UNC x 2-3/4 in.

4шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in.

4шт.

16

K951258

GASKET

1шт.

17

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SETSCREW - 7/16 UNC x 1-1/2 in.

14шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in.

14шт.

18

K30134

PIN

DOWEL - 1/2 x 1-5/16 in.

2шт.

19

K620116

TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W

ROLLER BEARING - Timken M88010

4шт.

20

K951274

PLATE

BLANKING PLATE

4шт.

21

K14499

O-RING,2.437" ID x 2.715" OD x 0.139"

"O" RING - 2-7/16 in. internal dia., Gaco R165

4шт.

22

K951275

DISC

SEALING DISC

4шт.

23

K951276

PIN

BEARING PIN

4шт.

24a

K626939

SHIM,.030" Thk

1шт.

24b

K626938

SHIM,.010" Thk

1шт.

24c

K626937

SHIM,.003" Thk

1шт.

24d

K626936

SHIM,.002" Thk

1шт.

25

K603005

SCREW

SETSCREW - 7/16 UNC x 1-1/4 in. (Bearing pin to stub axle)

16шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Bearing pin to stub axle)

16шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

6шт.

27

K954890

SHAFT

STUB AXLE

2шт.

28

K603318

BOLT

SETSCREW - 5/8 UNC x 3 in. (Steering stop)

4шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

LOCKNUT (Steering stop)

4шт.

29a

K953567

LEVER

STEERIGN LEVER - left-hand

1шт.

29b

K953568

LEVER

STEERING LEVER - right-hand

1шт.

30

K19578

PLUG

TAPER PLUG - 3/4 BSP

2шт.

31

K601210

BOLT (SPREADER)

BOLT - 5/8 UNC x 2-3/4 in.

8шт.

K19485

WASHER

SPRING WASHER - 5/8 in.

8шт.

32

K915962

BALL JOINT

BALL AND SOCKET ASSEMBLY

2шт.

K962155

CAP

DIRT EXCLUDER

1шт.

K622500

LOCK NUT

LOCKNUT - 3/4 in. Whitworth

1шт.

131-377

LOCK NUT,5/8"-11, GC

NYLOC NUT - 5/8 UNF

1шт.

33

K951408

LINK

STEERING LINK

2шт.
