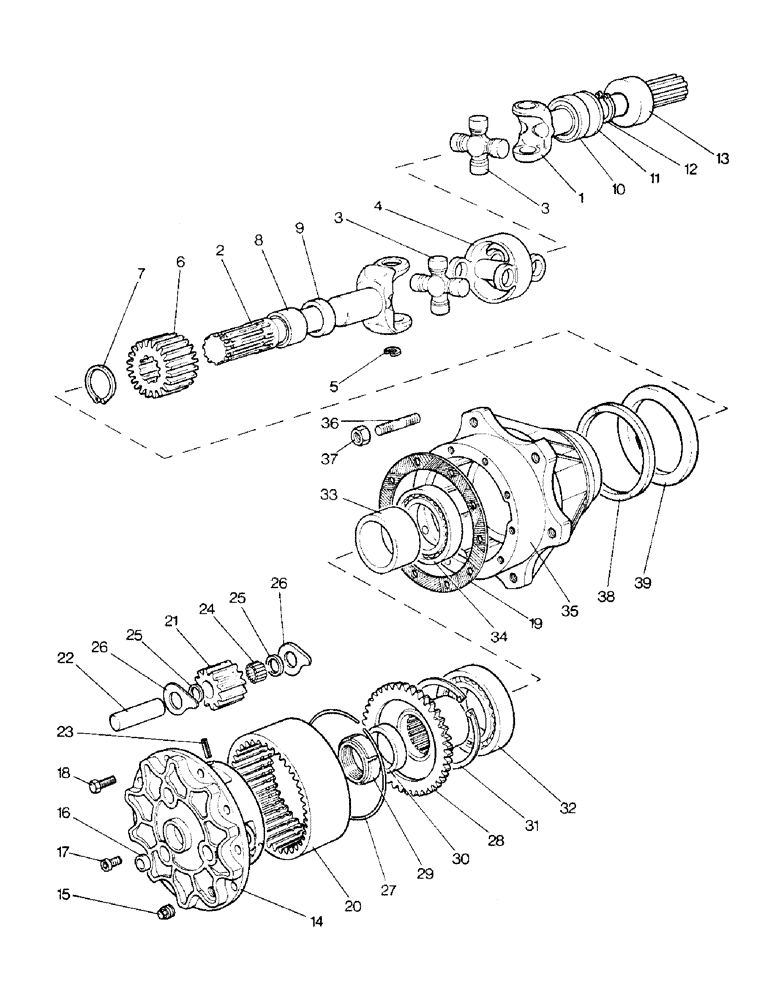

Запчасти Case IH 996 (H03-3-1) - STEERING AND FRONT AXLE, HALF SHAFTS AND REDUCTION FOR FRONT AXLE - CARRARO 4WD TRACTORS Steering & Front Axle

K965328

SHAFT

DRIVE SHAFT COMPLETE - (Carraro 102176), Includes: Ref. 1 - 5

2шт.

1

K965329

DRIVE

HALF-SHAFT - long, (Carraro 102406)

1шт.

2

K965330

SHAFT

HALF-SHAFT - short, (Carraro 96869)

1шт.

3

K965331

SPIDER

AND BEARINGS, (Carraro 96867)

2шт.

4

K965332

HOUSING

CENTRE BODY - (Carraro 96868)

1шт.

5

K965336

RING, SNAP

CIRCLIP - universal joint, (Carraro 40181)

8шт.

6

K965312

GEAR

SUN GEAR - 18 teeth, (Carraro 88558)

2шт.

7

K965313

RING, SNAP

CIRCLIP - sun gear, (Carraro 24790)

2шт.

8

K965322

BUSHING

BUSH - stub axle, (Carraro 88674)

2шт.

9

K965325

SEAL

OIL SEAL - 40 MM internal dia., (Carraro 25187)

2шт.

10

K965333

BALL BEARING,40mm ID x 80mm OD x 23mm W

- half-shaft, long, (Carraro 26024)

2шт.

11

K965337

SEAL

GREASE BAFFLE - half-shaft bearing, (Carraro 95951)

2шт.

12

K965334

SNAP RING,M40, Ext

(Carraro 24795) M40, Ext

2шт.

13

K965335

OIL SEAL,40mm ID x 72mm OD x 10mm Thk

OIL SEAL - 40 MM internal dia., (Carraro 25193)

2шт.

14

K965279

CARRIER

COVER - hub, (Carraro 100006/2)

2шт.

15

K965263

PLUG

- cover, (Carraro 92269)

2шт.

16

K965301

HOLE PLUG BUTTON

CORE PLUG - (Carraro 100002)

6шт.

17

K965299

SCREW

LEVEL PLUG - (Carraro 77462)

2шт.

K965300

WASHER

- level plug, (Carraro 23258)

2шт.

18

K965302

SCREW

SETSCREW - M10 x 30 MM, (Carraro 20852), Serial Range: (Cover-hub)

20шт.

K965303

LOCK WASHER,M10

SPRING WASHER - , (Carraro 22859) (Cover to hub) M10

20шт.

19

K965304

GASKET

- (Carraro 88643), Serial Range: (Cover-hub)

2шт.

20

K965314

GEAR

ANNULUS GEAR - 48 teeth, (Carraro 88671)

2шт.

21

K965308

GEAR

PLANET GEAR - 15 teeth, (Carraro 100005)

6шт.

22

K965307

AXLE PIN

SHAFT - planet gear, (Carraro 100003)

6шт.

23

K965305

SPLIT PIN/SAFETY PIN

SPRING PIN - planet gear shaft, (Carraro 24368)

6шт.

24

K965309

NEEDLE

ROLLER - planet gear, (Carraro 100148) Quantity per planet gear is 23

1шт.

25

K965311

WASHER

RETAINER - needle rollers, (Carraro 100150)

12шт.

26

K965310

BEARING WASHER

THRUST PLATE - (Carraro 104479)

12шт.

27

K965306

SNAP RING

CIRCLIP - (Carraro 88678)

4шт.

28

K965317

CARRIER

SUPPORT GEAR - (Carraro 88670)

2шт.

29

K965315

RING NUT

RING NUT - (Carraro 23319)

2шт.

30

K965316

BUSHING

SPACER - (Carraro 88673)

2шт.

31

K965318

RING, SNAP

CIRCLIP - (Carraro 24950)

2шт.

32

K965319

BEARING ASSY

BALL BEARING - 80 x 140 x 26 MM, (Carraro 25817)

2шт.

33

K965320

SPACER

- (Carraro 88641)

2шт.

34

K965321

BALL BEARING

- 80 x 125 x 22 MM (Carraro 25745)

2шт.

35

K965278

WHEEL

HUB - (Carraro 102405/1)

2шт.

36

K965327

WHEEL

STUD - (Carraro 104781), Serial Range: (Wheel-hub)

12шт.

37

K965326

WHEEL NUT

- (Carraro 104782), Serial Range: (Wheel-hub)

12шт.

38

K965323

GASKET

- (Carraro 102148)

2шт.

39

K962324

SEAL

- (Carraro 25346)

2шт.
