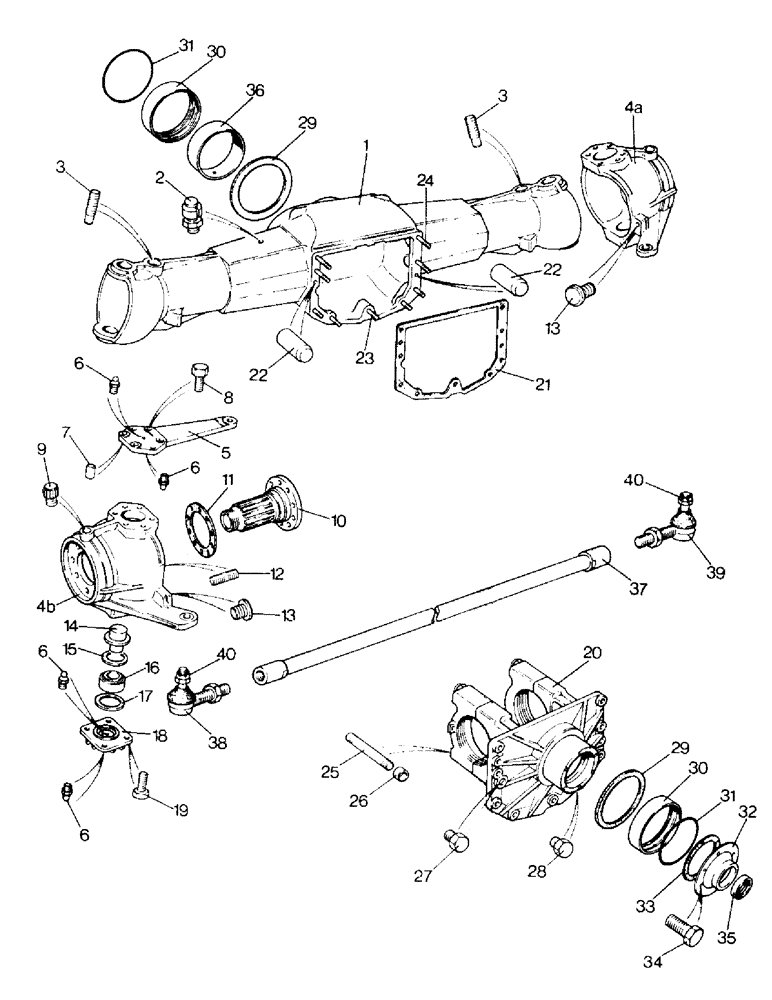

Запчасти Case IH 996 (H03-1-1) - STEERING AND FRONT AXLE, FRONT AXLE MK3 - CARRARO 4WD TRACTORS, 990 4WD, 995 4WD, 996 4WD Steering & Front Axle

1

K965230

AXLE

CASE - (Carraro 102177)

1шт.

2

K965231

BREATHER

- axle case, (Carraro 104988)

1шт.

3

K965232

BOLT,M10 x 1.25 x 35mm, Cl 10.9

SPECIAL SCREW - M14, bearing retention, (Carraro 95952)

4шт.

905238R1

THIN NUT,M14 x 2, Thin

(Carraro 22125) M14 x 2, Thin

4шт.

4a

K965234

HOUSING

SWIVEL HOUSING - right-hand, (Carraro 102403)

1шт.

4b

K965235

HOUSING

SWIVEL HOUSING - left-hand, (Carraro 102404)

1шт.

5

K965276

LEVER

STEERING LEVER - (Carraro 105263)

1шт.

6

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - (Carraro 24210)

8шт.

7

K965275

PIN

DOWEL - (Carraro 93818) (Steering lever to swivel housing)

2шт.

8

K965277

SCREW

SETSCREW - M14, (Carraro 20971) (Steering lever to swivel housing)

4шт.

K965248

WASHER

SPRING WASHER - M14, (Carraro 22863) (Steering lever to swivel housing)

4шт.

9

K965238

BREATHER

- swivel housing, (Carraro 30369)

2шт.

10

K965236

SHAFT

STUB AXLE - (Carraro 96839)

2шт.

11

K965237

GASKET

- (Carraro 92522) (Stub axle to swivel housing)

2шт.

12

K965249

STUD

- M14, (Carraro 96840) (Stub axle to swivel housing)

20шт.

K965250

NUT

NYLOC NUT - M14, (Carraro 22429) (Stub axle to swivel housing)

20шт.

13

K965260

STOP

SETSCREW - special, steering stop, (Carraro 99668)

2шт.

K965261

SHIM

- 0.5 MM, (Carraro 101035)

1шт.

K965262

SHIM

- 1.0 MM, (Carraro 101036)

1шт.

14

K965239

PIN

BEARING PIN - (Carraro 96851)

4шт.

15

K965240

BEARING COVER

OIL SEAL - bearing pin, (Carraro 88987)

4шт.

16

K965241

BEARING

TAPER ROLLER BEARING - (Carraro 27402)

4шт.

17a

K965243

SHIM,0.1mm Thk

(Carraro 91179) 0.1mm Thk

1шт.

17b

K965244

SHIM,0.3mm Thk

(Carraro 91180) 0.3mm Thk

1шт.

17c

K965245

SHIM,0.5mm Thk

(Carraro 91181) 0.5mm Thk

1шт.

18

K965242

COVER

- swivel housing, (Carraro 88721)

3шт.

19

K965247

BOLT,M14 x 35mm

SETSCREW - M14 x 35 MM, (Carraro 20967) (Cover to swivel housing)

12шт.

K965248

WASHER

SPRING WASHER - M14 x 35 MM, (Carraro 22863) (Cover to swivel housing)

12шт.

20

K965258

DIFFERENTIAL

END PLATE - (Carraro 101426)

1шт.

21

K965251

GASKET

- (Carraro 101989) (End plate to axle case)

1шт.

22

K965252

PIN

DOWEL - (Carraro 87660) (End plate to axle case)

2шт.

23

K965254

STUD

- M12 x 47 MM, (Carraro 98464) (End plate to axle case)

4шт.

24

K965253

STUD

- M12 x 53 MM, (Carraro 96931) (End plate to axle case)

5шт.

905834R1

THIN NUT,M12 x 1.25, Thin

NYLOC NUT - M12, (Carraro 22414) (End plate to axle case)

4шт.

K965256

NUT

NYLOC NUT - M12, (Carraro 22415) (End plate to axle case)

5шт.

25

K965257

STUD

- bearing caps, (Carraro 95319)

4шт.

26

K965259

RING

DOWEL - bearing caps, (Carraro 72235)

4шт.

K965250

NUT

NYLOC NUT - M14, (Carraro 22429)

4шт.

27

K965263

PLUG

LEVEL PLUG - (Carraro 92269)

1шт.

28

K965263

PLUG

DRAIN PLUG - (Carraro 92269)

1шт.

29

K965264

WASHER

THRUST WASHER - (Carraro 833852)

2шт.

30

K965265

BUSHING

PIVOT BUSH - (Carraro 101575)

2шт.

31

K965267

O-RING,0.07" Thk x 4.489" ID

"O" RING - pivot bush (Carraro 28103)

4шт.

32

K965363

FLANGE

COVER - (Carraro 98588)

1шт.

33

K965364

GASKET

- (Carraro 96932) (Cover to end plate)

1шт.

34

K965359

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

SETSCREW - M8 x 25 MM (Carraro 20781) (Cover to end plate)

6шт.

K965360

LOCK WASHER,M8

SPRING WASHER - , (Carraro 22856) M8

6шт.

35

K965361

OIL SEAL,35mm ID x 55mm OD x 10mm Thk

OIL SEAL - pinion shaft, (Carraro 25372)

1шт.

36

K965266

BUSHING

INNER SLEEVE - front pivot bush, (Carraro 101565)

1шт.

37

K965268

STEM

TRACK ROD - (Carraro 102318)

1шт.

38

K965269

BALL JOINT

- left-hand, (Carraro 98855)

1шт.

K965273

LOCK NUT

LOCKNUT - left-hand ball joint, (Carraro 81292)

1шт.

K965367

BALL

DIRT EXCLUDER - (Carraro 41432)

1шт.

K965366

RING

- dirt excluder, (Carraro 41433)

1шт.

NSS

NOT SOLD SEPARAT

WASHER - (Carraro 23075)

1шт.

39

K965270

BALL JOINT

- right-hand, (Carraro 98854)

1шт.

K965272

LOCK NUT

LOCKNUT - right-hand ball joint, (Carraro 22190)

1шт.

K965366

RING

- dirt excluder, (Carraro 41433)

1шт.

K965366

RING

- dirt excluder, (Carraro 41433)

1шт.

NSS

NOT SOLD SEPARAT

WASHER - (Carraro 23075)

1шт.

40

K965271

NUT

- ball joint to swivel housings, (Carraro 41431)

2шт.

K965274

PIN

SPLIT PIN - ball joint nuts, (Carraro 25567)

2шт.
