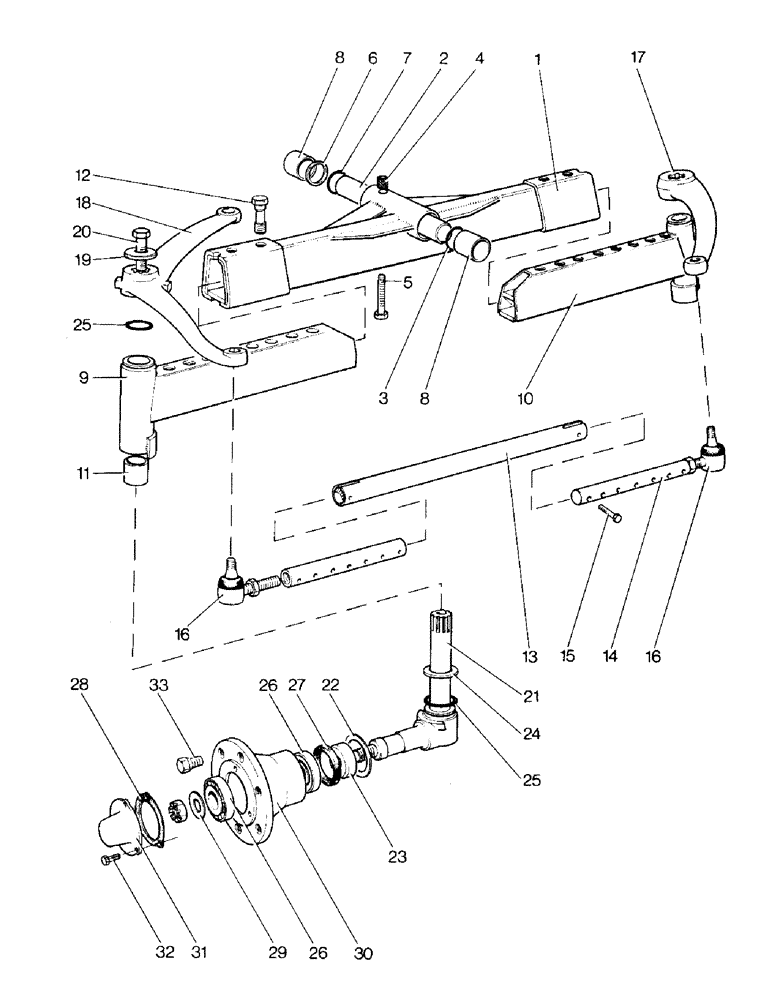

Запчасти Case IH 996 (H03-1) - STEERING AND FRONT AXLE, FRONT AXLE - ORCHARD TYPE - OPTIONAL EQUIPMENT, (NORTH AMERICA ONLY) Steering & Front Axle

1

K915420

BEAM

CENTRE BEAM

1шт.

2

K947516

TRUNNION

PIN

1шт.

3

K15596

RING,3.63mm Thk x 31.34mm ID

"O" RING - 1-1/4 in. internal dia.

1шт.

4

K913092

NUT

SCREWED BUSH - 3/8 UNC

1шт.

5

K600505

BOLT

- 3/8 UNC x 2-3/4 in.

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

1шт.

6

K915421

WASHER

THRUST WASHER - trunnion pin

2шт.

7

K15265

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

"O" RING - 2-1/8 in. internal dia.

2шт.

8

K15597

BUSHING

BUSH - main frame

4шт.

9

K963520

SHAFT

BEAM EXTENSION - left-hand, Includes: Ref. 11

1шт.

10

K963521

SHAFT

BEAM EXTENSION - right-hand, Includes: Ref. 11

1шт.

11

K11598

BUSHING

BUSH - beam extension

2шт.

12

K601308

BOLT

- 3/4 UNC x 3-1/8 in. special

4шт.

K626348

BELLEVILLE SPRING

SPRING WASHER - 3/4 in.

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

13

K912708

BUSHING

SPACER TUBE - 26-1/2 in., track rods

1шт.

14

K912709

ROD

TRACK ROD

2шт.

15

K600316

BOLT

- 5/16 UNC x 2-1/4 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

2шт.

16

K908071

BALL JOINT

BALL SOCKET ASSEMBLY

2шт.

K961701

BOOT

DIRT EXCLUDER

1шт.

K622500

LOCK NUT

LOCKNUT - 3/4 in., special

1шт.

231-2448

LOCK NUT,1/2"-20, GB

NYLOC NUT - 1/2 UNF

1шт.

17

K942525

LEVER

STEERING LEVER - right-hand

1шт.

18

K942524

LEVER

STEERING LEVER - left-hand

1шт.

Ref #18 - K913924 has hole .805/.803 for Steering Cylinder on Power Steering Models 12/15/95

1шт.

19

K15595

WASHER

- 5/8 in., special

2шт.

20

K601210

BOLT (SPREADER)

BOLT - 5/8 UNC x 2-3/4 in.

2шт.

K19485

WASHER

SPRING WASHER - 5/8 in.

2шт.

21

K963522

SHAFT

STUD AXLE ASSEMBLY, Includes: Ref. 22 & 23

2шт.

22

K906568

RING

DIRT EXCLUDER

1шт.

23

K906569

SLEEVE

- oil seal

1шт.

24

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

THRUST WASHER - stub axle

2шт.

25

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" RING - 2 in. internal dia.

4шт.

K962985

BEARING ASSY

BEARING AND SEAL PACK, Includes: Ref. 26 - 28 and split pin

2шт.

26

K620046

BEARING

TAPERED ROLLER BEARING

2шт.

27

K623450

OIL SEAL

OIL SEAL - 2-1/8 x 3 x 1/2 in.

1шт.

28

K15344

GASKET,0.25mm Thk

- hub cap

1шт.

K623603

PIN

SPLIT PIN - 5/32 x 1-1/8 in.

1шт.

29

K626673

WASHER

- 3/4 in., special

2шт.

K617157

NUT

SLOTTED NUT - 3/4 UNF

2шт.

30

K910176

HUB

FRONT HUB

2шт.

31

K908913

CAP

HUB CAP

2шт.

32

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.

6шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

33

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

WHEEL BOLT - 1/2 UNC x 1 in.

12шт.

K628086

PLUG,Cap, .848" OD

PLASTIC PLUG - beam extension holes

12шт.
