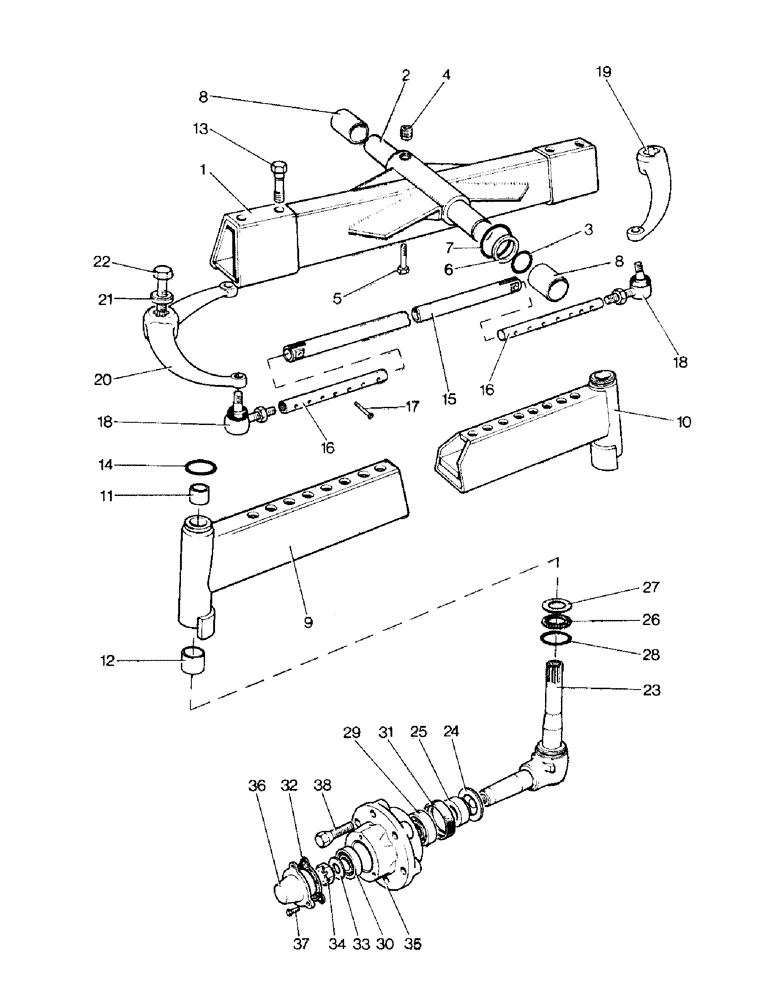

Запчасти Case IH 996 (H02-1) - STEERING AND FRONT AXLE, FRONT AXLE - 56 TO 80 IN. TRACK WIDTHS - OPTIONAL EQUIPMENT Steering & Front Axle

1

K926280

BEAM

CENTRE BEAM

1шт.

2

K947516

TRUNNION

PIN

1шт.

3

K15596

RING,3.63mm Thk x 31.34mm ID

"O" RING - 1-1/4 in. internal dia.

1шт.

4

K913092

NUT

SCREWED BUSH - 3/8 UNC

1шт.

5

K600505

BOLT

- 3/8 UNC x 2-3/4 in.

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

1шт.

6

K915421

WASHER

THRUST WASHER - trunnion pin

2шт.

7

K15265

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

"O" RING - 2-1/8 in. internal dia.

2шт.

8

K15597

BUSHING

BUSH - main frame

4шт.

9

K962815

BEAM

EXTENSION - left-hand, Includes: Ref. 11 & 12

1шт.

10

K962816

BEAM

EXTENSION - right-hand, Includes: Ref. 11 & 12

1шт.

11

K621331

BUSHING

- upper, beam extension

1шт.

12

K621367

BUSHING

BUSH - lower, beam extension

1шт.

13

K601661

BOLT

- 7/8 UNC x 3-3/4 in., special

4шт.

K626350

SPRING

WASHER - 7/8 in.

4шт.

14

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - 2-1/2 in. internal dia.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

15

K926288

TUBE

SPACER TUBE - 35-3/4 in, track rod

1шт.

16

K906210

ROD

TRACK ROD

2шт.

17

K600316

BOLT

- 5/16 UNC x 2-1/4 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

2шт.

18

K908071

BALL JOINT

BALL SOCKET ASSEMBLY

2шт.

K961701

BOOT

DIRT EXCLUDER

1шт.

K622500

LOCK NUT

LOCKNUT - 3/4 in., special

1шт.

231-2448

LOCK NUT,1/2"-20, GB

NYLOC NUT - 1/2 UNF

4шт.

19

K918933

LEVER

STEERING LEVER - right-hand

1шт.

20

K918932

LEVER

STEERING LEVER - left-hand

1шт.

21

K15595

WASHER

- 5/8 in., special

2шт.

22

K601213

BOLT

- 5/8 UNC x 3-1/4 in.

2шт.

K19485

WASHER

SPRING WASHER - 5/8 in.

2шт.

23

K962019

STEERING KNUCKLE

STUB AXLE ASSEMBLY, Includes: Ref. 24 & 25

2шт.

24

K910429

SPACER

DIRT EXCLUDER

1шт.

25

K910428

RING RACE

SLEEVE - oil seal

1шт.

26

K620180

THRUST BEARING

- stub axle

2шт.

27

K626692

DISC

WASHER - thrust bearing

4шт.

28

K24764

O-RING

"O" RING - 2-5/8 in. internal dia.

2шт.

K962986

SEAL

BEARING AND SEAL PACK, Includes: Ref. 29 - 32 and split pin

2шт.

29

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING - inner

1шт.

30

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

- outer

1шт.

31

K623419

OIL SEAL

OIL SEAL - 2-3/4 x 3-3/4 x 1/2 in.

1шт.

32

K15344

GASKET,0.25mm Thk

- hub cap

1шт.

K623603

PIN

SPLIT PIN - 5/32 x 1-1/8 in.

1шт.

33

K626673

WASHER

- 3/4 in., special

2шт.

34

K617157

NUT

SLOTTED NUT - 3/4 UNF

2шт.

35

K916377

HUB

FRONT HUB

2шт.

36

K908913

CAP

HUB CAP

2шт.

37

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.

6шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

38

K600875

BOLT

WHEEL BOLT - 1/2 UNC x 1-7/8 in.

12шт.

K628089

PLUG

PLASTIC PLUG - beam extension holes

12шт.
