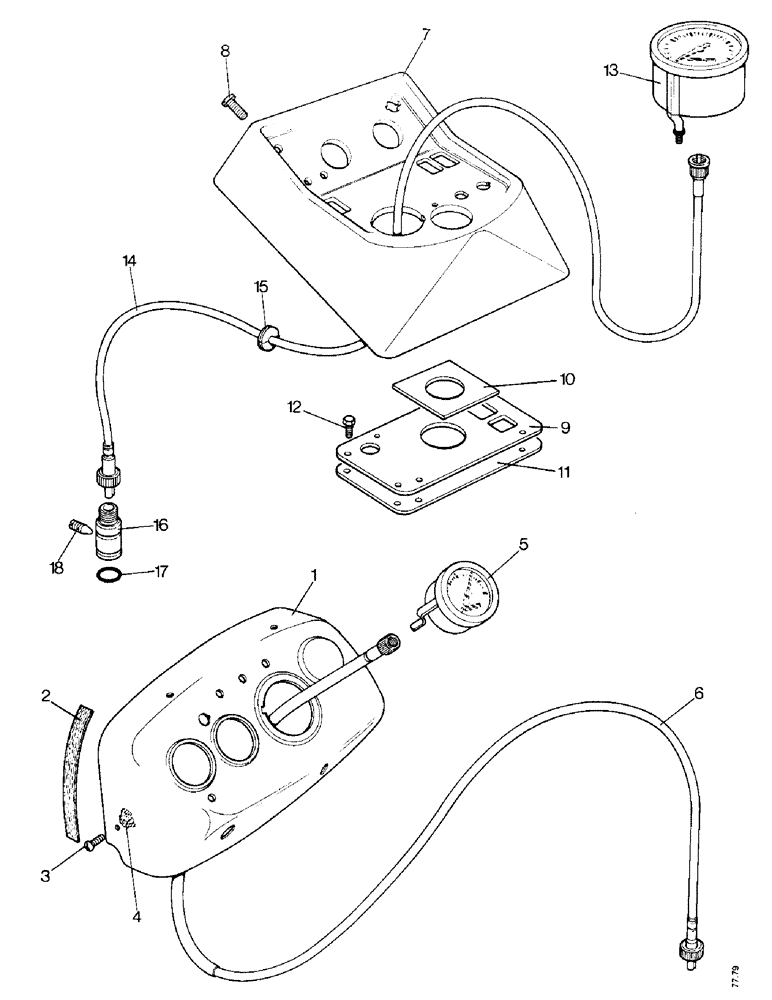

Запчасти Case IH 996 (F04-1) - ENGINE CONTROL AND INSTRUMENTS, INSTRUMENT PANEL AND ENGINE SPEED INDICATOR Engine Controls & Instruments

1a

K948116

PANEL

INSTRUMENT PANEL (990, 995, 996)

1шт.

1b

K954516

PANEL

INSTRUMENT PANEL (990G, 995G, 996G)

1шт.

2a

K913391

STRIP

SEATING STRIP - 9 in. (990, 995, 996, 990G, 995G, 996G)

2шт.

2b

K946160

STRIP

SEATING STRIP - 4 in. (990, 995, 996, 990G, 995G, 996G)

2шт.

3a

K615403

SCREW

- no. 10 UNF x 3/8 in. (990, 995, 996, 990G, 995G, 996G)

2шт.

K615404

SCREW

- no. 10 NF x 1/2 in. (990, 995, 996, 990G, 995G, 996G)

2шт.

K626572

WASHER

LOCKWASHER - 3/16 in. (990, 995, 996, 990G, 995G, 996G)

4шт.

4

K624583

NUT

CAPTIVE NUT - no. 10 NF (990, 995, 996, 990G, 995G, 996G)

4шт.

5a

K942232

ELECTRICAL GAUGE

ENGINE SPEED INDICATOR - AC-Delco (Must be used together) (990, 995, 996, 990G, 995G, 996G)

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, up to S/N 11089150

1шт.

6a

K948533

CABLE

- inner and outer, AC-Delco (Must be used together) (990, 995, 995, 990G, 995G, 996G)

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, up to S/N 11089150

1шт.

K948534

CABLE

- inner, 49-3/4 in., AC-Delco, for K48533 (Must be used together) (990, 995, 996, 990G, 995G, 996G)

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, up to S/N 11089150

1шт.

5b

K955273

SPEEDOMETER

ENGINE SPEED INDICATOR - lcknield (Must be used together) (990, 995, 996, 990G, 995G, 996G)

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, S/N 11089150 and after

1шт.

6b

K955274

CABLE

- inner and ouer, 48-1/2 in., lcknield (Must be used together) (990, 995, 996, 990G, 995G, 996G)

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, S/N 11089150 and after

1шт.

K955291

CABLE

- inner, for K955274 (Must be used together) (990, 995, 996, 990G, 995G, 996G)

1шт.

Used on models 990, 990G, 995, 995G, 996, 996G, S/N 11089150 and after

1шт.

7

K950368

PANEL

INSTRUMENT PANEL (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

8

K614946

SCREW,Pan, #10 - 32 x 3/4"

- no. 10 UNF x 3/4 in. (Panel to console) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

K626340

RING

SPRING WASHER - 3/16 in. (Panel to console) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

9

K949467

COVER

PLATE (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

10

K952780

SEAL

- cover plate (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

11

K949468

GASKET

(Plate to console) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

12

K602735

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (Plate to console) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

6шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Plate to console) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

6шт.

13a

K952148

GAUGE

ENGINE SPEED INDICATOR - Smiths (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

14a

K954957

CABLE

- inner and outer, Smiths, 58-1/8 in. not supplied separately (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11085552 and after

1шт.

14b

K952130

CABLE

- inner and outer, Smiths (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11085552

1шт.

K952131

CABLE

- inner, 56-1/4 in., Smiths, for K952130 (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11085552

1шт.

15

K627704

GROMMET

- 1 in. dia. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

16

K928253

CONNECTOR, ELEC

CONNECTOR - 22 MM, drive cable

1шт.

17

K16351

O-RING,3.53mm Thk x 24.99mm ID

"O" RING - 1 in. internal dia. (Connector to cylinder block)

2шт.

18

K928254

SCREW,7/16" - 14 x 1 5/16"

LOCATING SCREW - 7/16 UNC (Connector to cylinder block)

1шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Connector to cylinder block)

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT (Connector to cylinder block)

1шт.

K628005

PLUG

PLASTIC PLUG - 1-1/32 in. (Instrument panel apertures) (990, 995, 996, 990G, 995G, 996G)

1шт.

K627998

PLUG

PLASTIC PLUG - 25/32 in. (Instrument panel apertures) (990, 995, 996, 990G, 995G, 996G)

1шт.

K627711

PLUG

PLASTIC PLUG - 17/32 in. (Instrument panel apertures) (990, 995, 996, 990G, 995G, 996G)

1шт.

K627713

PLUG

PLASTIC PLUG - 7/32 in. (Instrument panel apertures) (990, 995, 996, 990G, 995G, 996G)

1шт.
