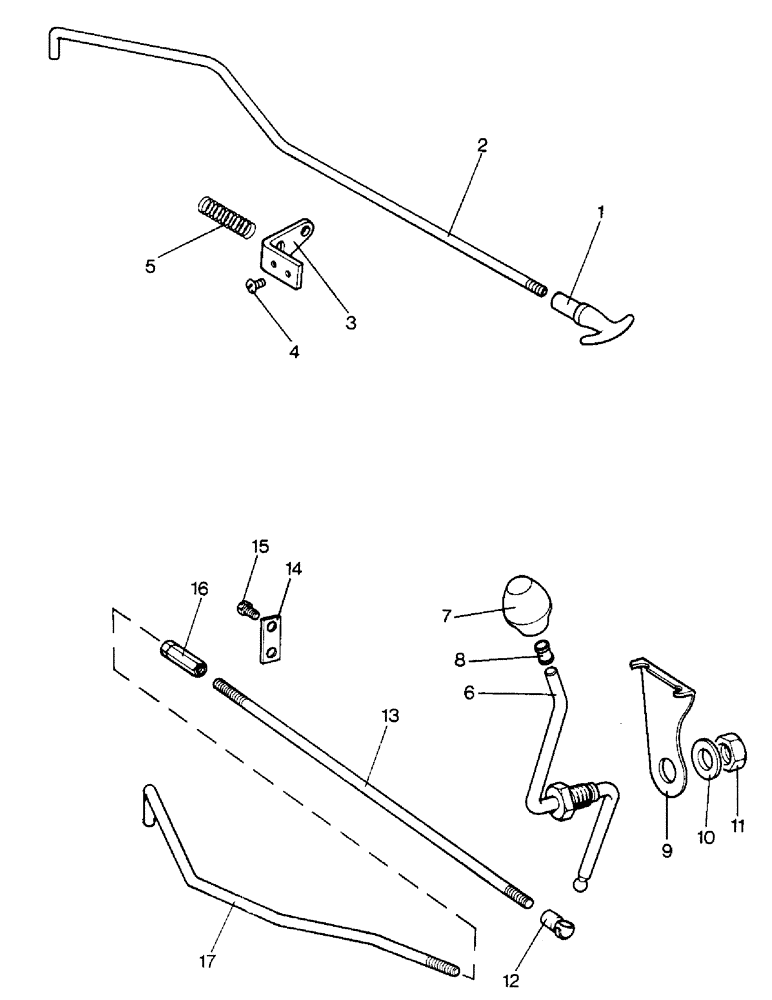

Запчасти Case IH 996 (F03-1) - ENGINE CONTROL AND INSTRUMENTS, ENGINE STOP CONTROLS Engine Controls & Instruments

1

K947418

HANDLE

KNOB - stop control (990, 990G, 995, 995G, 996, 996G)

1шт.

K12939

WASHER

- 3/16 in. (990, 990G, 995, 995G, 996, 996G)

1шт.

K617080

NUT

- no. 10 UNF (990, 990G, 995, 995G, 996, 996G)

1шт.

2

K940785

ROD

- stop control (990, 990G, 995, 995G, 996, 996G)

1шт.

3

K942321

GUIDE

BRACKET (990, 990G, 995, 995G, 996, 996G)

1шт.

4

K614984

SCREW

- no. 10 UNF x 1/2 in. (Bracket to tank support) (990, 990G, 995, 995G, 996, 996G)

2шт.

K626340

RING

SPRING WASHER - 3/16 in. (Bracket to tank support) (990, 990G, 995, 995G, 996, 996G)

2шт.

K617080

NUT

- no. 10 UNF (Bracket to tank support) (990, 990G, 995, 995G, 996, 996G)

2шт.

5

K24780

SPRING

- stop control return (990, 990G, 995, 995G, 996, 996G)

1шт.

K626310

WASHER

- 3/16 in. (Rod to pump) (990, 990G, 995, 995G, 996, 996G)

2шт.

K19520

PIN

SPLIT PIN - 1/16 x 3/8 in. (Rod to pump) (990, 990G, 995, 995G, 996, 996G)

2шт.

6

K950709

LEVER ASSY.

HAND LEVER - stop control (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

7

K951154

KNOB

- stop lever (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

8

K628473

RING

RETAINING RING - knob to lever (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

9

K950713

QUADRANT

- stop lever (990Q, 990SK, 995Q, 995SK, 996Q, 995SK)

1шт.

10

K626759

WASHER

- 5/8 in. special (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

11

K622810

NUT

- 5/8 UNF (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

12

K621901

BALL JOINT

SOCKET END - no. 10 UNF (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

K617080

NUT

- no. 10 UNF (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

13

K950719

ROD

- lever to sleeve (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

14

K950728

GUIDE

BRACKET - stop rod (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

15

K603924

SCREW

- 1/4 UNC x 1/2 in. (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

16

K950729

SLEEVE

ADJUSTING SLEEVE - no. 10 UNF (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

K617080

NUT

- no. 10 UNF (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

K617290

NUT

- no. 10 UNF, left-hand (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

17

K950718

ROD

- sleeve to injection pump (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

K19470

WASHER

- 1/4 in. (Rod to pump) (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

2шт.

K623605

PIN

SPLIT PIN - 1/16 x 1/2 in. (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

2шт.
