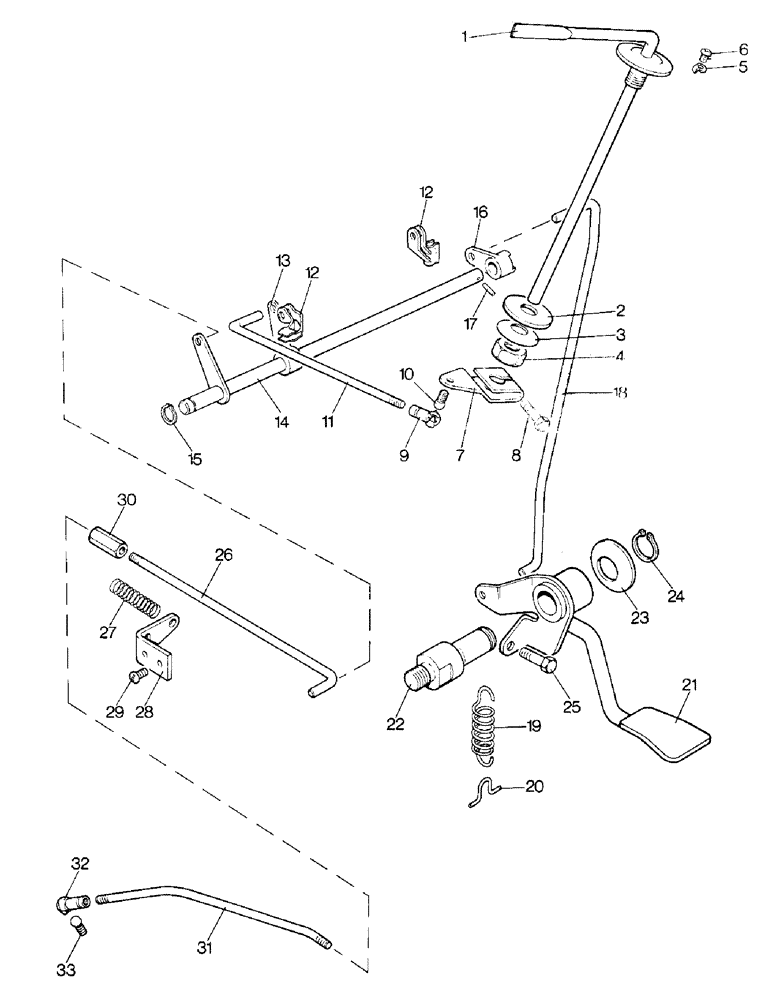

Запчасти Case IH 996 (F01-1) - ENGINE CONTROL AND INSTRUMENTS, ENGINE THROTTLE CONTROLS, 990, 995, 996, 990G, 995G, 996G Engine Controls & Instruments

1

K913191

LEVER

HAND LEVER

1шт.

2

K85546

DISC

FRICTION DISC

1шт.

3

K626740

WASHER

BELLEVILLE WASHER - 5/8 in.

1шт.

K19475

WASHER

- 5/8 in.

1шт.

4

K623003

NUT

NYLOC NUT - 5/8 BSF

1шт.

5

K910157

WASHER

STOP PAD

2шт.

6

K605633

SCREW

- 1/4 UNC x 1/2 in.

2шт.

K607043

NUT

- 1/4 UNC

2шт.

K626552

WASHER

SHAKEPROOF WASHER - 1/4 in.

2шт.

7

K89372

LEVER

1шт.

8

K600144

BOLT

- 1/4 UNC x 1-3/8 in.

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

1шт.

K607043

NUT

- 1/4 UNC

1шт.

9

K621902

END ASSY.

SOCKET END - 1/4 BSF

1шт.

10

K621906

PIN

BALL END - 1/4 BSF

1шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in.

1шт.

K19401

NUT

- 1/4 BSF

1шт.

11

K943372

ROD

- hand lever to cross shaft

1шт.

12

K908778

CLIP

-, Serial Range: rod-lever

3шт.

13

K928177

LEVER

1шт.

14

K940702

SHAFT

CROSS SHAFT

1шт.

K626267

SHIM,.030" Thk

1шт.

K19472

WASHER

- 3/8 in., special

1шт.

15

K621587

RING, SNAP

CIRCLIP - 3/8 in., external

1шт.

16

K928178

LEVER

1шт.

17

K623747

SPLIT PIN/SAFETY PIN

PIN - 5/32 x 3/4 in.

2шт.

18

K943373

ROD

- cross, Serial Range: shaft-pedal

1шт.

K19470

WASHER

- 1/4 in.

1шт.

K19520

PIN

SPLIT PIN - 1/16 x 3/8 in.

1шт.

19

K624940

SPRING

- pedal return

1шт.

20

K942739

SPRING

ANCHOR - return spring

1шт.

21

K944010

PEDAL

ACCELERATOR PEDAL

1шт.

22

K944009

PIN

PIVOT PIN - pedal

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K626440

WASHER

COPPER WASHER - 1/4 in.

1шт.

K626738

WASHER

DISTANCE WASHER

1шт.

23

K626716

WASHER

- 7/8 in., special

1шт.

24

K34454

RING, SNAP

CIRCLIP - 7/8 in. external

1шт.

25

K610252

BOLT

- special, 1/4 UNF x 1-1/16 in.

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4 UNF

1шт.

26

K940707

ROD

-, Serial Range: crosshaft-sleeve

1шт.

27

K625260

SPRING

- rod return

1шт.

28

K942321

GUIDE

BRACKET - throttle and stop rods

1шт.

29

K614984

SCREW

- no. 10 UNF x 1/2 in. (Bracket to tank support)

2шт.

K626340

RING

SPRING WASHER - 3/16 in. (Bracket to tank support)

2шт.

K617080

NUT

- no. 10 UNF (Bracket to tank support)

2шт.

30

K38598

SLEEVE

ADJUSTING SLEEVE - 1/4 BSF

1шт.

K12285

NUT

- 1/4 BSF, left-hand

1шт.

31

K89371

ROD

-, Serial Range: sleeve-pump

1шт.

32

K621902

END ASSY.

SOCKET END - 1/4 BSF

1шт.

33

K621906

PIN

BALL END - 1/4 BSF, pump lever

1шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in.

1шт.

K19041

BEARING

NUT - 1/4 BSF

2шт.
