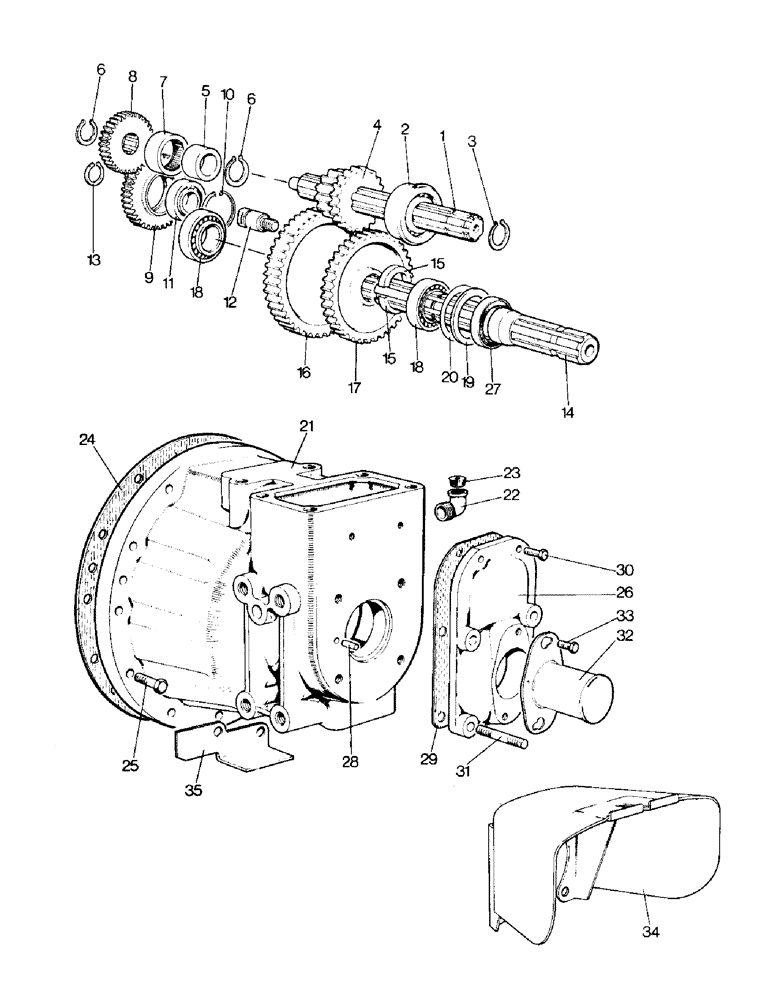

Запчасти Case IH 996 (J02-1) - PTO AND BELT PULLEYS, POWER TAKE-OFF UNIT Auxiliary Drive Units

K962659

PTO

UNIT - complete (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

1

K906735

DRIVE SHAFT

DRIVESHAFT

1шт.

2

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

- with snap ring

1шт.

3

K621535

RING, SNAP

CIRCLIP - 1-3/64 in. external

2шт.

4

K906688

GEAR

SPEED CHANGE PINION - (13/19 teeth)

1шт.

5

K906693

RING RACE

INNER RACE - roller bearing

1шт.

6

K621535

RING, SNAP

CIRCLIP - 1-3/64 in. external

2шт.

7

K620266

NEEDLE BEARING

NEEDLE ROLLER BEARING

1шт.

8

K908094

GEAR

DRIVE GEAR - hydraulic pump, (29 teeth)

1шт.

9

K923442

GEAR

IDLER GEAR - hydraulic pump

1шт.

10

K621436

RING, SNAP

CIRCLIP - 62 MM, internal

2шт.

11

K620102

BEARING, BALL

BALL BEARING

1шт.

12

K923441

PIN

SHAFT - idler gear

1шт.

K626200

SHIM,.002" Thk

1шт.

K626201

SHIM,.003" Thk

1шт.

K626202

SHIM,.005" Thk

1шт.

K626203

SHIM,.010" Thk

1шт.

13

K11128

CIRCLIP

- 1 in., external

1шт.

14

K962826

SHAFT

DRIVEN SHAFT - with split ring (replaced K96226), Includes: Ref. 15

1шт.

15

K923433

RING

SPLIT RING - halves

2шт.

16

K923434

GEAR

- low speed, (44 teeth)

1шт.

17

K906689

GEAR

- high speed, (38 teeth)

1шт.

18

K620046

BEARING

TAPER ROLLER BEARING

2шт.

19

K923435

WASHER

THRUST RING

1шт.

20a

K923436

SHIM

- 0.002 in.

1шт.

20b

K923437

SHIM

- 0.003 in.

1шт.

20c

K923438

SHIM

- 0.005 in.

1шт.

20d

K923439

SHIM

- 0.010 in.

1шт.

20e

K923440

SHIM

- 0.020 in.

1шт.

21

K948929

CASE

1шт.

22

K622127

FITTING

ELBOW - 1 in. BSP (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

23

K12362

PLUG

- 1 in. BSP

1шт.

24

K922591

GASKET

(Case to rear axle)

1шт.

25

K600605

BOLT

- 7/16 UNC x 1-7/8 in. (Case to rear axle)

11шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Case to rear axle)

11шт.

26

K906686

COVER

END COVER

1шт.

27

K11119

OIL SEAL

OIL SEAL - 1-5/8 x 2-1/2 x 5/8 in.

1шт.

28

K14577

DOWEL

- 1/4 x 9/16 in.

2шт.

29

K924217

GASKET

1шт.

30

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

K15498

SEALING WASHER

ING WASHER - 5/16 in.

1шт.

31a

K608311

STUD

- 7/16 UNC x 2-5/16 in. (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

31b

K907546

STUD

- 7/16 UNC, belt pulley fixing

4шт.

K627060

BUSHING

DISTANCE PIECE (990G, 995G, 996G)

4шт.

280717

NUT,7/16"-14, G5

4шт.

K626344

WASHER, LOCK

SPRING WASHER - 7/16 in.

4шт.

32a

K909111

COVER

- PTO shaft, except Finland

1шт.

32b

K914980

COVER - PTO shaft, Finland only (990, 995, 996)

1шт.

K609446

PLUG

- 5/8 UNC, special (PTO case if drawbar not fitted) (990, 995, 996)

4шт.

K609446

PLUG

- 5/8 UNC, special (PTO case if drawbar not fitted) (990G, 995G, 996G)

1шт.

K619506

WASHER

COPPER WASHER - 5/8 in. (PTO case if drawbar not fitted) (990, 995, 996)

4шт.

K619506

WASHER

COPPER WASHER - 5/8 in. (PTO case if drawbar not fitted) (990G, 995G, 996G)

1шт.

K628092

PLUG,Cap, .547" OD

PLASTIC PLUG - 1/2 in. dia. (PTO case if drawbar not fitted) (990, 995, 996) (replaced K628096)

4шт.

33

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in. (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

K626682

WASHER

- 5/16 in. (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

34

K906893

GUARD

- PTO shaft (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

35

K928304

SHIM

GUARD - hydraulic filter switch

1шт.
