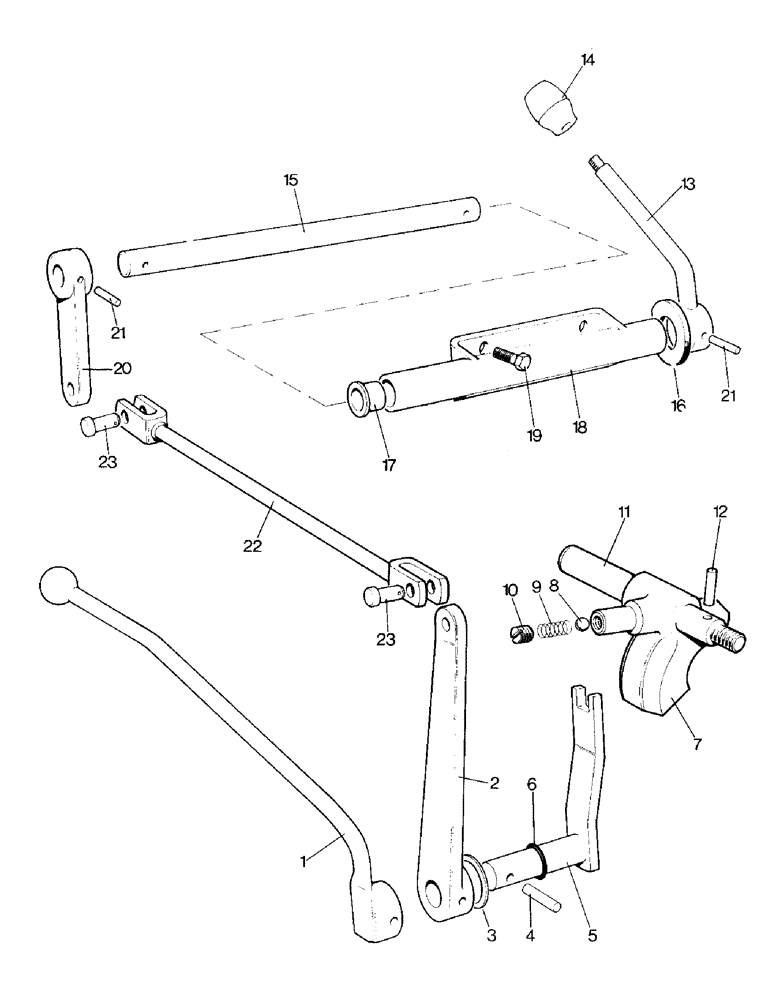

Запчасти Case IH 996 (J01-1) - PTO AND BELT PULLEYS, POWER TAKE-OFF CONTROLS Auxiliary Drive Units
№
Артикул
Название
Примечание
Количество
1a
K943716
LEVER
OPERATING LEVER (990, 995, 996)
1шт.
1b
K916574
LEVER
OPERATING LEVER (990G, 995G, 996G)
1шт.
2
K952474
LEVER
OPERATING LEVER (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
K627120
BUSHING
DISTANCE PIECE - lever shaft (990G, 995G, 996G)
1шт.
3
K916582
SHIM
- lever shaft
1шт.
4
K623726
PIN
- 1/4 x 1-1/2 in.
1шт.
5
K916575
SELECTOR
LEVER AND SHAFT
1шт.
6
K24555
O-RING,0.737" ID x 0.943" OD x 0.103"
"O" RING - 3/4 in. internal dia.
1шт.
7
K906701
SELECTOR
FORK
1шт.
8
K17063
BALL
STEEL BALL - 1/4 in.
1шт.
9
K24831
SPRING
- detent
1шт.
10
K606021
SCREW
GRUBSCREW - 5/16 UNC
1шт.
11
K942469
SELECTOR
ROD
1шт.
12
K906700
PIN
RETAINING PIN - selector rod
1шт.
13
K951627
LEVER
HAND LEVER (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
14
K950493
KNOB
- hand lever (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
15
K951263
SHAFT
CROSS SHAFT (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
16
K952800
SEAL
RUBBER SEAL (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
17
K628757
BUSHING
PLASTIC BUSH (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
2шт.
18
K951640
SUPPORT
BRACKET - cross shaft (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
19
K602983
SCREW
SETSCREW - 3/8 UNC x 7/8 in. (Bracket to cab) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
3шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in. (Bracket to cab) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
3шт.
280136
NUT,3/8"-16, G8
(Bracket to cab) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK) 3/8"-16, G8
3шт.
20
K951267
SHAFT
LEVER - cross shaft (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
21
K623746
PIN
- 3/16 x 1-1/4 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
2шт.
22
K951268
ROD
OPERATING ROD (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
23
K14227
PIN
CLEVIS PIN - 3/8 x 1-1/16 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
2шт.
K950865
CLIP
SPRING CLIP (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
2шт.
Выбрано товаров: 28
