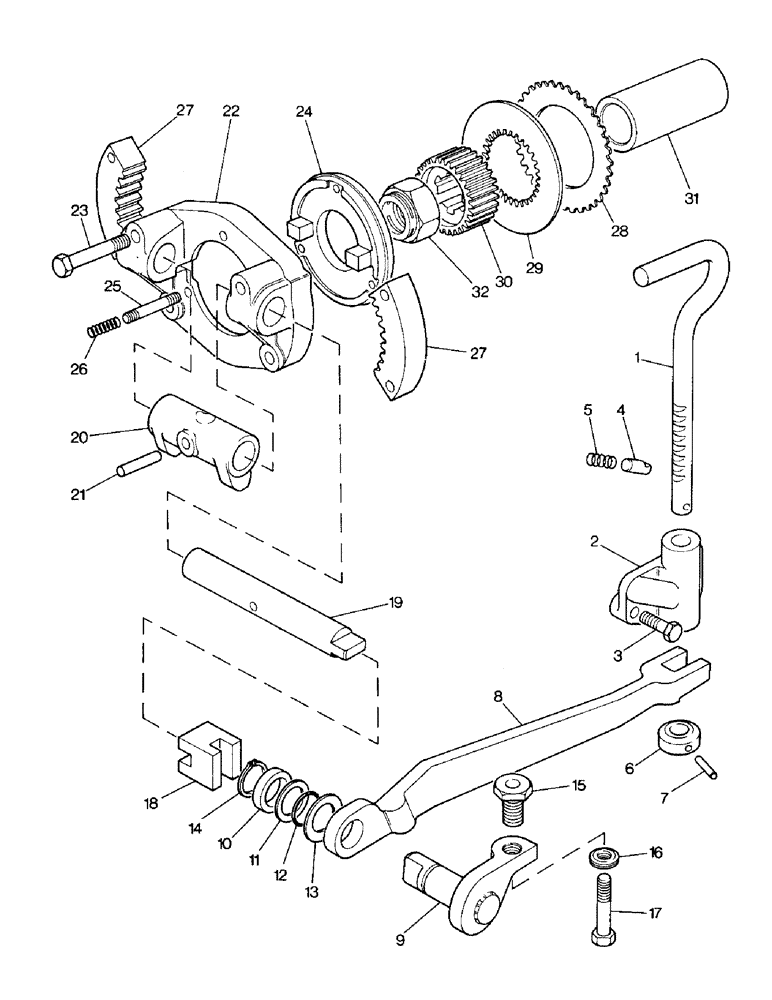

Запчасти Case IH 996 (G05-1) - BRAKES, TRANSMISSION BRAKE, 990G, 995G, 996G (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1
K912999
LEVER
HAND LEVER - transmission brake
1шт.
2
K912998
HOUSING
- hand lever
1шт.
3
K602806
BOLT
- 5/16 UNC x 1-1/8 in. (Housing to main frame)
3шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (Housing to main frame)
3шт.
4
K909588
PAWL
1шт.
5
K14651
SPRING
- pawl
1шт.
6
K904201
COLLAR - hand lever
1шт.
7
K11267
PIN
- 1/4 x 2-1/4 in.
1шт.
8
K929662
LEVER
OPERATING LEVER
1шт.
9
K943974
SHAFT
OPERATING SHAFT
1шт.
10
K907296
BUSHING
DISTANCE PIECE
1шт.
11a
K917296
SHIM
- 0.010 in.
1шт.
11b
K948101
SHIM
- 0.030 in.
1шт.
11c
K948102
SHIM
- 0.060 in.
1шт.
12
K16351
O-RING,3.53mm Thk x 24.99mm ID
"O" RING - 1 in. external dia.
1шт.
13
K626919
SHIM,.010" Thk
1шт.
14
K11128
CIRCLIP
- 1 in. external
1шт.
15
K904361
BUSHING
ADJUSTING BUSH - 5/8 BSF
1шт.
K19445
NUT
LOCKNUT - 5/8 BSF
1шт.
16
K626723
BELLEVILLE WASHER
BELLEVILLE WASHER - 3/8 in.
6шт.
17
K600563
BOLT
- 3/8 UNC x 2-1/4 in.
1шт.
K607327
NUT
NYLOC NUT - 3/8 UNC
1шт.
18
K949669
COUPLING, BREAK AWAY
COUPLING - camshaft
1шт.
19
K912996
SHAFT
SPINDLE - camshaft
1шт.
20
K912997
CAMSHAFT
1шт.
21
K19566
PIN
- 3/8 x 1-3/4 in.
1шт.
22
K944568
BRACKET
PIVOT BRACKET
1шт.
23a
K600414
BOLT
- 3/8 UNC x 2-3/4 in. (Bracket to gearbox end plate)
2шт.
23b
K600420
BOLT
- 3/8 UNC x 4 in. (Bracket to gearbox end plate)
2шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in. (Bracket to gearbox and plate)
4шт.
24
K944569
BLOCK
THRUST BLOCK
1шт.
25
K608007
STUD
- 1/4 UNC x 2-5/16 in.
3шт.
K19470
WASHER
- 1/4 in.
3шт.
K607300
NUT
NYLOC NUT - 1/4 UNC
3шт.
26
K625107
SPRING
3шт.
27
K944566
CLUTCH
SEGMENT
2шт.
28
K912992
DISC
- stationary
5шт.
29
K912991
DISC
- revolving
5шт.
30
K944567
GEAR
HUB - brake discs
1шт.
31
K929659
BUSHING
SPACER - pinion shaft
1шт.
32
K622803
NUT
NYLOC NUT - 1-1/8 BSF, left-hand
1шт.
Выбрано товаров: 41
