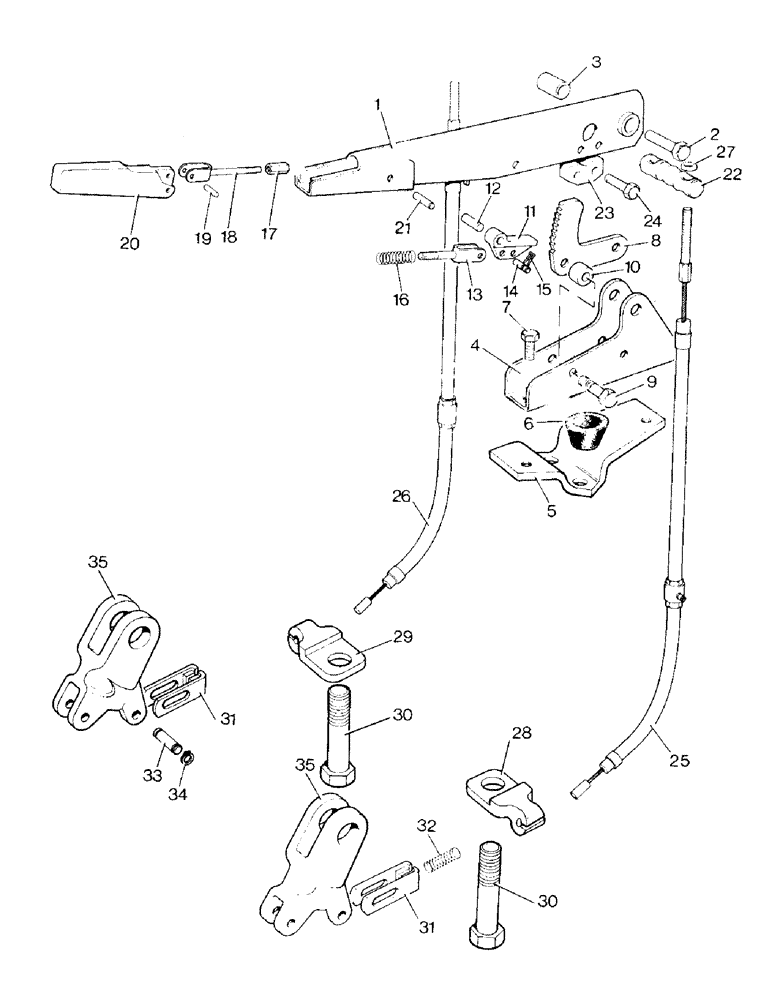

Запчасти Case IH 996 (G04-1) - BRAKES, LINKAGE FOR HAND BRAKE, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK (5.1) - BRAKES

1a

K955643

LEVER

HAND LEVER

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11088300 and after

1шт.

1b

K950579

LEVER

HAND LEVER

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11088300

1шт.

2

K600526

BOLT

- 3/8 UNC x 1-7/8 in. (Hand, Serial Range: lever-bracket)

1шт.

3

K627052

BUSHING

DISTANCE PIECE (Hand, Serial Range: lever-bracket)

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Hand, Serial Range: lever-bracket)

1шт.

280136

NUT,3/8"-16, G8

(Hand lever to bracket) 3/8"-16, G8

1шт.

4a

K955244

BRACKET

SUPPORT BRACKET - hand lever

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11088300 and after

1шт.

4b

K951560

BRACKET

SUPPORT BRACKET - hand lever

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11088300

1шт.

5

K949506

SHIM

RETAINING PLATE

1шт.

6

K949507

SEAL

RUBBER SEAL, Serial Range: (Bracket-plate)

2шт.

7

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Bracket to plate)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Bracket-plate)

2шт.

8

K949487

RATCHET

2шт.

9

K600369

BOLT

- 5/16 UNC x 1-3/4 in., special (Ratchet to support bracket)

2шт.

10

K627084

BUSHING

DISTANCE PIECE (Ratchet to support bracket)

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Ratchet to support bracket)

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Ratchet to support bracket)

2шт.

11

K200038

PAWL

- replaces K949500

1шт.

12

K623924

SPRING

PIN - 1/4 x 7/8 in., replaces K623772

1шт.

13

K950033

ROD

PULL ROD - short

1шт.

14

K949499

PIN

- grooved

1шт.

15

K621572

RING, SNAP

SPRING CLIP

1шт.

16

K625099

SPRING

1шт.

K617080

NUT

- no. 10 UNF

1шт.

17

K617286

NUT

ADJUSTING SLEEVE - no. 10 UNF

1шт.

18

K950577

ROD

PULL ROD - long

1шт.

19

K949498

PIN

- plain

1шт.

20

K950026

LEVER

RELEASE LEVER

1шт.

21

K623773

PIN

- 3/16 x 7/8 in.

1шт.

22

K949501

BAR

BALANCE BAR

1шт.

23

K949502

SUPPORT

BLOCK

1шт.

24

K602739

SCREW

SETSCREW - 1/4 UNC x 1-1/8 in. (Block to hand lever)

2шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in. (Block to hand lever)

2шт.

K607043

NUT

- 1/4 UNC (Block to hand lever)

2шт.

25

K949505

BRAKE

CABLE - inner and outer, left-hand

1шт.

26

K949504

BRAKE

CABLE - inner and outer, right-hand

1шт.

27

K949503

WASHER

SPHERICAL WASHER - 5/16 in.

2шт.

K617285

SPECIAL NUT

- 5/16 UNF special

2шт.

K622807

NUT

LOCKNUT - 5/16 UNF

2шт.

28

K948983

BRACKET

ANCHOR BRACKET - left-hand cable

1шт.

29

K948982

BRACKET

ANCHOR BRACKET - right-hand cable

1шт.

30

K601411

BOLT

- 3/4 UNC x 3-1/4 in., Serial Range: (Brackets-axle)

2шт.

K913121

WASHER

TABWASHER, Serial Range: (Brackets-axle)

2шт.

31

K949523

FORK

END - brake cable

2шт.

32

K625259

SPRING

RETURN SPRING - cable

2шт.

33

K949552

PIN

- grooved

2шт.

K626682

WASHER

- 5/16 in.

4шт.

34

K621482

RING, SNAP

CIRCLIP - 5/16 in. external

4шт.

35

K948977

LEVER

CAM LEVER

2шт.
