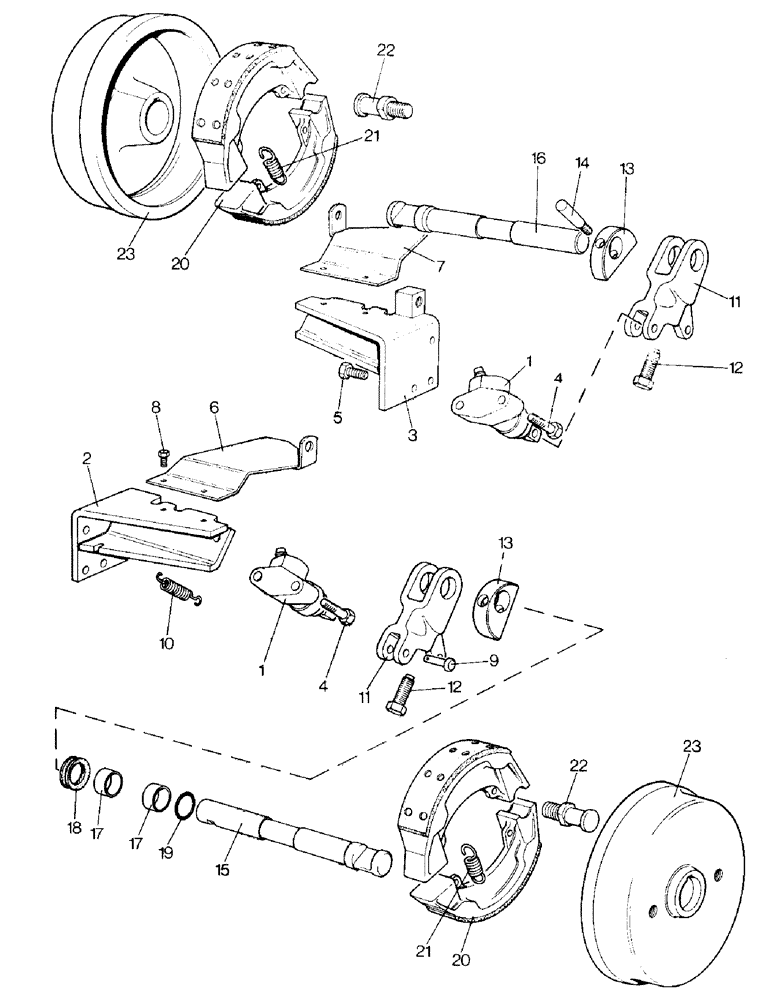

Запчасти Case IH 996 (G03-1) - BRAKES, SLAVE CYLINDERS AND BRAKE SHOES, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK (5.1) - BRAKES

1

K950557

CYLINDER

SLAVE CYLINDER - Girling 73067020

2шт.

K964534

SCREW,M12 x 1

BLEED SCREW - 12 MM

2шт.

K964573

SEAL KIT

SEAL KIT - slave cylinder, mineral oil seals

2шт.

2

K950457

MOUNTING PARTS

MOUNTING BRACKET - left-hand cylinder

1шт.

3

K950456

MOUNTING PARTS

MOUNTING BRACKET - right-hand cylinder

1шт.

4

K600321

BOLT

- 5/16 UNC x 2 in. (Cylinders to mounting brackets)

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Cylinders to mounting brackets)

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Cylinders to mounting brackets)

4шт.

5

K603051

SCREW

SETSCREW - 7/16 UNC x 1-1/8 in., Serial Range: (Brackets-frame)

6шт.

K626344

WASHER, LOCK

SPRING WASHER - 7/16 in., Serial Range: (Brackets-frame)

6шт.

6

K951647

GUARD

SHIELD - left-hand brake cylinder

1шт.

7

K951644

GUARD

SHIELD - right-hand brake cylinder

1шт.

8

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2 in. (Shields to brackets)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Shields-brackets)

4шт.

9

K625955

PIN

CLEVIS PIN - 5/16 x 1-13/16 in.

2шт.

K626682

WASHER

- 5/16 in.

2шт.

K11934

PIN

SPLIT PIN - 1/16 x 1/2 in.

2шт.

10

K624946

SPRING

RETURN SPRING - cam lever

2шт.

11

K948977

LEVER

CAM LEVER

2шт.

12

K951528

SCREW

ADJUSTER BOLT - 5/8 UNC

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

13

K948979

ADJUSTER

CAM

2шт.

14

K609425

LARGE PIN

COTTER PIN - 3/8 UNC

2шт.

K19472

WASHER

- 3/8 in.

2шт.

K19848

SPRING WASHER - 3/8 in.

2шт.

280136

NUT,3/8"-16, G8

2шт.

15

K948980

ADJUSTER

BRAKE CAMSHAFT - left-hand

1шт.

16

K948981

CAMSHAFT

BRAKE CAMSHAFT - right-hand

1шт.

17

K30835

BUSHING

BUSH - axle case

4шт.

18

K85417

SEAL

DIRT EXCLUDER

2шт.

19

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

"O" RING - 1 in. external dia.

2шт.

20

K921494

BRAKE SHOE

- with lining

4шт.

K962266

KIT

BRAKE LINING - (4) and rivet pack

1шт.

21

K63462

SPRING

- brake shoes

4шт.

22

K926164

PIN

FULCRUM PIN

2шт.

K19485

WASHER

SPRING WASHER - 5/8 in.

2шт.

23

K917989

BRAKE

DRUM

2шт.
