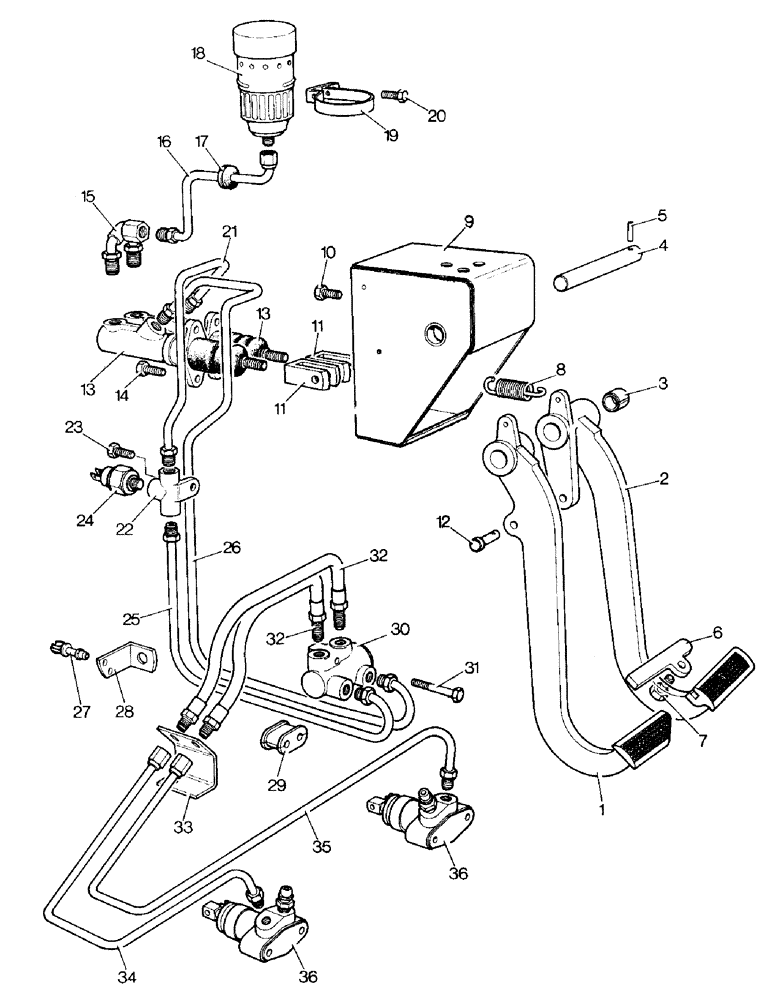

Запчасти Case IH 996 (G02-1) - BRAKES, HYDRAULIC BRAKING SYSTEM, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK (5.1) - BRAKES

1

K949254

BRAKE

PEDAL - left-hand

1шт.

2

K949255

BRAKE

PEDAL - right-hand

1шт.

3

K628754

BUSHING

BUSH - brake pedals

4шт.

4

K950568

PIN

PIVOT PIN - pedals

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, 1/8" x 1 1/8", Type A

1шт.

6

K948974

LATCH

LOCKING LATCH - brake pedals

1шт.

7

K600500

SCREW

BOLT - 3/8 UNC, special

1шт.

K626700

WASHER

SPRING WASHER - 3/8 in.

1шт.

8

K624947

SPRING

RETURN SPRING

2шт.

9

K949253

SUPPORT

BRACKET - pedals

1шт.

10

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Bracket to cab)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Bracket-cab)

2шт.

K626682

WASHER

- 5/16 in.

1шт.

11

K622205

FORK

END - 5/16 UNC

2шт.

425-115

NUT,5/16"-24, G5

- 5/16 UNC

2шт.

12

K625954

PIN

CLEVIS PIN - 5/16 x 1-3/16 in.

2шт.

K623605

PIN

SPLIT PIN - 1/16 x 1/2 in.

2шт.

13

K950544

CYLINDER,36.32mm Stroke

MASTER CYLINDER - Girling 73067017

2шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8 in. (Cylinders to cab)

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Cylinders-cab)

4шт.

15

K951958

PIPE

- master cylinder inlet

1шт.

16a

K951369

PIPE

- reservoir to master cylinders (990Q, 995Q, 996Q)

1шт.

16b

K954504

PIPE

- reservoir to master cylinder (990SK, 995SK, 996SK)

1шт.

17

K627748

GROMMET

- 7/8 in.

1шт.

18

K951526

RESERVOIR

- with filler cap, (Girling 73046000)

1шт.

K964488

CAP

FILLER CAP - reservoir

1шт.

K964813

COVER

- filler cap, blue

1шт.

19

K624873

CLIP

, Serial Range: (Reservoir-bulkhead)

1шт.

20

K614946

SCREW,Pan, #10 - 32 x 3/4"

SETSCREW - no. 10 UNF x 3/4 in., Serial Range: (Reservoir-bulkhead)

1шт.

K19488

SPRING WASHER

SPRING WASHER - 3/16 in., Serial Range: (Reservoir-bulkhead)

1шт.

K617080

NUT

- no. 10 UNF

1шт.

21

K951959

BRAKE LINE

PIPE - master cylinder outlet, right-hand

1шт.

22

K652091

FITTING

TEE-PIECE

1шт.

23

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Tee-piece to bulkhead)

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Tee-piece-bulkhead)

1шт.

24

K951976

LIGHT SWITCH

SWITCH - stop lamps, Lucas 30874A

1шт.

25a

K954390

PIPE

- tee-piece to balance valve (990Q, 995Q, 996Q)

1шт.

25b

K954501

BRAKE

PIPE - T-piece to balance valve (990SK, 995SK, 996SK)

1шт.

26a

K954391

BRAKE

PIPE - master cylinder to balance valve (990Q, 995Q, 996Q)

1шт.

26b

K954502

BRAKE

PIPE - master cylinder to balance valve (990SK, 995SK, 996SK)

1шт.

27

K625008

CLIP

- brake pipe

2шт.

28

K954407

BRACKET

- pipe clip (990Q, 995Q, 996Q)

1шт.

29

K952209

PIPE

PACKING BLOCK - brake pipes

1шт.

30

K950547

VALVE

BALANCE VALVE - Girling 73067018

1шт.

31

K600152

BOLT

- 1/4 UNC x 2 in., Serial Range: (Valve-cab)

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Valve-cab)

1шт.

32

K952451

PIPE

FLEXIBLE PIPE - 12 MM x 22 in.

2шт.

K652100

LOCK NUT

LOCKNUT - 12 MM

2шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in.

2шт.

33

K951919

BRACKET

- brake pipes

1шт.

K602903

SCREW

SETSCREW - 3/8 UNC x 7/8 in., Serial Range: (Bracket-axle)

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in., Serial Range: (Bracket-axle)

1шт.

34

K951963

PIPE

- left-hand slave cylinder

1шт.

35

K951962

PIPE

- right-hand slave cylinder

1шт.

36

K950557

CYLINDER

SLAVE CYLINDER - Girling 73067020

2шт.

K964534

SCREW,M12 x 1

BLEED SCREW - 12 MM, slave cylinder

2шт.

K964572

SEAL KIT

SEAL KIT - master cylinder (Mineral oil seals)

2шт.

FOOTNOTE

1шт.

Not applicable to N. America

1шт.
