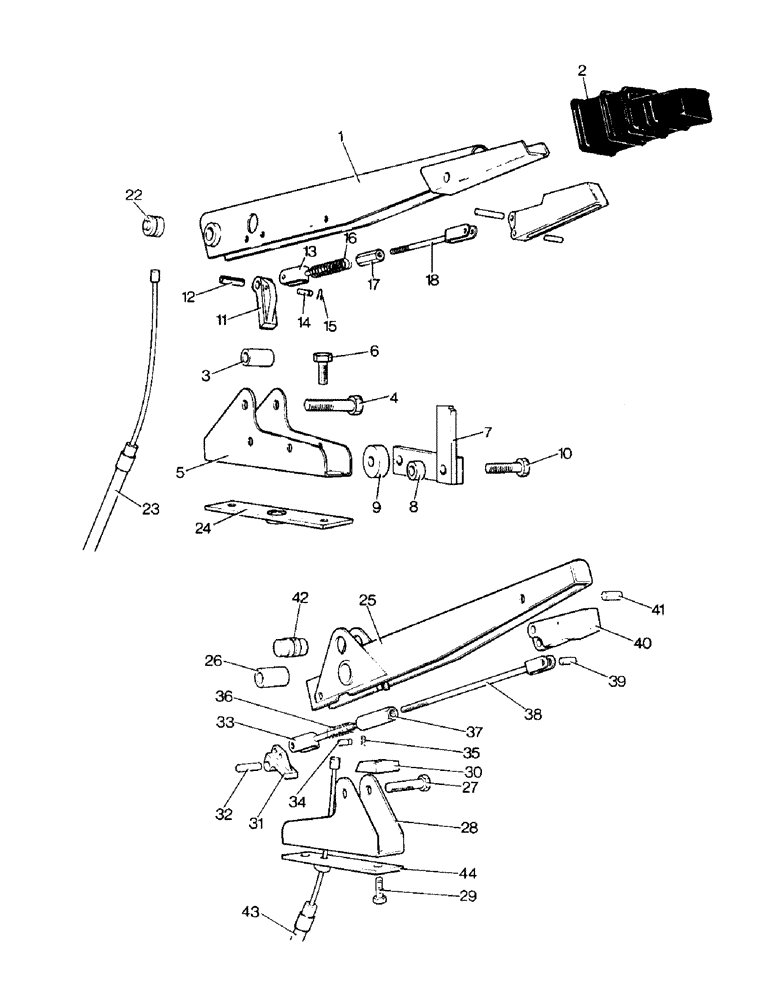

Запчасти Case IH 996 (B10-1) - CLUTCH, HAND LEVER FOR PTO CLUTCH (03.1) - CLUTCH
№
Артикул
Название
Примечание
Количество
1
K950579
LEVER
HAND LEVER - PTO clutch
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
2
K956014
GRIP
- hand lever
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
3
K627052
BUSHING
DISTANCE PIECE
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
4
K600526
BOLT
- 3/8 UNC x 1-7/8 in.
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in.
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
280136
NUT,3/8"-16, G8
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
5
K955244
BRACKET
SUPPORT BRACKET - hand lever
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
6
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
SETSCREW - 5/16 UNC x 1 in. (Bracket to cab floor)
2шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (Bracket to cab floor)
2шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16 UNC (Bracket to cab floor)
2шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
7
K955645
RATCHET
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
8
K627110
BUSHING
DISTANCE PIECE
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
9
K627109
BUSHING
DISTANCE PIECE
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
10
K600369
BOLT
- 3/8 UNC x 1-3/4 in.
2шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
K19481
SPRING WASHER
SPRING WASHER - 3/8 in.
2шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 3/8 UNC
2шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
11
K200038
PAWL
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
12
K623924
SPRING
PIN - 1/4 x 7/8 in.
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
13
K950033
ROD
PULL ROD - short
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
14
K949499
PIN
- grooved, 3/16 x 1/2 in.
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
15
K621572
RING, SNAP
CIRCLIP - 3/16 in., external
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
16
K625099
SPRING
- pull rod
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
17
K617286
NUT
ADJUSTING SLEEVE - no. 10 UNF
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
K617080
NUT
- no. 10 UNF
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
18
K950577
ROD
PULL ROD - long
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
19
K949498
PIN
- 3/16 x 1/2 in.
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
20
K950026
LEVER
RELEASE LEVER
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
21
K623773
PIN
- 3/16 x 7/8 in.
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
22
K955644
RETAINER
CONNECTING PIN -, Serial Range: cable-lever
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
23
K955671
CABLE
- inner and outer
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
24
K955245
CABLE
ANCHOR PLATE - cable
1шт.
Used on models 996Q, 996SK, S/N 11088300 and after
1шт.
25
K951557
LEVER
HAND LEVER - PTO clutch
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
26
K627052
BUSHING
DISTANCE PIECE (Lever to support bracket)
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
27
K600526
BOLT
- 3/8 UNC x 1-7/8 in. (Lever to support bracket)
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 UNC (Lever to support bracket)
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
280136
NUT,3/8"-16, G8
(Lever to support bracket) 3/8"-16, G8
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
28
K951560
BRACKET
SUPPORT BRACKET - hand lever
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
29
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
SETSCREW - 5/16 UNC x 1 in. (Bracket to cab floor)
2шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (Bracket to cab floor)
2шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16 UNC (Bracket to cab floor)
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
30
K951561
BLOCK
RETAINING BLOCK (Bracket to cab floor)
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
31
K949500
PAWL
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
32
K623772
PIN
- 1/4 x 7/8 in.
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
33
K950033
ROD
PULL ROD - short
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
34
K949499
PIN
- grooved, 3/16 x 1/2 in.
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
35
K621572
RING, SNAP
CIRCLIP - 3/16 in., external
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
36
K625099
SPRING
- pull rod
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
K617080
NUT
- no. 10 UNF
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
37
K617286
NUT
ADJUSTING SLEEVE - No. 10 UNF
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
38
K950031
ROD
PULL ROD - long
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
39
K949498
PIN
- 3/16 x 1/2 in.
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
40
K950026
LEVER
RELEASE LEVER
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
41
K623773
PIN
- 3/16 x 7/8 in.
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
42
K200089
PIN
CONNECTING PIN - replaces K950029
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
43
K951569
CABLE
- inner and outer
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
44
K951562
CABLE
ANCHOR PLATE - cable
1шт.
Used on models 996Q, 996SK, up to S/N 11088300
1шт.
Выбрано товаров: 112
