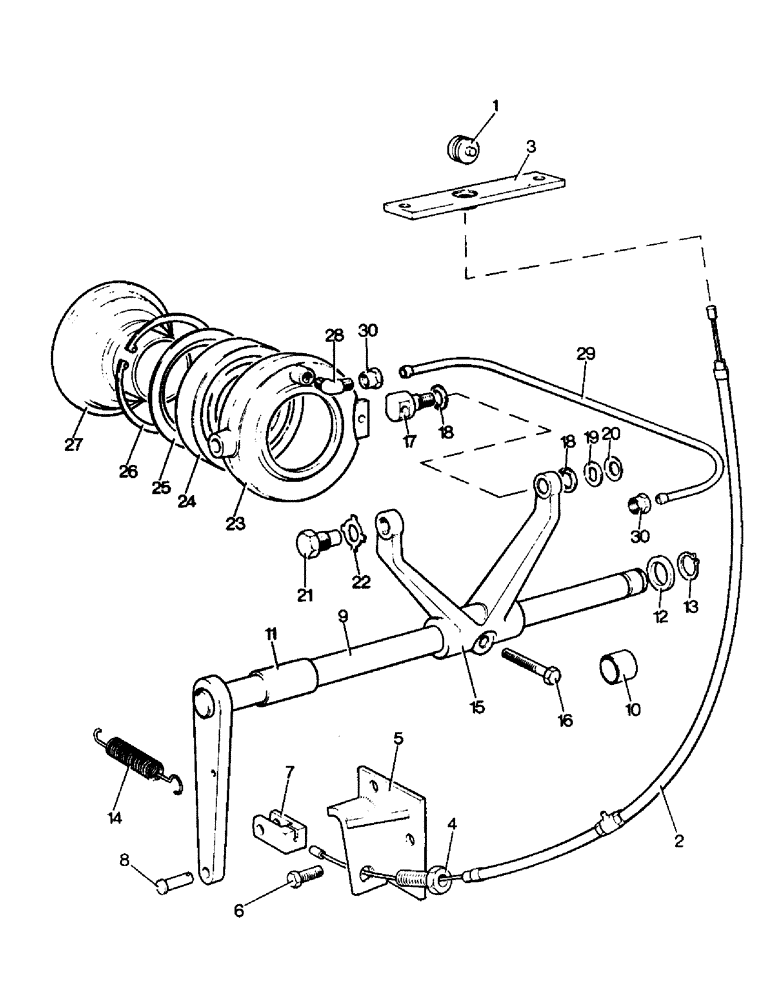

Запчасти Case IH 996 (B09-1) - CLUTCH, PTO CLUTCH RELEASE MECHANISM, 996Q, 996SK (03.1) - CLUTCH

1a

K955644

RETAINER

CONNECTING PIN -, Serial Range: cable-lever

1шт.

Used on models 996Q, 996SK, S/N 11088300 and after

1шт.

1b

K200089

PIN

CONNECTING PIN - cable, replaces K950029

1шт.

Used on models 996Q, 996SK, up to S/N 11088300

1шт.

2a

K955671

CABLE

- inner and outer

1шт.

Used on models 996Q, 996SK, S/N 11088300 and after

1шт.

3a

K955245

CABLE

ANCHOR PLATE - cable

1шт.

Used on models 996Q, 996SK, S/N 11088300 and after

1шт.

4

K949629

ADJUSTER

ADJUSTING SCREW - 5/8 UNC

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

LOCKNUT - 5/8 UNC

1шт.

5

K949628

BRACKET

ANCHOR BRACKET - cable

1шт.

6

K603003

SCREW

SETSCREW - 7/16 UNC x 1 in., Serial Range: (Bracket-frame)

2шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in., Serial Range: (Bracket-frame)

2шт.

7

K622207

FORK

END

1шт.

8

K69984

SPLIT PIN/SAFETY PIN

CLEVIS PIN - 3/8 x 1-5/16 in.

1шт.

K19472

WASHER

- 3/8 in.

1шт.

K623607

PIN

SPLIT PIN - 3/32 x 3/4 in.

1шт.

9

K949630

SHAFT

CROSS SHAFT AND LEVER

1шт.

10

K628753

BUSHING

BUSH - main frame

2шт.

11

K944008

BUSHING

SPACER - cross shaft

1шт.

12

K626749

WASHER

BELLEVILLE WASHER - 1 in.

1шт.

13

K11128

CIRCLIP

- 1 in., external

1шт.

14

K624927

SPRING

RETURN SPRING - cross shaft

1шт.

15

K915832

CLUTCH FORK

FORK - PTO clutch

1шт.

K19162

KEY - Woodruff no. 608

2шт.

16

K600406

BOLT

- 3/8 UNC x 1-3/4 in.

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

17

K925323

TRUNNION,14.27mm OD x 57.15mm L

PIN - right-hand

1шт.

K26230

PIN, SPLIT (COTTER)

SPLIT PIN - 3/16 x 1-3/8 in.

1шт.

18

K84749

GASKET

FRICTION WASHER - 3/8 in.

2шт.

19

K925338

BEARING WASHER

WASHER - 3/8 in. special

1шт.

20

K626723

BELLEVILLE WASHER

BELLEVILLE WASHER - 3/8 in.

6шт.

232-1416

LOCK NUT,3/8"-16, GC

NYLOC NUT - 3/8 UNC

1шт.

21

K915833

PIN

TRUNNION PIN - left-hand

1шт.

22

K626399

WASHER

TABWASHER - trunnion pin

1шт.

23

K915837

BEARING HOUSING

HOUSING - thrust bearing

1шт.

24

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

THRUST BEARING - PTO clutch

1шт.

25

K84745

SEAL,88.01mm ID x 114.17mm OD x 0.56mm Thk

CHIP SHIELD

1шт.

26

K621431

RING, SNAP

CIRCLIP - 4-1/2 in, internal

1шт.

27

K84740

THRUST PLATE

1шт.

28

K19587

FITTING

ELBOW - 1/8 BSP - 3/8 UNF

2шт.

29

K950502

TUBE,0.187" DIA x 2.25" L

PLASTIC TUBE - 3/16 x 20-1/4 in.

1шт.

30

K617956

NUT

TUBING NUT - 3/8 UNF

2шт.

K622407

FERRULE

OLIVE - 3/16 in. internal dia.

2шт.

K12250

FITTING

GREASE FITTING - 1/8 BSP

1шт.
