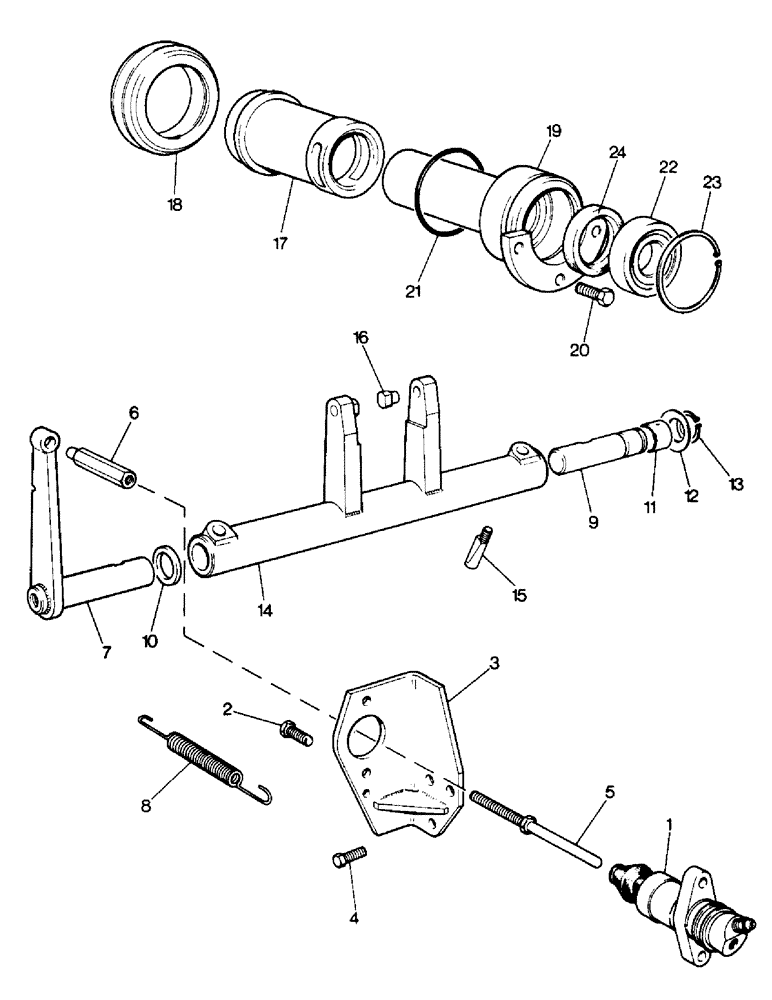

Запчасти Case IH 996 (B08-1) - CLUTCH, CLUTCH RELEASE MECHANISM - MECHANICAL COMPONENTS, 996Q, 996SK (03.1) - CLUTCH

1

K950550

CYLINDER

SLAVE CYLINDER (Mineral oil seals)

1шт.

K964576

SEAL KIT

SEAL KIT - slave cylinder (Mineral oil seals)

1шт.

2

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 7/8 in. (Cylinder to bracket)

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Cylinder to bracket)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Cylinder-bracket)

2шт.

3

K950510

MOUNTING PARTS

MOUNTING BRACKET - slave cylinder

1шт.

4

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 3/4 in. (Bracket to frame)

3шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Bracket-frame)

3шт.

5

K949802

ROD

PUSH ROD - slave cylinder

1шт.

425-115

NUT,5/16"-24, G5

- 5/16 UNF

1шт.

6

K949803

ADJUSTER

ADJUSTING SLEEVE - 5/16 UNF

1шт.

7

K950661

SHAFT

STUBSHAFT AND LEVER - left-hand

1шт.

8

K624949

SPRING

- lever return

1шт.

9

K950507

SHAFT

STUBSHAFT - right-hand

1шт.

10

K627167

BUSHING

DISTANCE PIECE

1шт.

11

K628753

BUSHING

BUSH - main frame

2шт.

12

K626749

WASHER

BELLEVILLE WASHER - 1 in.

1шт.

13

K11128

CIRCLIP

- 1 in. external

1шт.

14

K950509

CLUTCH

FORK - transmission clutch

1шт.

15

K609425

LARGE PIN

COTTER PIN - 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

K19472

WASHER

- 3/8 in.

2шт.

K11522

WASHER

SHAKEPROOF WASHER - 3/8 in.

2шт.

16

K84748

TRUNNION

PIN - fork

2шт.

17

K915836

BEARING CARRIER,Clutch

CARRIER - thrust bearing

1шт.

18

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

- clutch release

1шт.

19a

K956030

SUPPORT

SNOUT - bearing carrier

1шт.

Used on models 996Q, 996SK, S/N 11090013 and after

1шт.

19b

K965191

PACKAGE

SUPPORT SNOUT KIT - replaces K943383

1шт.

Used on models 996Q, 996SK, up to S/N 11090013

1шт.

K956030

SUPPORT

SNOUT

1шт.

Used on models 996Q, 996SK, up to S/N 11090013

1шт.

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM

1шт.

Used on models 996Q, 996SK, up to S/N 11090013

1шт.

K956031

CLUTCH

DRIVESHAFT

1шт.

Used on models 996Q, 996SK, up to S/N 11090013

1шт.

20

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. (Support snout to frame)

3шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 UNC (Support, Serial Range: snout-frame)

3шт.

21

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 in., internal dia. (Support snout to frame)

1шт.

22

K620190

BALL BEARING

- clutch driveshaft

1шт.

23

K621430

CIRCLIP

- 75 MM, internal

1шт.

24

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM

1шт.

Used on models 996Q, 996SK, S/N 11090013 and after

1шт.

FOOTNOTE

1шт.

Not applicable to N. America

1шт.
