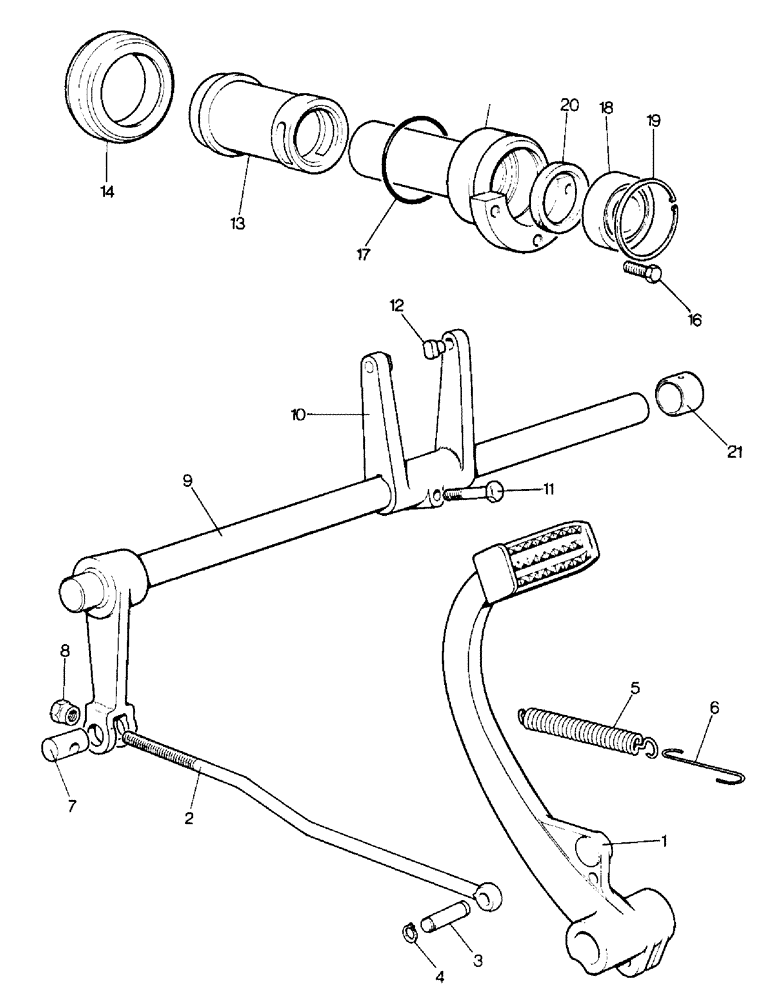

Запчасти Case IH 996 (B04-1) - CLUTCH, TRANSMISSION CLUTCH RELEASE MECHANISM, 996, 996G (03.1) - CLUTCH

1

K943381

CLUTCH

PEDAL

1шт.

2

K943376

CLUTCH

ROD - pedal to cross shaft

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

3

K950269

PIN

- 3/8 x 1-1/4 in.

1шт.

4

K621562

RING, SNAP

CIRCLIP - 3/8 in., external

2шт.

5

K624927

SPRING

- pedal return

1шт.

6

K946631

SPRING

ANCHOR - return spring

1шт.

7

K14744

PIN

- 3/4 x 1-1/2 in.

1шт.

8

K607504

NUT

ADJUSTING NUT - 3/8 UNC

1шт.

280136

NUT,3/8"-16, G8

2шт.

9

K943718

ARM

CROSS SHAFT AND LEVER

1шт.

Ref #9 (K943718) : See page L10-1 / L11-1 / L11-3 for "Bearing Bushing" & "Flange" that this shaft may ride through. SMA 10/23/98

1шт.

10

K915831

TRANSMISSION

FORK - transmission clutch

1шт.

K19612

KEY

- Woodruff no. 608

2шт.

11

K600406

BOLT

- 3/8 UNC x 1-3/4 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

1шт.

12

K84748

TRUNNION

PIN - fork

2шт.

13

K915836

BEARING CARRIER,Clutch

CARRIER - thrust bearing

1шт.

14

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

- transmission clutch

1шт.

15a

K956030

SUPPORT

SNOUT - bearing carrier

1шт.

Ref #15A - 7 1/16" Long 12/15/95

1шт.

Used on models 996, 996G, S/N 11090013 and after

1шт.

15b

K965191

PACKAGE

SUPPORT SNOUT KIT - replaces K943383

1шт.

Used on models 996, 996G, up to S/N 11090013

1шт.

K956030

SUPPORT

SNOUT

1шт.

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM

1шт.

K956031

CLUTCH

DRIVESHAFT

1шт.

16

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

3шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

3шт.

17

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 in. internal dia.

1шт.

18

K620190

BALL BEARING

- clutch driveshaft

1шт.

19

K621430

CIRCLIP

- 75 MM, internal

1шт.

20

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM, clutch driveshaft

1шт.

Used on models 996, 996G, S/N 11090013 and after

1шт.

21

K628753

BUSHING

BUSH - main frame

2шт.
