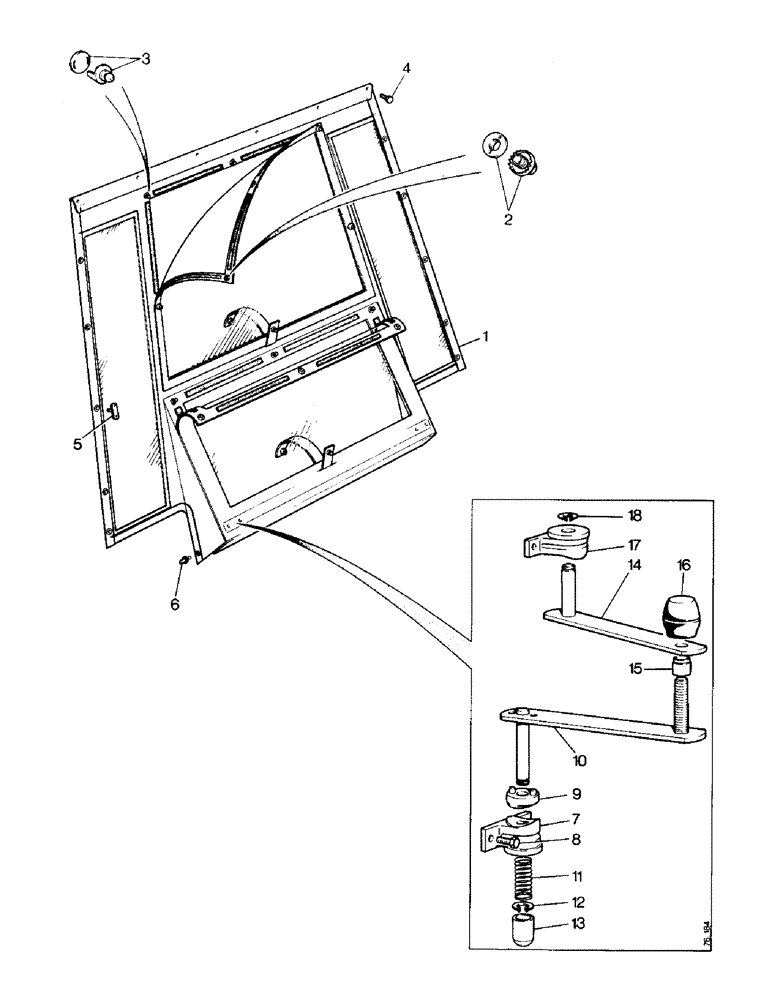

Запчасти Case IH 996 (L22-1) - CHASSIS, PANEL, FLEXIBLE, FOR REAR OF CAB, 990Q, 995Q, 996Q, UP TO S/N 11088300 (12) - CHASSIS

1

K951700

PANEL

- flexible, rear, Includes: Ref. 2 & 3

1шт.

2

K624589

BUTTON

PUSH BUTTON - female

22шт.

3

K624593

BUTTON

PUSH BUTTON - male

12шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. (Panel to cab roof)

6шт.

K626682

WASHER

- 5/16 in. (Panel to cab roof)

6шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Panel to cab roof)

6шт.

K607201

NUT

WING NUT - 5/16 UNC (Panel to cab roof)

6шт.

5

K624588

BUTTON

PUSH BUTTON FASTENER - male, riveted (Cab side panels)

8шт.

6

K624595

BUTTON

PUSH BUTTON FASTENER - male, screwed (Cab side panels)

4шт.

K626946

WASHER

(Cab side panels)

2шт.

K626340

RING

SPRING WASHER (Cab side panels)

2шт.

K11109

NUT

- 2 BA (Cab side panels)

2шт.

K952497

NUT

- 2 BA special (Cab side panels)

2шт.

7

K952200

HINGE

BLOCK

2шт.

8

K602733

SCREW

SETSCREW - 1/4 UNC x 5/8 in., Serial Range: (Blocks-cab)

4шт.

K626552

WASHER

SHAKEPROOF WASHER - 1/4 in., Serial Range: (Blocks-cab)

4шт.

9

K952240

CAM

HINGE CAM

2шт.

10

K952239

HINGE

- lower

2шт.

11

K625295

SPRING

2шт.

K19472

WASHER

- 3/8 in.

4шт.

12

K621587

RING, SNAP

CIRCLIP - 3/8 in. dia., external

2шт.

13

K947518

COVER

- springs

2шт.

14

K952238

HINGE

- upper

2шт.

15

953110

DISTANCE PIECE

2шт.

K19472

WASHER

- 3/8 in.

2шт.

16

K950493

KNOB

2шт.

17

K952200

HINGE

BLOCK

2шт.

K19472

WASHER

- 3/8 in.

2шт.

18

K621587

RING, SNAP

CIRCLIP - 3/8 in. dia., external

2шт.
