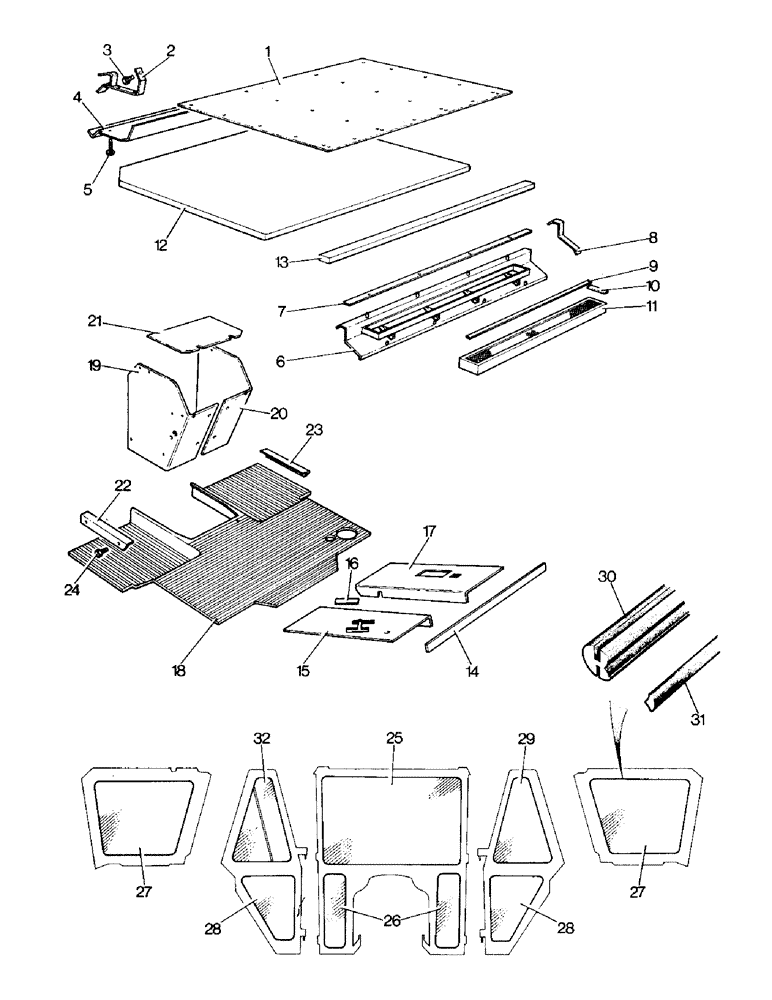

Запчасти Case IH 996 (L21-1) - CHASSIS, CAB INTERNAL TRIM AND GLAZING (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
K955185
DUCT
COVER - cab roof
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
1
K952468
DUCT
COVER - cab roof
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
2
K952778
SUPPORT
BRACKET - top cover
3шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
3
K602846
SCREW,5/16" - 18 x 5/8", Gr S
SETSCREW - 5/16 UNC x 5/8 in., Serial Range: (Brackets-cab)
6шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in., Serial Range: (Brackets-cab)
6шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16 UNC (Brackets to cab)
6шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
4
K952725
COVER
TOP COVER
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
5
K624527
SCREW
SELF-TAPPING SCREW - no. 6 x 1/2 in., Serial Range: (Cover-brackets)
9шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
K626760
WASHER
CUP WASHER - no. 6, Serial Range: (Cover-brackets)
9шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
6
K955887
DOOR
ACCESS DOOR - filter
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K626150
STUD
FASTENER - acces door
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K626152
WASHER
RETAINING WASHER - door fastener
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K626151
PLATE
RECEPTACLE - door fastener
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
6
K952190
DOOR
ACCESS DOOR - filter
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
7
K628236
SEAL
ING STRIP - 1/2 x 1 x 37-3/8 in. (Filter door)
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
7
K952475
SEAL
ING STRIP - 5 x 20 MM x 37-1/2 in. (Filter door)
2шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
8
K628238
SEAL
ING STRIP - 1/2 x 1/2 x 6-1/2 in. (Filter door)
2шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
8
K952476
SEAL
ING STRIP - 5 x 20 MM x 8-5/8 in. (Filter door)
2шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
9
K628235
SEAL
ING STRIP - 1/2 x 1 x 32 in., Serial Range: (Filter-roof)
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
9
K628237
SEAL
ING STRIP - 1/2 x 1 x 37-1/2 in., Serial Range: (Filter-roof)
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
9
K952477
SEAL
ING STRIP - 5 x 12 MM x 32 in., Serial Range: (Filter-roof)
2шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
10
K628239
SEAL
ING STRIP - 1/2 x 1 x 4-1/2 in., Serial Range: (Filter-roof)
2шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
10
K952769
SEAL
ING STRIP - 5 x 12 MM x 4 in., Serial Range: (Filter-roof)
2шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
11
K952133
FILTER
AIR FILTER - cab ventilation
1шт.
12
K955545
FOAM
INSULATING TRIM - cab roof
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K955521
INSULATOR
INSULATING TRIM - upper, right-hand side
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K955522
INSULATOR
INSULATING TRIM - upper, left-hand side
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
12
K950396
INSULATOR
- cab roof
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
13
K953080
INSULATOR
INSULATING STRIP - cab roof
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
14
K952698
STRIP
INSULATOR - rear cross member
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
15
K955461
INSULATOR
- left-hand rear
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
15
K951046
COVER
INSULATOR - left-hand rear
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
16
K951389
FLOOR
INSULATING STRIP - left-hand
1шт.
17
K955460
INSULATOR
- right-hand rear
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
17
K951047
COVER
INSULATOR - right-hand rear
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
18
K950268
INSULATOR
INSULATING MAT - cab floor
1шт.
19
K951050
PANEL, SIDE
INSULATOR - console left-hand
1шт.
20
K951049
INSULATOR
- console right-hand
1шт.
21
K955459
INSULATOR
- console top
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
21
K950397
INSULATOR
- console top
1шт.
K955611
LACING, BELT
SOUND PROOF TRIM - left-hand side panel
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K955610
LACING, BELT
SOUND PROOF TRIM - right-hand side panel
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K955177
CABLE
COVER - left-hand side lamp leads
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K955176
CABLE
COVER - right-hand side lamp leads
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K603924
SCREW
- 1/4 UNC x 1/2 in.
2шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K19470
WASHER
- 1/4 in.
2шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K626341
SPRING WASHER
SPRING WASHER - 1/4 in.
2шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
22
K950608
PLATE
TREAD PLATE - left-hand
1шт.
23
K950607
PLATE
TREAD PLATE - right-hand
1шт.
24
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SETSCREW - 5/8 UNC x 3/4 in. (Plates to cab floor)
4шт.
K626682
WASHER
- 5/16 in. (Plates to cab floor)
4шт.
L19481
SPRING WASHER - 5/16 in.
4шт.
25
K951052
WINDSHIELD
WINDSCREEN GLASS
1шт.
26
K951053
GLASS
BULKHEAD PANEL GLASS
2шт.
K955178
GLASS
SIDE PANEL GLASS - left-hand
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
27
K772654
WINDOW
SIDE PANEL GLASS
2шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
28
K950362
GLASS
DOOR WINDOW GLASS - lower
2шт.
29
K955193
DOOR
WINDOW GLASS
2шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
29
K950361
DOOR
WINDOW GLASS - upper left-hand
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
30
K692078
RUBBER STRIP
WINDOW GLAZING STRIP - order in metres
1шт.
31
K692079
RUBBER
FILLER STRIP - for K692078 order in metres
1шт.
32
K951637
WINDOW
SCOOP WINDOW ASSEMBLY - right-hand door
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
K965205
GLASS
PANEL - fixed
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
K965204
GLASS
PANEL - opening
1шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
K965203
PIVOT
NYLON PIVOT - stay to opening panel
2шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
86625206
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"
- no. 10 UNF x 1/2 in. (Window stay to door)
4шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
K626340
RING
SPRING WASHER - 3/16 in. (Window, Serial Range: stay-door)
4шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
K626310
WASHER
- 3/16 in. (Window, Serial Range: stay-door)
4шт.
Used on models 990Q, 995Q, 996Q, up to S/N 11088300
1шт.
K200034
X
SUN VISOR
1шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
K614498
SCREW
- no. 10 UNF x 1/2 in.
3шт.
Used on models 990Q, 995Q, 996Q, S/N 11088300 and after
1шт.
Выбрано товаров: 124
