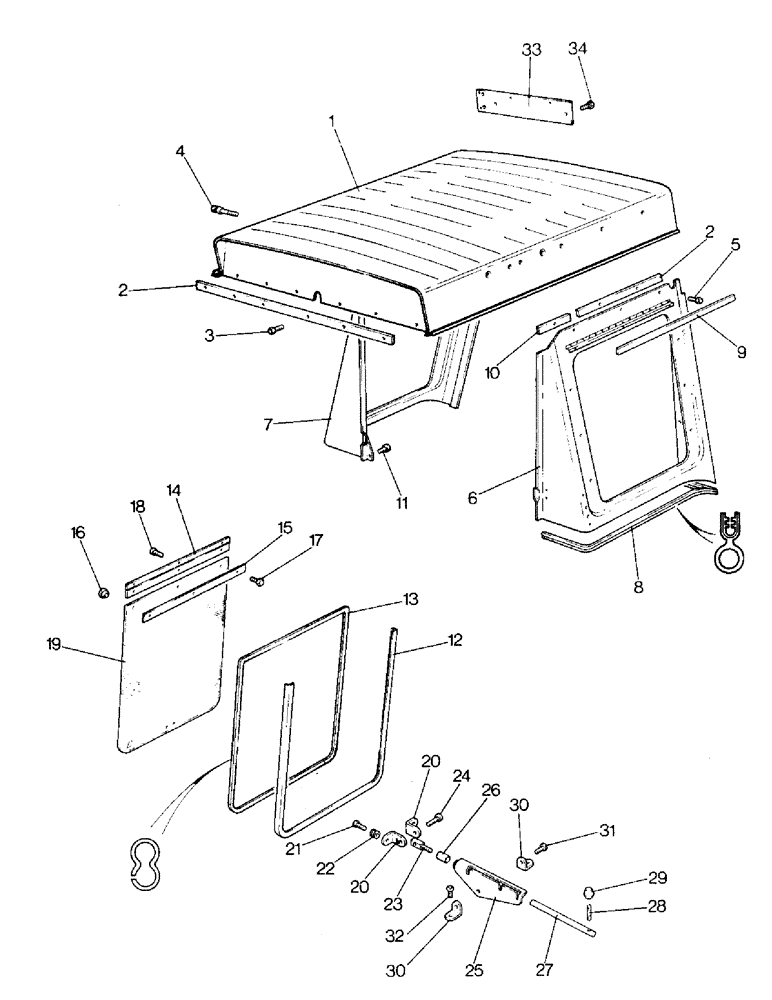

Запчасти Case IH 996 (L20-1) - CHASSIS, CAB ROOF AND SIDE PANELS (12) - CHASSIS

1a

K955188

CAB

ROOF

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

1b

K952164

ROOF

CAB ROOF

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

2

K692017

RUBBER STRIP

PLASTIC STRIP - 1 in. x 1/16 in. order in metres (Roof to front frame)

1шт.

3

K603926

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (Roof to front frame)

8шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

3

K603926

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (Roof to front frame)

6шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Roof to front frame)

8шт.

K627745

GROMMET

- 3/4 in., roof panel

4шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

4

K950477

BOLT

LIFTING BOLT

4шт.

K692065

BOLT

THREADED INSERT - 1/4 UNC (Roof and side panels to upper frame)

28шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K692065

BOLT

THREADED INSERT - 1/4 UNC (Roof and side panels to upper frame)

20шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

5

K603926

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (Roof and side panels to upper frame)

26шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

5

K603926

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (Roof and side panels to upper frame)

20шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19470

WASHER

- 1/4 in. (Roof and side panels to upper frame)

26шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K19470

WASHER

- 1/4 in. (Roof and side panels to upper frame)

20шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626552

WASHER

SHAKEPROOF WASHER - 1/4 in. (Roof and side panels to upper frame)

26шт.

K626552

WASHER

SHAKEPROOF WASHER - 1/4 in. (Roof and side panels to upper frame)

20шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

6a

K955174

PANEL

SIDE PANEL - left-hand

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

6b

K950469

PLATE

SIDE PANEL - left-hand

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

7a

K955173

PLATE

SIDE PANEL - right-hand

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

7b

K950470

PANEL

SIDE PANEL - right-hand

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

8

K691979

PANEL

SEALING STRIP - order in metres (Side panels)

1шт.

9

K692156

PLASTIC STRIP - 1 in. x 1/16 in. order in metres (Side panels)

1шт.

10

K950219

STRIP

PLASTIC STRIP - 8 in.

2шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

11

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8 in. (Side, Serial Range: panels-fenders)

2шт.

K626682

WASHER

- 5/16 in. (Side, Serial Range: panels-fenders)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Side, Serial Range: panels-fenders)

2шт.

12

K955702

PANEL

EDGING - right-hand panel

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

13

K955705

SEAL

DRAUGHT EXCLUDER - panel to opening window

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

14

K955728

HINGE

- right-hand window

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

15

K955703

STRIP

BACKING STRIP

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

16

K955706

SLEEVE

RUBBER BUSH

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

17

K602735

SCREW

SETSCREW - 1/4 UNC x 3/4 in.

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

18

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- 1/4 UNC x 5/8 in.

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19470

WASHER

- 1/4 in.

6шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K607251

NUT

DOMED NUT - 1/4 UNC

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K607043

NUT

- 1/4 UNC

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

19

K955192

GLASS

WINDOW GLASS - right-hand side panel

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

20

K955714

BRACKET

ANGLE BRACKET

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

21

K691892

SCREW

- 1/4 UNC x 1 in.

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

22

K955707

GROMMET

RUBBER BUSH

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

23

K955713

SCREW

PIVOT SCREW

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

24

K603931

SCREW

- 1/4 UNC x 1-1/4 in.

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19470

WASHER

- 1/4 in.

5шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K607300

NUT

NYLOC NUT - 1/4 UNC

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K956195

BOLT

WINDOW CATCH ASSEMBLY, Includes: Ref. 25 - 31 and washer and nyloc nut

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

25

K955708

BOLT

BARREL

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

26

K955711

BUSHING

NYLON BUSH

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

27

K955712

BOLT

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

28

K955715

STUD

- 3/8 - 1/4 UNC

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

29

K950493

KNOB

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

30

K955714

BRACKET

ANGLE BRACKET

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

31

K603297

SCREW - 1/4 UNC x 7/8 in.

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19470

WASHER

- 1/4 in.

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K607300

NUT

NYLOC NUT - 1/4 UNC

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

32

K603926

SCREW

- 1/4 UNC x 3/4 in., Serial Range: (Catch-fender)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Catch-fender)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K607043

NUT

- 1/4 UNC, Serial Range: (Catch-fender)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

33

K952425

PLATE

NUMBER PLATE

1шт.

34

K604093

SCREW

SETSCREW - 1/4 UNC x 1/2 in.

2шт.

K627705

GROMMET

- 1/2 in., lamp head

1шт.
