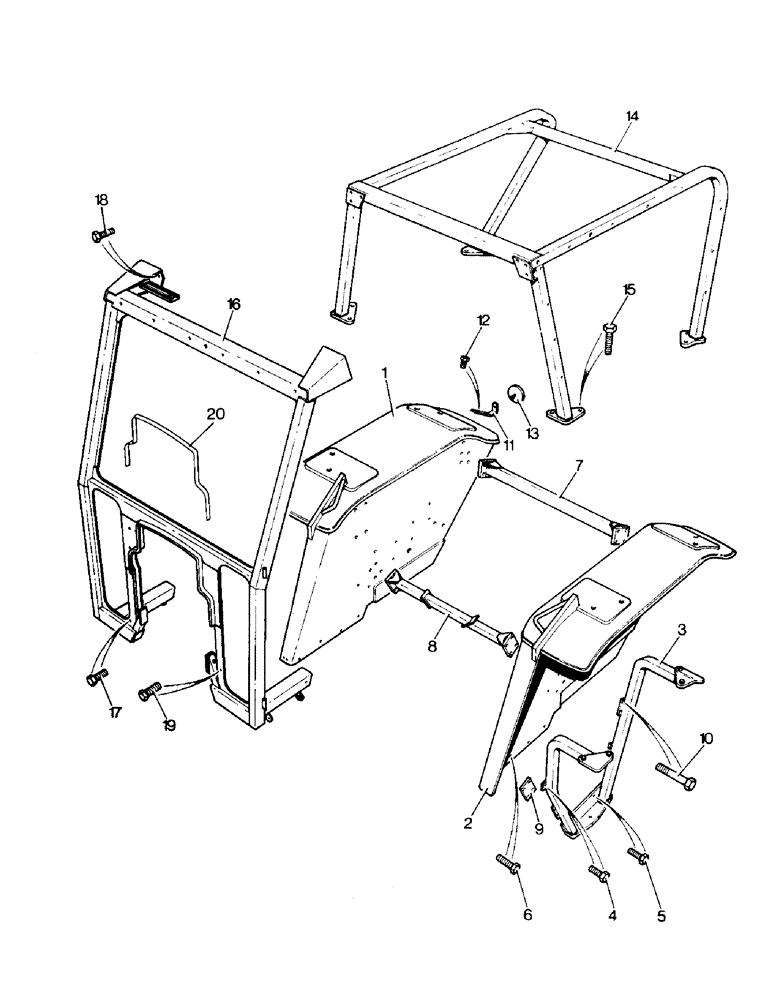

Запчасти Case IH 996 (L19-1) - CHASSIS, FENDERS AND CAB FRAME, 990Q, 995Q, 996Q (12) - CHASSIS

1a

K955161

WHEEL

FULL FENDER - right-hand

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

2a

K955162

RIM

FULL FENDER - left-hand

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

1b

K950303

WHEEL

FULL FENDER - right-hand

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

2b

K950304

RIM

FULL FENDER - left-hand

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K955119

FRAME

SUPPORT BRACKET - right-hand

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

3a

K955118

FRAME

SUPPORT BRACKET - left-hand

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K950299

FRAME

SUPPORT BRACKET - right-hand

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

3b

K950300

FRAME

SUPPORT BRACKET - left-hand

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

4a

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8 in. (Fenders to support brackets)

4шт.

K626682

WASHER

- 5/16 in. (Fenders to support brackets)

8шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Fenders to support brackets)

8шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Fenders to support brackets)

8шт.

5

K602736

SCREW

SETSCREW - 1/4 UNC x 7/8 in.

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

4шт.

K607043

NUT

- 1/4 UNC

4шт.

6

K602733

SCREW

SETSCREW - 1/4 UNC x 5/8 in. (Fenders to cab floor)

30шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Fenders to cab floor)

30шт.

K607043

NUT

- 1/4 UNC (Fenders to cab floor)

30шт.

K954444

STRIP

SEALING STRIP (Fenders to cab floor)

2шт.

7a

K955742

SUPPORT

CROSS BEAM - rear

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

7b

K949508

BEAM

CROSS BEAM - rear

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

8a

K955743

BEAM

CROSS BEAM - front

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

8b

K950604

BEAM

CROSS BEAM - front

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

9

K948719

CLAMPING PLATE, Serial Range: (Beams-fenders)

4шт.

10

K600703

BOLT

- 7/16 UNC x 3 in., Serial Range: (Beams-fenders)

16шт.

K626344

WASHER, LOCK

SPRING WASHER - 7/16 in., Serial Range: (Beams-fenders)

16шт.

11

K929468

BRACKET

REFLECTOR

2шт.

12

K603924

SCREW

SETSCREW - 1/4 UNC x 1/2 in., Serial Range: (Brackets-fender)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Brackets-fender)

4шт.

K607043

NUT

- 1/4 UNC, Serial Range: (Brackets-fender)

4шт.

13

K964716

REFLECTOR

2шт.

K626340

RING

SPRING WASHER - 3/16 in., Serial Range: (Reflectors-brackets)

2шт.

K11109

NUT

- 2 BA, Serial Range: (Reflectors-brackets)

2шт.

14a

K955191

FRAME

UPPER FRAME - welded assembly

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

14b

K954142

CAB

UPPER FRAME - welded assembly, replaces K950463

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

15

K603274

SCREW

SETSCREW - 5/8 UNC x 1-1/2 in., Serial Range: (Frame-fenders)

8шт.

K19485

WASHER

SPRING WASHER - 5/8 in., Serial Range: (Frame-fenders)

8шт.

K691826

WASHER

- 5/8 in., special, Serial Range: (Frame-fenders)

8шт.

16a

K955739

FRAME

FRONT FRAME - welded assembly

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

16b

K950373

FRAME

FRONT FRAME - welded assembly

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

17

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Frame to cab floor)

10шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Frame to cab floor)

10шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Frame to cab floor)

10шт.

K949707

SHIM

- 0.060 in. (Front frame to upper frame)

2шт.

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

SETSCREW - 3/8 UNC x 1-1/4 in. (Front frame to upper frame)

4шт.

18

K602983

SCREW

SETSCREW - 3/8 UNC x 7/8 in. (Front frame to upper frame)

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Front frame to upper frame)

6шт.

280136

NUT,3/8"-16, G8

(Front frame to upper frame) 3/8"-16, G8

2шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 NC x 1 in. (Front frame to scuttle)

3шт.

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Front frame to scuttle)

7шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Front, Serial Range: frame-scuttle)

10шт.

K627726

GROMMET

- 1 in., wiper lead (Front frame)

1шт.

K627742

GROMMET

- 15/32 in. dia., loader control cable apertures

2шт.

K955470

ADHESIVE

SEATING STRIP - 6 x 12 MM x 15 in., fender door stops

2шт.

20

K953103

STRIP

SEATING STRIP - 1/16 x 5/8 x 43 in., bonnet

1шт.
