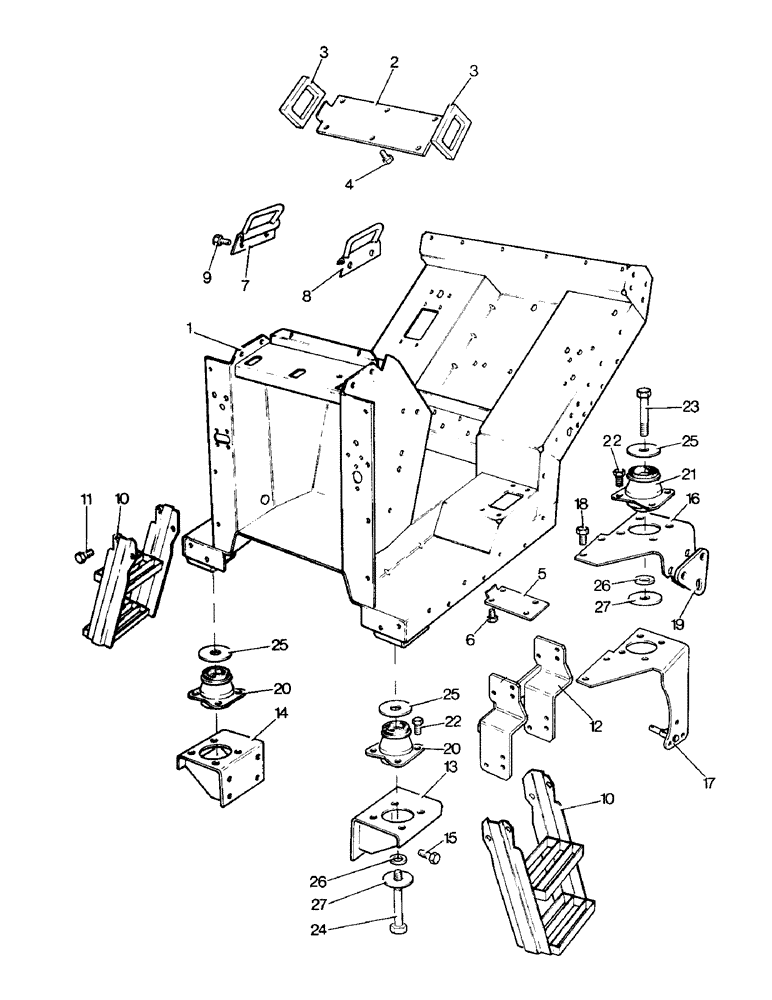

Запчасти Case IH 996 (L18-1) - CHASSIS, CAB FLOOR AND CAB MOUNTINGS, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1a
K955436
CAB
FLOOR (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, S/N 11088300 and after
1шт.
1b
K955666
CAB
FLOOR (990SK, 995SK, 996SK)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, S/N 11088300 and after
1шт.
1c
K949333
CAB
FLOOR (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
1d
K953843
CAB FLOOR (990SK, 995SK, 996SK)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
K627710
PLUG
RUBBER PLUG - 3/4 in. dia. (990Q, 995Q, 996Q)
1шт.
K628092
PLUG,Cap, .547" OD
PLASTIC PLUG - 1/2 in. dia. (990Q, 995Q, 996Q)
1шт.
K627738
GROMMET
- 7/8 in. dia. (990Q, 995Q, 996Q)
1шт.
K627743
PLUG
GROMMET - 11/32 in. dia., 1/8 in. material
2шт.
K627744
GROMMET
- 11/32 in. dia., 1/4 in. material (990Q, 995Q, 996Q)
1шт.
2
K950492
PLATE
BLANKING PLATE - cross beam aperture (990Q, 995Q, 996Q)
1шт.
3
K950603
PAD
SEALING PAD (990Q, 995Q, 996Q)
2шт.
4
K602983
SCREW
SETSCREW - 3/8 UNC x 7/8 in. (990Q, 995Q, 996Q)
6шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in. (990Q, 995Q, 996Q)
6шт.
280136
NUT,3/8"-16, G8
(990Q, 995Q, 996Q) 3/8"-16, G8
6шт.
5
K950382
COVER
PLATE - shift lever aperture
1шт.
6
K602735
SCREW
SETSCREW - 1/4 UNC x 3/4 in. (Plate to cab floor)
4шт.
K626341
SPRING WASHER
SPRING WASHER - 1/4 in. (Plate to cab floor)
4шт.
7
K950983
HANDLE
GRAB HANDLE - right-hand (990Q, 995Q, 996Q)
1шт.
8
K950984
HANDLE
GRAB HANDLE - left-hand (990Q, 995Q, 996Q)
1шт.
9
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SETSCREW - 5/16 UNC x 3/4 in. (990Q, 995Q, 996Q)
4шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (990Q, 995Q, 996Q)
4шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16 UNC (990Q, 995Q, 996Q)
4шт.
10a
K955141
STEP
- left-hand (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, S/N 11088300 and after
1шт.
10b
K955142
STEP
- right-hand (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, S/N 11088300 and after
1шт.
11a
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SETSCREW - 5/16 UNC x 3/4 in. (990Q, 995Q, 996Q)
8шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, S/N 11088300 and after
1шт.
K626682
WASHER
- 5/16 in. (990Q, 995Q, 996Q)
4шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, S/N 11088300 and after
1шт.
10c
K954663
STEP
- left and right-hand (990Q, 995Q, 996Q)
2шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
11b
K602846
SCREW,5/16" - 18 x 5/8", Gr S
SETSCREW - 5/16 UNC x 5/8 in. (990Q, 995Q, 996Q)
7шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
11c
9635884
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
SETSCREW - 5/16 UNC x 1 in. (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
K607081
LOCK NUT
NUT - 5/16 UNC (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (990Q, 995Q, 996Q)
8шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
12a
K955451
STEP
EXTENSION BRACKET - left-hand step (High clearance) (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, S/N 11088300 and after
1шт.
K955450
STEP
EXTENSION BRACKET - right-hand step (High clearance) (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, S/N 11088300 and after
1шт.
12b
K953796
STEP
EXTENSION BRACKET - left-hand step (High clearance) (990Q, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
K953793
STEP
EXTENSION BRACKET - right-hand step (High clearance) (990, 995Q, 996Q)
1шт.
Used on models 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, up to S/N 11088300
1шт.
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SETSCREW - 5/16 UNC x 3/4 in (Brackets to cab floor) (990Q, 995Q, 996Q)
8шт.
K626682
WASHER
- 5/16 in. (Brackets to cab floor) (990Q, 995Q, 996Q)
4шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (Brackets to cab floor) (990Q, 995Q, 996Q)
8шт.
13
K949359
MOUNTING PARTS
MOUNTING BRACKET - left-hand front
1шт.
14
K949360
MOUNTING PARTS
MOUNTING BRACKET - right-hand front
1шт.
15a
K603272
SCREW
BOLT - 5/8 UNC x 1-1/4 in. (Brackets to main frame)
6шт.
15b
K603276
SCREW
BOLT - 5/8 UNC x 1-3/4 in. (Brackets to main frame)
2шт.
K19485
WASHER
SPRING WASHER - 5/8 in. (Brackets to main frame)
8шт.
16
K950379
MOUNTING PARTS
MOUNTING BRACKET - left-hand rear (Standard clearance)
1шт.
K950380
MOUNTING PARTS
MOUNTNG BRACKET - right-hand rear (Standard clearance)
1шт.
17
K952543
MOUNTING PARTS
MOUNTING BRACKET - left-hand rear (High clearance) (990Q, 995Q, 996Q)
1шт.
K952544
MOUNTING PARTS
MOUNTING BRACKET - right-hand rear (High clearance) (990Q, 995Q, 996Q)
1шт.
18
K603141
SCREW
SETSCREW - 1/2 UNC x 1-1/4 in. (Brackets to main frame)
10шт.
K626345
LOCK WASHER
SPRING WASHER - 1/2 in. (Brackets to main frame)
10шт.
19
K952704
SHIM
- 1/16 in. (Brackets to main frame)
2шт.
20
K949839
BUMPER
RUBBER MOUNTING - front
2шт.
21
K949838
DAMPER
RUBBER MOUNTING - rear
2шт.
22
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
(Rubber mountings) Hex, 3/8"-16 x 1", G5, Full Thd
16шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in. (To brackets)
16шт.
K19472
WASHER
- 3/8 in. (To brackets)
16шт.
280136
NUT,3/8"-16, G8
(To brackets) 3/8"-16, G8
16шт.
23a
K601332
BOLT
- 5/8 UNC x 4 in. (990Q, 995Q, 996Q)
2шт.
23b
K601378
BOLT
- 5/8 UNC x 6-1/2 in. (990S, 995SK, 996SK)
2шт.
24
K601324
BOLT
- 5/8 UNC x 3-3/4 in.
2шт.
25
K949668
WASHER
- 5/8 x 3-5/16 in., special, grooved
4шт.
26
K626930
WASHER
- 5/8 x 1-1/2 in.
4шт.
27
K626931
WASHER
- 5/8 x 3-1/2 in. special, plain
4шт.
K626855
WASHER
- 5/8 in.
4шт.
K19485
WASHER
SPRING WASHER - 5/8 in.
4шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
(990Q, 995Q, 996Q) 5/8"-11, G5
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
(990SK, 995SK, 996SK) 5/8"-11, G5
4шт.
K955524
PLATE
NUT - 5/8 UNC, special (990Q, 995Q, 996Q)
2шт.
Выбрано товаров: 84
