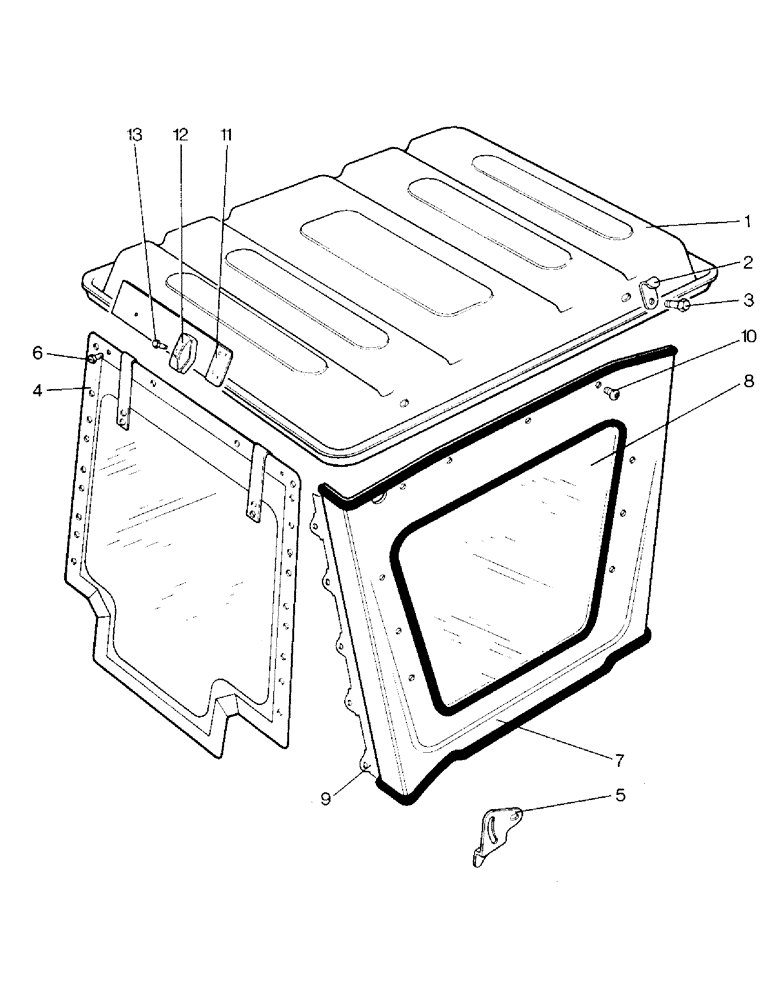

Запчасти Case IH 996 (L15-1) - CHASSIS, ROOF, SIDE PANELS AND REAR CURTAIN, METAL CLAD DB WEATHERFRAME, 990, 995, 996 (12) - CHASSIS

1

K772681

ROOF

ASSEMBLY

1шт.

2

K772319

BRACKET

LIFTING BRACKET

4шт.

3

K773277

BOLT

- 1/2 UNC, special, Serial Range: roof-frame

4шт.

K691857

WASHER

- special

4шт.

K691959

GROMMET

5шт.

K691965

COLLAR

BOSS

3шт.

4

K771376

SKIRT

REAR CURTAIN - replaces K772946

1шт.

5

K772960

SKIRT

CURTAIN HOOK - right-hand fender

1шт.

K773202

SKIRT

CURTAIN HOOK - left-hand fender

1шт.

6

K691892

SCREW

- 1/4 UNC x 1 in. (Rear, Serial Range: curtain-frame)

4шт.

K19470

WASHER

- 1/4 in. (Rear, Serial Range: curtain-frame)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Rear, Serial Range: curtain-frame)

4шт.

K691893

NUT

WING NUT - 1/4 UNC (Rear, Serial Range: curtain-frame)

4шт.

K773593

ROPE

- upper (Rear curtain)

2шт.

K773594

ROPE

- lower (Rear curtain)

2шт.

K774036

ATTACHMENT

RUBBER HOOP

2шт.

K773069

PANEL

SIDE PANEL - complete, right-hand, Includes: Ref. 7A & 9A

1шт.

7a

K772649

PANEL

SIDE PANEL - welded assembly, right-hand

1шт.

9a

K772895

WASHER

CURTAIN RAIL - right-hand

1шт.

K773073

PANEL, SIDE

SIDE PANEL - complete, left-hand, Includes: Ref. 7B & 9B

1шт.

7b

K772644

PANEL

SIDE PANEL - welded assembly, left-hand

1шт.

9b

K773003

CURTAIN RAIL - left-hand

1шт.

8

K772654

WINDOW

GLASS - side panel

2шт.

K774418

SPOOL

BOBBIN

5шт.

K692095

RIVET

5шт.

10

K603926

SCREW

- 1/4 UNC x 3/4 in., Serial Range: (Panels-frame)

24шт.

K773029

STUD

, Serial Range: (Panels-frame)

2шт.

K19470

WASHER

- 1/4 in., Serial Range: (Panels-frame)

26шт.

K626552

WASHER

SHAKEPROOF WASHER - 1/4 in., Serial Range: (Panels-frame)

26шт.

K607043

NUT

- 1/4 UNC, Serial Range: (Panels-frame)

2шт.

K773276

HOOK

COAT HOOK, Serial Range: (Panels-frame)

2шт.

11

K773199

PLATE

REAR NUMBER PLATE

1шт.

12

K773358

PLATE

LAMP - rear number plate

1шт.

K692044

COVER

1шт.

K692045

BASE

BULB HOLDER ASSEMBLY

1шт.

K692046

BASE

RUBBER BASE

1шт.

K692047

SCREW

1шт.

K692048

SPARE PART

LEAD

1шт.

13

K692069

SCREW

SETSCREW - 1/4 UNC x 1 in., Serial Range: (Lamp-plate)

3шт.

K19470

WASHER

- 1/4 in., Serial Range: (Lamp-plate)

3шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Lamp-plate)

3шт.

K691893

NUT

WING NUT - 1/4 UNC, Serial Range: (Lamp-plate)

3шт.

K773359

ELECTRICAL WIRE

LEAD -, Serial Range: lamp-connectors

1шт.

K67916

ELEC CONNECTOR

SINGLE CONNECTOR

4шт.

K773360

ELECTRICAL WIRE

LEAD - connectors to 3-way connector

1шт.

K691989

CLIP

, Serial Range: (Leads-cab)

1шт.

K692034

STRAP

CLIP, Serial Range: (Leads-cab)

3шт.

K692035

LINK

RETAINING LINK, Serial Range: (Leads-cab)

3шт.
