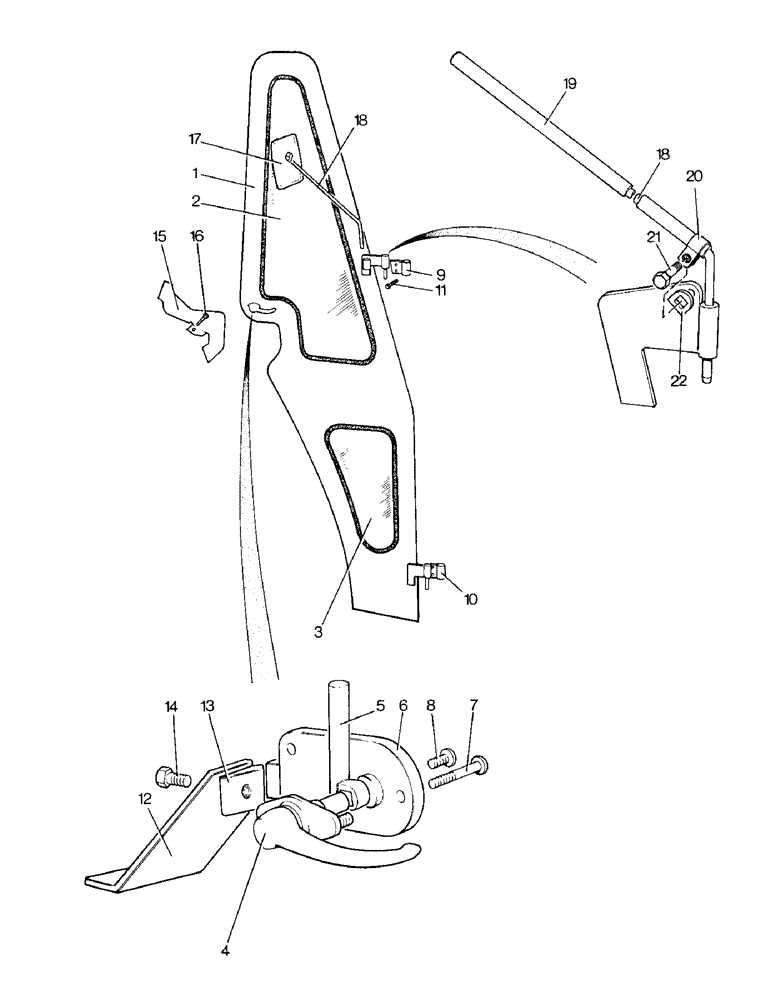

Запчасти Case IH 996 (L14-1) - CHASSIS, DOORS, CLAD DB WEATHERFRAME, 990, 995, 996 (12) - CHASSIS

K773103

DOOR

- right-hand, complete

1шт.

K773104

DOOR

- left-hand, complete

1шт.

1

K772955

DOOR - welded assembly, right-hand

1шт.

K772983

DOOR - welded assembly, left-hand

1шт.

2

K772676

WINDOW

GLASS - upper

1шт.

3

K772675

WINDOW

GLASS - lower

1шт.

4

K773205

DOOR

HANDLE - outer, right-hand door

1шт.

K773206

DOOR

HANDLE - outer, left-hand door

1шт.

K11109

NUT

- 2 BA, Serial Range: (Handle-door)

4шт.

K626340

RING

WASHER - 3/16 in., Serial Range: (Handle-door)

4шт.

5

K773240

DOOR

HANDLE - inner

2шт.

K773243

DOOR

KNOB - inner handle

2шт.

K773244

RUBBER

BOSS - right-hand

1шт.

K774050

BUSHING

RUBBER BOSS - left-hand

1шт.

6

K773203

DOOR

LATCH - right-hand door

1шт.

K773204

LATCH

- left-hand door

1шт.

7

K691954

SCREW

- no. 10 UNF x 1-1/4 in.

6шт.

K617080

NUT

- no. 10 UNF

6шт.

8

K692042

SCREW

- no. 10 UNF x 1/2 in.

2шт.

K626310

WASHER

- 3/16 in.

2шт.

K626340

RING

SPRING WASHER - 3/16 in.

8шт.

9

K773175

HINGE

- upper, right-hand door

1шт.

10

K773171

HINGE

- lower, right-hand door

1шт.

K773174

HINGE

- upper, left-hand door

1шт.

K773170

HINGE

- lower, left-hand door

1шт.

K774476

HINGE

PIN - upper hinges

2шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1-1/8 in. (Hinges to bulkhead)

8шт.

K19472

WASHER

- 3/8 in., Serial Range: (Hinges-bulkhead)

16шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in., Serial Range: (Hinges-bulkhead)

8шт.

280136

NUT,3/8"-16, G8

(Hinges to bulkhead) 3/8"-16, G8

8шт.

12

K772996

PLATE

BRACKET - right-hand striker plate

1шт.

K772995

PLATE

BRACKET - left-hand striker plate

1шт.

13

K773071

PLATE

STRIKER PLATE

2шт.

14

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Plates to brackets)

2шт.

K626682

WASHER

- 5/16 in., Serial Range: (Plates-brackets)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Plates-brackets)

2шт.

15

K773223

FENDER

EXTENSION - right-hand fender

1шт.

K773224

FENDER

EXTENSION - left-hand fender

1шт.

16

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- 1/4 UNc x 5/8 in., Serial Range: (Extensions-fenders)

2шт.

K19470

WASHER

- 1/4 in., Serial Range: (Extensions-fenders)

2шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Extensions-fenders)

2шт.

K607043

NUT

- 1/4 UNC, Serial Range: (Extensions-fenders)

2шт.

K614945

SCREW

SETSCREW - no. 10 UNF x 5/8 in., Serial Range: (Extensions-fenders)

2шт.

K626310

WASHER

- 3/16 in., Serial Range: (Extensions-fenders)

2шт.

K626340

RING

SPRING WASHER - 3/16 in., Serial Range: (Extensions-fenders)

2шт.

K617080

NUT

- no. 10 UNF, Serial Range: (Extensions-fenders)

2шт.

17

K773622

CAB

DRIVING MIRROR

1шт.

18

K774188

CAB

ARM - driving mirror, inner

1шт.

19

K774658

ARM

- driving mirror, outer

1шт.

20

K774186

CLIP

1шт.

21

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

22

K775292

PLATE

CLAMPING PLATE

1шт.
