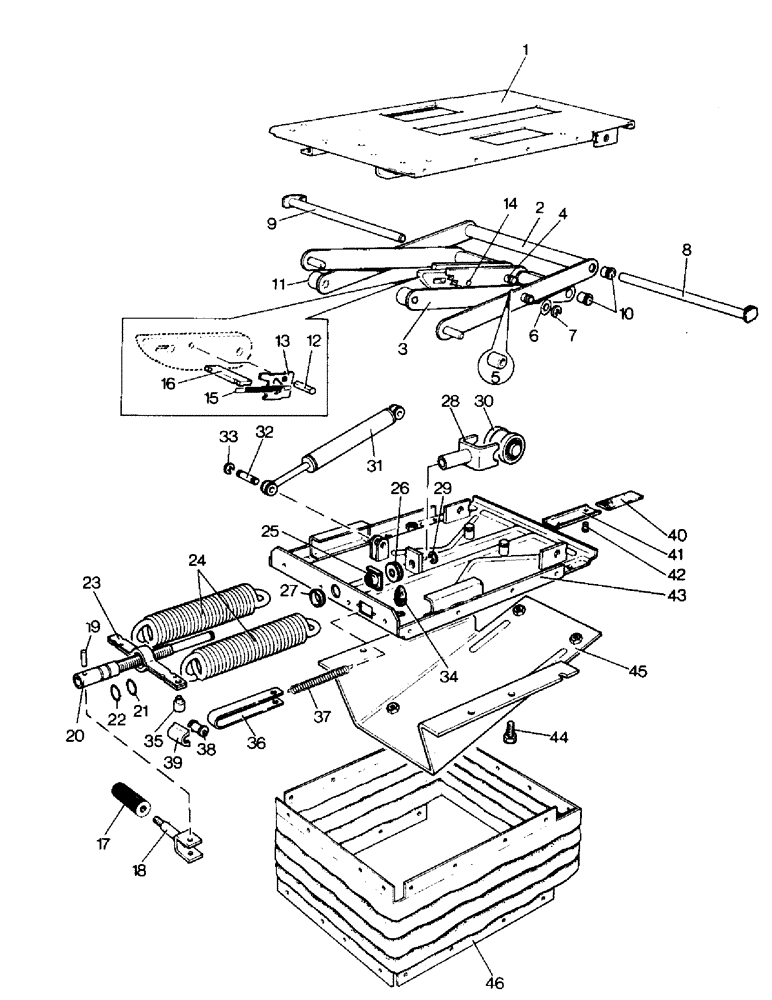

Запчасти Case IH 996 (L07-1) - CHASSIS, SEAT SUSPENSION, ARMCHAIR SEAT, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK (12) - CHASSIS

K953184

SEAT

SUSPENSION ASSEMBLY - part of K953182, Includes: parts listed below

1шт.

1

K964636

PLATE

TOP PLATE

1шт.

2

K964663

FRAME

SCISSORS - outer half

1шт.

3

K964664

FRAME

SCISSORS - inner half

1шт.

4

K964676

PIN

BRASS PEG - scissors inner half

2шт.

5

K965085

BUSHING

NYLON BUSH - replaces K964665 and K964666

2шт.

6

K626686

WASHER

- 1/2 in.

2шт.

7

K621587

RING, SNAP

"E" CLIP

2шт.

8

K964659

SHAFT

PIVOT SHAFT - 10-1/8 in., upper

1шт.

9

K964660

SHAFT

PIVOT SHAFT - 8-13/16 in., lower

1шт.

10

K964668

BUSHING

BUSH

4шт.

11

K964667

ROLLER

- nylon 13/6 x 1/2 x 5/8 in.

4шт.

12

K964675

PIN

1шт.

13

K964658

CAM

PLATE

2шт.

14

K964677

SPRING

BRASS PEG - spring anchor

2шт.

15

K964662

SPRING

2шт.

16

K964661

SPRING

RETAINER - springs

1шт.

K964647

ADJUSTER

- spring tension, Includes: Ref. 17 - 19

1шт.

17

K964641

KNOB

1шт.

18

K964642

FORK

1шт.

19

K964643

PIN

1шт.

20

K964646

SHAFT

SCREWED SHAFT, Includes: Ref. 21 & 22

1шт.

21

K964678

O-RING

"O" RING - red

1шт.

22

K964679

O-RING

"O" RING - black

1шт.

23

K964648

SPRING

CARRIER

1шт.

24

K964651

SPRING

2шт.

25

K964672

NUT

CAPTIVE NUT

1шт.

K964690

WASHER

- 15/16 x 5/16 x 1/16 in.

1шт.

26

K964673

BEARING

NEEDLE ROLLER BEARING

1шт.

K964674

WASHER

- 1-3/16 x 3/8 x 1/8 in.

1шт.

27

K964649

BUSHING

NYLON BUSH

1шт.

28

K964657

FORK

1шт.

29

K621592

RING, SNAP

"E" CLIP - 7/32 in.

1шт.

30

K964656

BEARING

NEEDLE ROLLER BEARING

1шт.

31

K964655

SHOCK ABSORBER

HYDRAULIC DAMPER

1шт.

32

K964654

PIN

- 9/32 x 1-1/8 in.

2шт.

33

K621592

RING, SNAP

"E" CLIP - 7/32 in.

4шт.

34

K962434

STOP

RUBBER BUMP STOP

2шт.

35

K964670

INDICATOR

NYLON BUTTON -, Serial Range: tape-carrier

1шт.

36

K964650

INDICATOR

TAPE

1шт.

37

K964680

SPRING

1шт.

38

K964653

ROLLER

NYLON ROLLER

1шт.

39

K964638

COVER

PLASTIC COVER - roller

1шт.

40

K964669

PAD

RUBBER PAD

1шт.

41

K964671

PLATE

BEARING PLATE

1шт.

42

K964683

RIVET

- plate to base plate

2шт.

43

K964637

BASE

PLATE

1шт.

44

K650029

SCREW

- M8 x 20 MM

6шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

6шт.

45

K953185

SEAT

SUPPORT BRACKET

1шт.

46

K964684

COVER

- suspension assembly

1шт.

K964645

RIVET

- plastic

30шт.

FOOTNOTE

1шт.

Not applicable to N. America

1шт.
