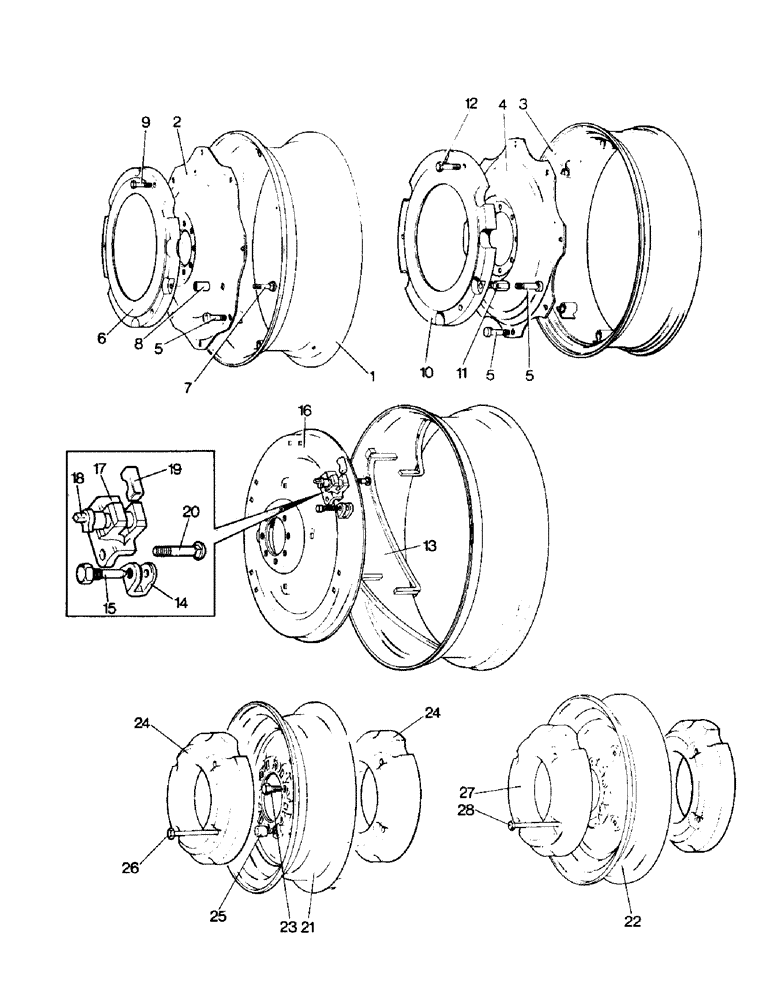

Запчасти Case IH 996 (L03-1) - CHASSIS, WHEELS AND BALLAST WHEELS (12) - CHASSIS

K946552

RIM

REAR RIM AND CENTRE ASSEMBLY - fits 12.4/11-36 or 13.6/12-36 tyres, Includes: Ref. 1A & 2A

2шт.

Valve hole was moved to the lug side of the rim.

1шт.

1a

K916742

WHEEL

REAR WHEEL RIM - W11 x 36

1шт.

2a

K946544

WHEEL

REAR WHEEL CENTRE

1шт.

K946551

RIM

REAR RIM AND CENTRE ASSEMBLY - fits 16.9/14-34 tyres, Includes: Ref. 2B

2шт.

2b

K946543

WHEEL

REAR WHEEL CENTRE

1шт.

K947707

RIM

REAR RIM AND CENTRE ASSEMBLY - fits 16.9/14-30 tyres, Includes: Ref. 3A - 5 and washer and nut

2шт.

3a

K947706

WHEEL

REAR WHEEL RIM - W14 x 30

1шт.

4a

K946542

WHEEL

REAR WHEEL CENTRE

1шт.

5

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8 in., square location

16шт.

K19475

WASHER

- 5/8 in.

16шт.

425-1110

NUT,5/8"-18, G5

16шт.

K21180

BALLAST

WEIGHT UNIT - U184 (For wheels K946552), Includes: Ref. 6 - 12 and spring washer

1шт.

6

K86167

WEIGHT

BALLAST WEIGHT (For wheels K946552)

4шт.

7

K690452

BOLT

COACH BOLT - 5/8 BSF x 2-7/8 in. (For wheels K946552)

6шт.

K19406

WHEEL NUT

- 5/8 BSF (For wheels K946552)

6шт.

8

K910181

BUSHING

DISTANCE PIECE (For wheels K946552)

6шт.

9

K19305

BOLT

- 5/8 BSF x 2 in. (For wheels K946552)

6шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (For wheels K946552)

12шт.

K911480

BALLAST

WEIGHT UNIT - U729 (For wheels K947707)

1шт.

10

K86167

WEIGHT

BALLAST WEIGHT (For wheels K947707)

4шт.

11

K914869

STUD

- 5/8 UNF, special (For wheels K947707)

6шт.

12

K19305

BOLT

- 5/8 BSF, x 2 in. (For wheels K947707)

6шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (For wheels K947707)

12шт.

K946548

RIM

REAR RIM AND CENTRE ASSEMBLY - fits 16.9/14-30 tyres, Includes: Ref. 13 - 20 and spring washer and nut

2шт.

13

K302516

RIM

REAR RIM - W14 x 30 (replaced K921201)

1шт.

14

K917337

STOP

BRACKET - wheel rim

2шт.

15

K200142

SCREW,Hex, 9/16" x 2 1/8"

SETSCREW - stop bracket, replaces K917338

2шт.

16

K946545

WHEEL DISC

REAR WHEEL CENTRE

1шт.

17

K917340

SUPPORT

BODY

5шт.

18

K200128

PIN

ECCENTRIC PIN - replaces K917339

5шт.

K917341

RING

SNAP RING - eccentric pin

5шт.

19

K917342

BLOCK

5шт.

20

K601323

BOLT

COACH BOLT - 5/8 UNC x 1-5/8 in., Serial Range: (Body-centre)

10шт.

K19484

LOCK WASHER

SPRING WASHER - 5/8 in., Serial Range: (Body-centre)

10шт.

K607035

NUT

- 5/8 UNC, Serial Range: (Body-centre)

10шт.

21a

K947941

WHEEL

FRONT WHEEL - 5.50F x 16, (Fits 7.50-16 tyres)

2шт.

21b

K921475

RIM

FRONT WHEEL - 5.50F x 16, heavy duty

2шт.

21c

K947937

WHEEL

FRONT WHEEL - 4.50E x 16, (Fits 6.00-16 tyres)

2шт.

21d

K949731

RIM

FRONT WHEEL - 5.50F x 18, (Fits 7.50-18 tyres)

2шт.

22

K947940

WHEEL

FRONT WHEEL - 4.50E x 19, (Fits 6.00-19 tyres)

2шт.

23

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

WHEEL BOLT - 1/2 UNC x 1 in.

12шт.

K909326

KIT

BALLAST WEIGHT UNIT - U475 (For wheel K947941), Includes: Ref. 24 - 26 adn spring washer and nut

1шт.

24

K909316

WEIGHT

BALLAST WEIGHT - 85 lb (For wheel K947941)

4шт.

25

K909324

BUSHING

SPACER (For wheel K947941), ballast weight

8шт.

26

K600831

BOLT

- 1/2 UNC x 7-1/2 in. (For wheel K947941), ballast weight

8шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in. (For wheel K947941), ballast weight

8шт.

K607004

NUT

- 1/2 UNC (For wheel K947941), ballast weight

8шт.

K907796

NO LONGER SERVICED

BALLAST WEIGHT UNIT - U427 (For wheels K947937 and K947940), Includes: Ref. 27 & 28 and spring washer and nut

1шт.

27

K909316

WEIGHT

BALLAST WEIGHT - 85 lb (For wheels K947937 and K947940)

8шт.

28

K600829

BOLT

- 1/2 UNC x 6 in. (For wheels K947937 and K947940), ballast weight

8шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in. (For wheels K947937 and K947940), ballast weight

8шт.

K607004

NUT

- 1/2 UNC (For wheels K947937 and K947940), ballast weight

8шт.
