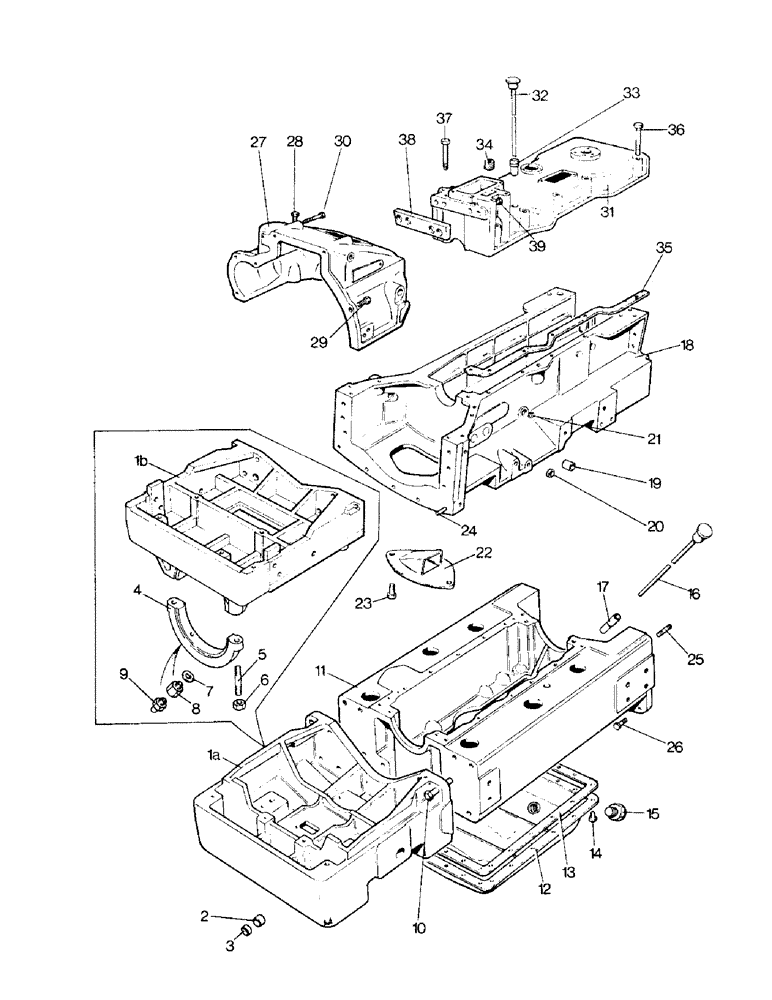

Запчасти Case IH 996 (L01-1) - CHASSIS, MAIN FRAME AND COVERS (12) - CHASSIS

1a

K964910

FRAME

FRONT EXTENSION - main frame, replaces K913687, Includes: Ref. 2 - 3 and grease fitting

1шт.

2

K15597

BUSHING

BUSH - trunnion pin

4шт.

K947516

TRUNNION

PIN - front axle

1шт.

K15596

RING,3.63mm Thk x 31.34mm ID

"O" RING - 1-1/4 in. internal dia., trunnion pin

1шт.

K915421

WASHER

THRUST WASHER - trunnion pin

2шт.

K15265

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

"O" RING - 2-1/8 in. internal dia.

2шт.

3

K623794

CORE

PLUG - 1-5/8 dia.

1шт.

K690973

FITTING

GREASE FITTING - 1/4 ANF x 90 degrees, trunnion pin

2шт.

1b

K200289

FRAME

FRONT EXTENSION - main frame, (Carraro 105159) (990 4WD, 995 4WD, 996 4WD), Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING CAP - part of K200289, (Carraro 93621) (990 4WD, 995 4WD, 996 4WD)

2шт.

K965422

RING

DOWEL - front extension to main frame, (Carraro 105159) (990 4WD, 995 4WD, 996 4WD)

2шт.

5

K965426

STUD

- (Carraro 97704) (990 4WD, 995 4WD, 996 4WD)

4шт.

6

K965427

NUT

- (Carraro 22436) (990 4WD, 995 4WD, 996 4WD)

4шт.

7

K965425

WASHER

SPRING WASHER - M12, (Carraro 22861) (990 4WD, 995 4WD, 996 4WD)

2шт.

8

K965424

ADAPTER

LOCATING ADAPTOR - (Carraro 91439) (990 4WD, 995 4WD, 996 4WD)

2шт.

9

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - (Carraro 24210) (990 4WD, 995 4WD, 996 4WD)

2шт.

10

K600604

SCREW

BOLT - 7/16 UNC x 1-3/4 in., Serial Range: (Extension-frame)

10шт.

10b

K608792

BOLT

- 7/16 UNC x 1-3/4 in. (Extension to frame) (990 4WD, 995 4WD, 996 4WD)

10шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in., Serial Range: (Extension-frame)

10шт.

11

K947517

FRAME

MAIN FRAME - front

1шт.

11b

K954099

FRAME

MAIN FRAME - front, (Mk4 4WD tractors, David Brown axle) (990 4WD, 995 4WD, 996 4WD)

1шт.

12

K904077

COVER

SUMP COVER

1шт.

13

K918684

GASKET,2.38mm Thk

- engine sump

1шт.

14

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.

18шт.

K19481

SPRING WASHER

WASHER - 5/16 in.

18шт.

14b

K608153

STUD

- special, 5/16 UNC, (Mk4 4WD tractors, David Brown axle) (990 4WD, 995 4WD, 996 4WD)

1шт.

15

K623825

PLUG

- 1/2 BSP, sump drain

1шт.

K626793

WASHER

SEALING WASHER - 7/8 in.

1шт.

16

K964772

DIPSTICK

- engine sump

1шт.

K14658

O-RING,0.07" Thk x 0.239" ID

"O" RING - 1/4 in., internal dia.

1шт.

17

K948224

SLEEVE

- engine dipstick

1шт.

18a

K951398

FRAME

MAIN FRAME - rear (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, 990 4WD, 995 4WD, 996 4WD)

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N 11073211

1шт.

Used on models 995, 995Q, 995G, 995SK, up to S/N 11073312

1шт.

18a

K951398

FRAME

MAIN FRAME - rear (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, 990 4WD, 995 4WD, 996 4WD)

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N 11073311 and after

1шт.

Used on models 995, 995Q, 995G, 995SK, S/N 11073702 and after

1шт.

18b

K951398

FRAME

MAIN FRAME - rear (990, 995, 996, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK, 990 4WD, 995 4WD, 996 4WD) (replaced K965013)

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N 11073211 and after

1шт.

Used on models 995, 995Q, 995G, 995SK, S/N 11073312 and after

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N 11073311

1шт.

Used on models 995, 995Q, 995G, 995SK, up to S/N 11073702

1шт.

18c

K951914

FRAME

MAIN FRAME - rear (990G, 995G, 996G)

1шт.

18d

K953947

FRAME

MAIN FRAME - rear, (Mk 4WD tractors, David Brown axle) (990 4WD, 995 4WD, 996 4WD)

1шт.

K628084

PLUG

PLASTIC PLUG - 5/8 in.

18шт.

Ref #18E - Use 353-11 Plastic Plug 12/15/95

1шт.

19

K628753

BUSHING

BUSH (Clutch cross shaft)

4шт.

K12250

FITTING

GREASE FITTING - 1/8 BSP (Clutch cross shaft)

2шт.

20a

K623790

CORE

PLUG - 1-1/8 in. dia. (Without independent clutch)

2шт.

20b

K623789

PLUG

CORE PLUG - 1 in. dia. (Without independent clutch)

4шт.

K19591

PLUG

- 1/8 BSP (Without independent clutch)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

SEALING WASHER - 3/8 in. (Without independent clutch) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

1шт.

21a

K623798

PLUG

CORE PLUG - 25 MM dia. (990, 995, 996, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

1шт.

21b

K951336

GAUGE

SIGHT GAUGE - transmission oil level (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

22

K947404

COVER

CLUTCH PIT COVER

1шт.

K19470

WASHER

- 1/4 in.

2шт.

23

K602733

SCREW

SETSCREW - 1/4 UNC x 5/8 in.

2шт.

24

K621826

PIN

DOWEL - 5/8 x 1-1/8 in. (Front to rear main frames)

2шт.

25a

K608338

STUD

- 7/16 UNC x 3-1/8 in. (Front to rear main frames)

4шт.

25b

K608311

STUD

- 7/16 UNC x 2-5/16 in. (Front to rear main frames)

2шт.

26

K600604

SCREW

BOLT - 7/16 UNC x 1-3/4 in. (Front to rear main frames)

4шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Front to rear main frame)

10шт.

280717

NUT,7/16"-14, G5

(Front to rear main frame) 7/16"-14, G5

4шт.

27a

K943306

CLUTCH

HOUSING (990, 995, 996, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

1шт.

27b

K949718

HOUSING

CLUTCH HOUSING (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

28a

K600416

BOLT

- 3/8 UNC x 3 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

28b

K602912

SET SCREW

SETSCREW - 3/8 UNC x 2 in. (990, 995, 996, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

6шт.

28b

K602912

SET SCREW

SETSCREW - 3/8 UNC x 2 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

10шт.

29

K600410

BOLT

- 3/8 UNC x 2-1/4 in.

1шт.

30

K600425

BOLT

- 3/8 UNC x 5-1/4 in.

2шт.

280136

NUT,3/8"-16, G8

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 UNC

3шт.

31a

K945211

COVER

GEARBOX COVER (990, 995, 996, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

1шт.

31b

K950407

COVER

GEARBOX COVER (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

32

K947615

DIPSTICK

- transmission sump (990, 995, 996, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

1шт.

33

K942348

SLEEVE

- dipstick (990, 995, 996, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

1шт.

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

"O" RING - 7/16 in. internal dia. (990, 995, 996, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

1шт.

34

K12362

PLUG

TAPER PLUG - 1 in. BSP, oil filler (990, 995, 996, 990G, 995G, 996G, 990 4WD, 995 4WD, 996 4WD)

1шт.

35

K929602

GASKET

(Gearbox cover to main frame)

2шт.

36a

K600615

BOLT

- 7/16 UNC x 3-1/4 in. (Gearbox cover to main frame)

9шт.

36b

K600665

BOLT

- 7/16 UNC x 6-3/4 in. (Gearbox cover to main frame)

1шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Gearbox cover to main frame)

10шт.

37

K600459

BOLT

- 3/8 UNC x 6-1/2 in. (Gearbox cover to main frame)

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Gearbox cover to main frame)

2шт.

38

K904079

WEDGE

(Gearbox cover to clutch housing)

1шт.

K904080

SHIM,.040" Thk

(Gearbox to clutch housing) .040" Thk

1шт.

39a

K600616

BOLT

- 7/16 UNC x 3-1/2 in. (Gearbox to clutch housing)

2шт.

39b

K600663

BOLT

- 7/16 UNC x 6-1/4 in. (Gearbox to clutch housing)

1шт.

39c

K600610

BOLT

- 7/16 UNC x 2-1/2 in. (Gearbox to clutch housing)

1шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Gearbox to clutch housing)

4шт.
