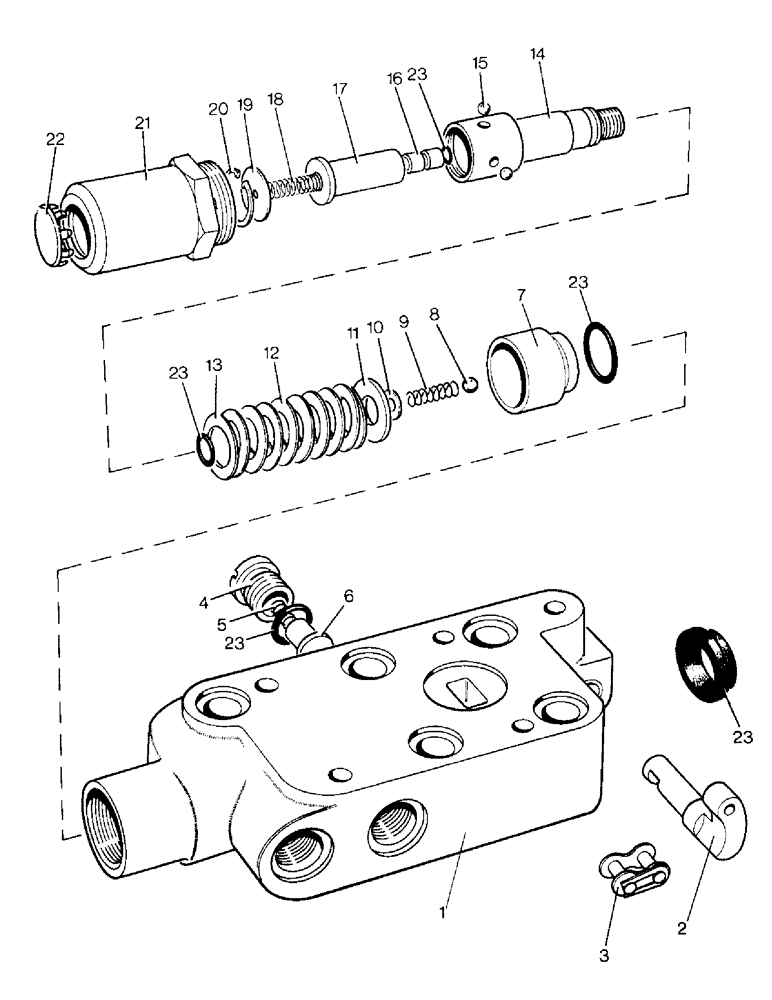

Запчасти Case IH 996 (E20-1) - SELECTAMATIC HYDRAULIC SYSTEM, DOUBLE-ACTING TAKE-OFF VALVE PART OF LIVE TAKE-OFF VALVE UNITS (07) - HYDRAULIC SYSTEM

1a

K956421

VALVE

LIVE TAKE-OFF VALVE ASSEMBLY, Includes: Ref. 2A - 22

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11088300 and after

1шт.

1b

K943825

VALVE

LIVE TAKE-OFF VALVE ASSEMBLY, Includes: Ref. 2A - 22

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11088300

1шт.

2a

K965190

LEVER

SPINDLE - with key K622386

1шт.

Use K965796 w/K19602 12/15/95

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11088300 and after

1шт.

2b

K963588

LEVER

SPINDLE - used with key K622382

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11088300

1шт.

3

K963587

LINK

-, Serial Range: spindle-spool

1шт.

4

K962065

PLUG

(Non-return valve)

1шт.

5

K962067

SPRING

(Non-return valve)

1шт.

6

K962066

PLUNGER

(Non-return valve)

1шт.

7

K962060

BUSHING

BUSH - body

1шт.

8

K963579

BALL

STEEL BALL (Kick-out valve)

1шт.

9

K963580

SPRING

(Kick-out valve)

1шт.

10a

K962081

SHIM,.005" Thk

Kick-out valve .005" Thk

1шт.

10b

K962080

SHIM,.010" Thk

(Kick-out valve) .010" Thk

1шт.

11

K962082

DISC

WASHER - (Spool centering)

1шт.

12

K964904

SPRING

(Spool centering)

1шт.

13

K962078

WASHER

(Spool centering)

1шт.

14

K963581

RETAINER

(Spool detent)

1шт.

15

K11483

BALL

STEEL BALL (Spool detent)

3шт.

16

K962071

PISTON

(Detent release)

1шт.

17

K963574

PLUNGER

(Detent release)

1шт.

18

K962073

SPRING

(Detent release)

1шт.

19

K962079

WASHER

(Detent release)

1шт.

20

K962076

RING, SNAP

CIRCLIP (Detent release)

1шт.

21

K963575

CAP

- body

1шт.

22

K962074

PLUG

- cap

1шт.

23

K962083

GASKET KIT

SEAL PACK - 5 "O" rings, 2 wiper seals

1шт.

K920826

O-RING

PLUG - 3/4 UNF

2шт.

K623589

O-RING

"O" RING - 11/16 in. internal dia.

2шт.
