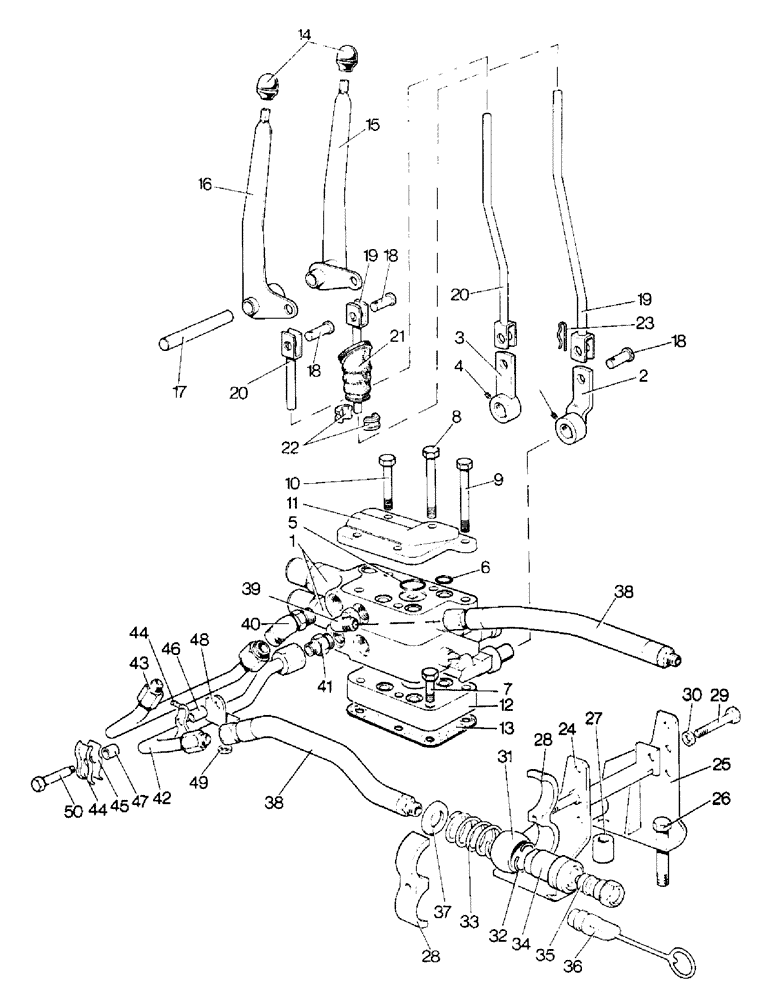

Запчасти Case IH 996 (E19-1) - SELECTAMATIC HYDRAULIC SYSTEM, TWIN LIVE TAKE-OFF VALVE UNITS OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

K964526

KIT

TWIN TAKE-OFF VALVE - U1910 and hand controls, U1914

1шт.

K931849

SPARE PART

TWIN LIVE TAKE-OFF VALVE UNITE - U1910

1шт.

K931851

SPARE PART

HAND CONTROLS FOR TWIN VALVE - U1914

1шт.

K930229

NO LONGER SERVICED

PIPES AND COUPLINGS FOR TWIN VALVE - U1399

1шт.

1a

K956421

VALVE

TAKE-OFF VALVE ASSEMBLY - See Figure E20-1

1шт.

Used on models 990SK, 995SK, 996SK, S/N 11088300 and after

1шт.

1b

K943825

VALVE

TAKE-OFF VALVE ASSEMBLY - See Figure E20-1

2шт.

Used on models 990SK, 995SK, 996SK, up to S/N 11088300

1шт.

2

K950851

LEVER

- cranked

1шт.

3

K950854

LEVER

- straight

1шт.

K622386

KEY

- Woodruff no. 404

2шт.

Used on models 990SK, 995SK, 996SK, S/N 11088300 and after

1шт.

K622382

KEY

- Woodruff no. 403

1шт.

Used on models 990SK, 995SK, 996SK, up to S/N 11088300

1шт.

4

K606322

SCREW

GRUBSCREW - 5/16 UNC x 3/8 in.

2шт.

5

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

"O" RING - 13/16 in. internal dia.

2шт.

6

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING - 11/16 in. internal dia.

10шт.

7

K600510

BOLT

- 3/8 UNC x 2 in.

1шт.

8

K600513

BOLT

- 3/8 UNC x 6 in.

2шт.

9

K600514

BOLT

- 3/8 UNC x 6-1/4 in.

1шт.

10

K600512

BOLT

- 3/8 UNC x 4-1/2 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

6шт.

11

K919242

COVER

1шт.

12

K962085

BASE

PLATE

1шт.

13

K917387

GASKET

-, Serial Range: baseplate-axle

1шт.

14

K950493

KNOB

2шт.

15

K950762

LEVER

HAND LEVER

1шт.

16

K950766

LEVER

HAND LEVER

1шт.

K613984

SCREW

- no. 10 UNF x 1/2 in.

2шт.

17

K950863

SHAFT

1шт.

18

K950866

LARGE PIN

CLEVIS PIN

4шт.

K623605

PIN

SPLIT PIN - 1/16 x 1/2 in.

2шт.

19

K950847

ROD

CONNECTING ROD

1шт.

20

K950849

ROD

CONNECTING ROD

1шт.

21

K950691

SEAL

GAITER

2шт.

22

K950861

BUSHING

SPLIT BUSH - halves

4шт.

23

K950865

CLIP

RETAINING CLIP

2шт.

24

K940753

MOUNTING PARTS

SUPPORT BRACKET - left-hand

1шт.

25

K940752

MOUNTING PARTS

SUPPORT BRACKET - right-hand

1шт.

26

K600896

BOLT

- 1/2 UNC x 3-1/2 in.

4шт.

K19474

HARDWARE

WASHER - 1/2 in.

1шт.

27

K627074

BUSHING

DISTANCE PIECE

2шт.

28

K924286

MOUNTING PARTS

MOUNTING FRAME

4шт.

29

K600703

BOLT

- 7/16 UNC x 3 in.

1шт.

30

K627056

BUSHING

DISTANCE PIECE

1шт.

K626344

WASHER, LOCK

SPRING WASHER - 7/16 in.

1шт.

280717

NUT,7/16"-14, G5

1шт.

31

K924284

RING

GIMBAL RING

4шт.

32

K924285

RING

RETAINING RING

4шт.

33

K625249

SPRING

4шт.

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING - Aeroquip, Includes: Ref. 34

4шт.

34

K929247

BREAKER POINTS

COUPLING - tractor half, Aeroquip

1шт.

35

K921982

BREAKER POINTS

COUPLING - implement half, Aeroquip

1шт.

36

K921217

PLUG

DUST COVER - quick release coupling, tractor half

4шт.

K965185

COVER

DUST COVER - quick release coupling, implement half

4шт.

37

K626794

WASHER

- special

4шт.

38

K924710

HOSE

FLEXIBLE PIPE - 1/2 BSP - 3/4 UNF x 16-1/4 in.

4шт.

39

K622114

FITTING

ELBOW - 3/4 UNF

2шт.

Not available in North America

1шт.

40

K622119

FITTING

ELBOW - 3/4 - 7/8 UNF

1шт.

41

K626062

FITTING

ADAPTOR - 3/4 - 7/8 UNF

1шт.

42

K943049

PIPE

- lower

1шт.

43

K943047

PIPE ASSY.

PIPE - upper

1шт.

44

K916899

BRACKET

CLAMP (Pipes to rear axle case)

2шт.

45

K940758

PACKING

(Pipes to rear axle case)

2шт.

46

K65701

BUSHING

DISTANCE PIECE - 1/2 in. (Pipes to rear axle case)

1шт.

47

K627026

BUSHING

DISTANCE PIECE - 1-1/8 in. (Pipes to rear axle case)

1шт.

48

K940759

SUPPORT

ANGLE BRACKET (Pipes to rear axle case)

1шт.

49

K627040

BUSHING

DISTANCE PIECE - 1/4 in. (Pipes to rear axle case)

1шт.

50

K600316

BOLT

- 5/16 UNC x 2-1/4 in. (Pipes to rear axle case)

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Pipes to rear axle case)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Pipes to rear axle case)

1шт.
