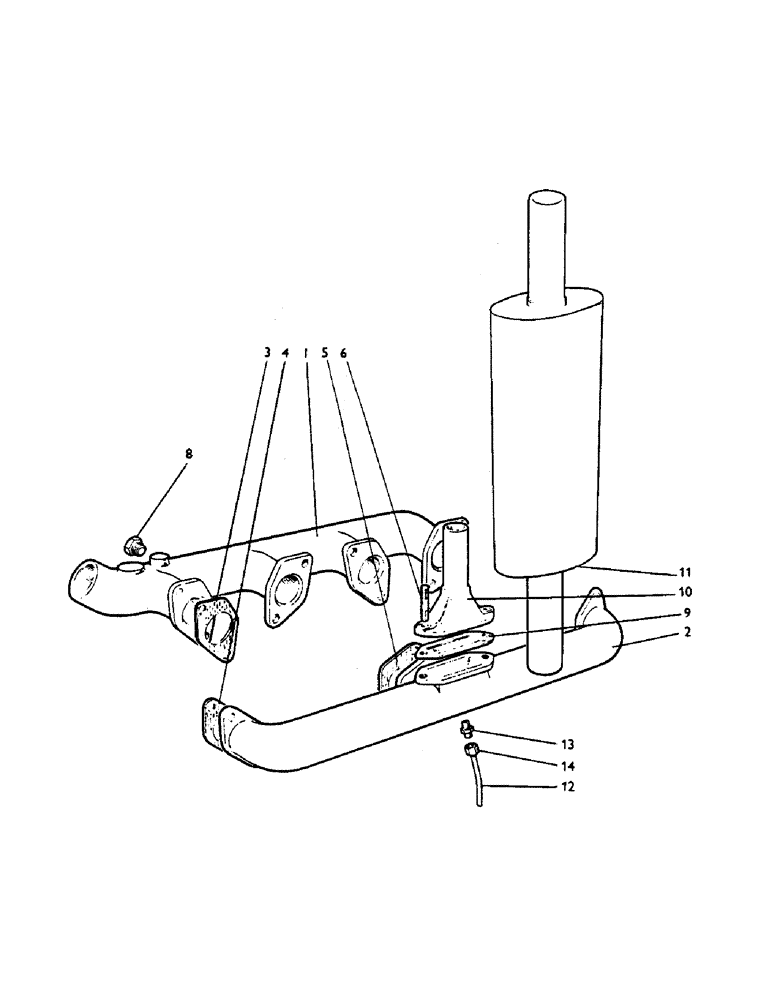

Запчасти Case IH 996 (A28) - ENGINE, MANIFOLDS AND SILENCER, 990, 995, 996, 1210 AND 1212 TRACTORS (01) - ENGINE

1

K921473

X

MANIFOLD, air inlet

1шт.

2a

K906744

MANIFOLD

exhaust

1шт.

2b

K919574

X

MANIFOLD, downswept exhaust (1210, 1212)

1шт.

3

K921730

MANIFOLD GASKET

inlet manifold

4шт.

4

K907344

MANIFOLD GASKET

exhaust manifold

2шт.

5

K907343

GASKET

exhaust manifold

1шт.

280136

NUT,3/8"-16, G8

17шт.

6

K608203

STUD

3/8 UNC x 1-7/16 in.

2шт.

8

K619528

PLUG

plastic, 7/8 UNF

1шт.

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

SEALING WASHER, 7/8 in.

1шт.

9

K68327

GASKET

, Serial Range: manifold-flange

1шт.

10

K928275

FLANGE

exhaust

1шт.

11a

K926833

MUFFLER

SILENCER, (poppy red)

1шт.

11b

K928712

MUFFLER

SILENCER, black

1шт.

Ref #11b - K928712 has a 1 3/4" dia. stack - no rain cap available from d.b. or Eng. that would be standard for this stack.

1шт.

11c

K928704

MUFFLER

SILENCER, with exhaust brake, replaces K926834

1шт.

12

K928668

PIPE,0.25" OD x 14" L

exhaust manifold drain

1шт.

13

K626051

FITTING

UNION, 1/8 BSP

1шт.

K622402

FERRULE

OLIVE, 1/4 in.

1шт.

14

K617421

PIPE UNION NUT

UNION NUT, 1/8 BSP

1шт.

990 = E64035

1шт.

1210 = E751229 (Simms)

1шт.

1210 = E801422 (Bosch)

1шт.

1212 = E2240 10/13/95

1шт.

New Design Exhaust Flange & Muffler P B 11-78. 990 = E53069

1шт.

K962705 Heater, Manifold

1шт.
