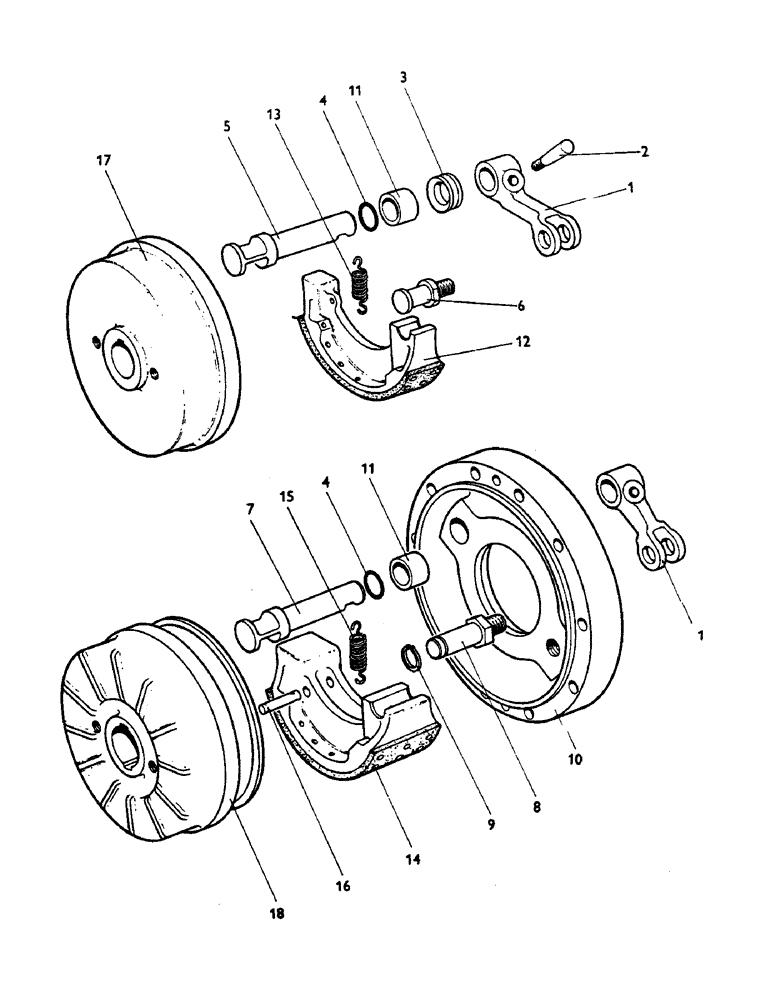

Запчасти Case IH 996 (G10) - BRAKES, BRAKE DRUMS AND SHOES - ALL MODELS (5.1) - BRAKES

1a

K929624

LEVER

CAM LEVER, left-hand, 4-1/2 in (885, 990, 995, 996)

1шт.

K928589

LEVER

CAM LEVER, right-hand, 4-1/2 in (990, 995, 996)

1шт.

K928589

LEVER

CAM LEVER, right-hand, 4-1/2 in (885)

2шт.

1b

K940580

LEVER

CAM LEVER, left and right-hand, 5 in (1210, 1212)

2шт.

2

K609425

LARGE PIN

COTTER PIN, 3/8 UNC

2шт.

K19472

WASHER

3/8 in

2шт.

K11522

WASHER

SHAKEPROOF WASHER, 3/8 in

2шт.

280136

NUT,3/8"-16, G8

2шт.

3

K85417

SEAL

DIRT EXCLUDER

2шт.

4

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

'O' RING, 1 in dia.

2шт.

5a

K912000

BRAKE

CAMSHAFT, left-hand, 1-3/4 in shoes (885)

1шт.

K912001

BRAKE

CAMSHAFT, right-hand, 1-3/4 in shoes (885)

1шт.

K912002

GUARD

DUST SHIELD, brake camshaft, 1-3/4 in shoes (885)

2шт.

5b

K30832

BRAKE

CAMSHAFT, left-hand, 1-3/4 in shoes (990)

1шт.

K30831

BRAKE

CAMSHAFT, right-hand, 1-3/4 in shoes, (990)

1шт.

6a

K906002

PIN

FULCRUM PIN, 1-3/4 in shoes (885, 990)

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in, 1-3/4 in shoes (885, 990, 995, 996)

2шт.

5c

K910406

BRAKE

CAMSHAFT, left-hand, 2-1/2 in shoes (995, 996)

1шт.

K910405

BRAKE

CAMSHAFT, right-hand, 2-1/2 in shoes (995, 996)

1шт.

6b

K926164

PIN

FULCRUM PIN, 2-1/2 in shoes (995, 996)

2шт.

7

K920438

BRAKE

CAMSHAFT, left-hand, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

1шт.

K920437

BRAKE

CAMSHAFT, right-hand, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

1шт.

8

K921032

PIN

FULCRUM PIN, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

2шт.

K19497

WASHER

7/8 in, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

2шт.

9

K34454

RING, SNAP

CIRCLIP, 7/8 in, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

2шт.

10

K920432

ADAPTER

ADAPTOR PLATE, left-hand, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

1шт.

K920431

ADAPTER

ADAPTOR PLATE, right-hand, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

1шт.

11a

K30835

BUSHING

BUSH, axle case (885, 990, 995, 996)

4шт.

11b

K30835

BUSHING

BUSH, axle case (1210, 1212)

6шт.

12a

K903806

BRAKE ASSY.

BRAKE SHOE, with lining, 1-3/4 in shoes (885, 990)

4шт.

K960595

PADDING

RRAKE LINING (4) AND RIVET PACK, 1-3/4 in shoes (885, 990)

1шт.

13

K63462

SPRING

brake shoes, 1-3/4 in shoes (885, 990)

4шт.

12b

K921494

BRAKE SHOE

with lining, 2-1/2 in shoes (995, 996)

4шт.

K962266

KIT

BRAKE LINING (4) AND RIVET PACK, 2-1/2 in shoes (995, 996)

1шт.

13

K63462

SPRING

brake shoes, 2-1/2 in shoes (995, 996)

4шт.

14

K920442

SHOE

BRAKE SHOE, with lining, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

4шт.

K964542

KIT

BRAKE LINING (4) AND RIVET PACK, replaces K962269, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

1шт.

With the K964542 Brake Lining, if K6244048 should be 50 rivets, if K624049, should be 26 rivets. 10/17/95

1шт.

15

K624930

SPRING

brake shoes, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

4шт.

16

K920446

PIN

brake shoes, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

8шт.

K11933

PIN

SPLIT PIN, 1/8 x 5/8 in, 3-1/2 in shoes (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

16шт.

17a

K905641

BRAKE

DRUM, 1-3/4 in wide (885, 990)

2шт.

17b

K917989

BRAKE

DRUM, 2-1/2 in wide (995, 996)

2шт.

18

K921829

BRAKE DRUM

3-1/2 in wide (1210, 1212 and 990, 995, 996 with heavy duty rear axle case)

2шт.

The description on Figure G11 Should be extended to include (Rear Wheel Brakes) 10/17/95

1шт.
