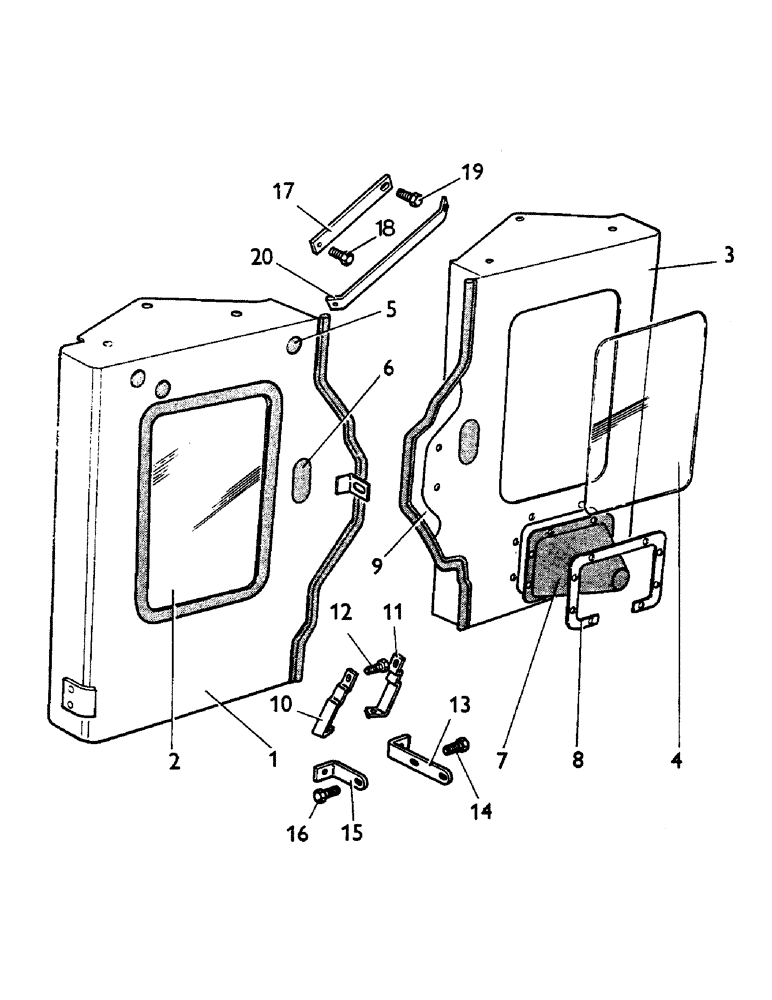

Запчасти Case IH 996 (L66) - CHASSIS, BULKHEADS - ALL MODELS WITH CLAD DB WEATHERFRAME (12) - CHASSIS

K773435

PANEL

BULKHEAD PANEL, complete, right-hand (1210, 1212), Includes: Ref. 1A - 6 and grommet

1шт.

1a

K772813

BULKHEAD PANEL, welded assembly (1210, 1212)

1шт.

2a

K772748

GLASS

PANEL (1210, 1212)

1шт.

5

K691967

GROMMET

(1210, 1212)

3шт.

6

K691968

GROMMET

(1210, 1212)

1шт.

K691959

GROMMET

3/8 in (1210, 1212)

2шт.

K773436

PANEL

BULKHEAD PANEL, complete, left-hand, manual steering (1210, 1212), Includes: Ref. 3A - 8A and rivet

1шт.

3a

K772713

BULKHEAD PANEL, welded assembly (1210, 1212)

1шт.

4a

K772747

GLASS

PANEL (1210, 1212)

1шт.

K773451

BOOT

GAITER ASSEMBLY (1210, 1212), Includes: Ref. 7A and durable dot button, socket, eyelet, and stud

1шт.

7a

K773428

BOOT

GAITER (1210, 1212)

1шт.

K691973

BUTTON

DURABLE DOT BUTTON (1210, 1212)

3шт.

K691982

SOCKET/RECEPTACLE

SOCKET(1210, 1212)

3шт.

K691983

SHANK

EYELET (1210, 1212)

3шт.

K691984

STUD

(1210, 1212)

3шт.

8a

K773429

CLAMP

GAITER CLAMP, gaiter to bulkhead (1210, 1212)

1шт.

K691972

RIVET

gaiter to bulkhead (1210, 1212)

11шт.

K773434

PANEL

BULKHEAD PANEL, complete, left-hand, hydrostatic steering (1210, 1212), Includes: Ref. 3B & 4B

1шт.

3b

K772264

BULKHEAD PANEL, welded assembly (1210, 1212)

1шт.

4b

K772748

GLASS

PANEL (1210, 1212)

1шт.

10

K773028

SUPPORT

right-hand bulkhead (1210, 1212)

1шт.

11

K772680

SUPPORT

left-hand bulkhead (1210, 1212)

1шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bulkheads to supports and supports to frame platforms (1210, 1212) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

K19472

WASHER

3/8 in, bulkheads to supports and supports to frame platforms (1210, 1212)

4шт.

K19482

SPRING WASHER

SPRING WASHER, bulkheads to supports and supports to frame platforms (1210, 1212)

4шт.

280136

NUT,3/8"-16, G8

Bulkheads to supports and supports to frame platforms (1210, 1212) 3/8"-16, G8

4шт.

K773430

PANEL

BULKHEAD PANEL, complete, right-hand (996), Includes: Ref. 1B - 6

1шт.

1b

K773420

SPARE PART

BULKHEAD PANEL, welded assembly (996)

1шт.

2b

K772943

GLASS

PANEL (996)

1шт.

5

K691967

GROMMET

(996)

3шт.

6

K691968

GROMMET

(996)

1шт.

K773744

PANEL

BULKHEAD PANEL, complete, left-hand, manual steering (996), Includes: Ref. 3C - 8B and rivet

1шт.

3c

K773743

PANEL

BULKHEAD PANEL, welded assembly (996)

1шт.

4c

K772944

GLASS

PANEL (996)

1шт.

K691968

GROMMET

(996)

1шт.

K773437

BOOT

GAITER ASSEMBLY (996), Includes: Ref. 7B and durable dot button, socket, eyelet, and stud

1шт.

7b

K773386

BOOT

GAITER (996)

1шт.

K691973

BUTTON

DURABLE DOT BUTTON (996)

3шт.

K691982

SOCKET/RECEPTACLE

SOCKET (996)

3шт.

K691983

SHANK

EYELET (996)

3шт.

K691984

STUD

(996)

3шт.

8b

K774163

CLAMP

GAITER CLAMP (996)

1шт.

K692059

RIVET

(996)

10шт.

K774243

PANEL

BULKHEAD PANEL, complete, left-hand, hydrostatic steering (996)

1шт.

3d

K773743

PANEL

BULKHEAD PANEL, welded assembly (996)

1шт.

4c

K772944

GLASS

PANEL (996)

1шт.

K691968

GROMMET

(996)

1шт.

K774166

BOOT

GAITER ASSEMBLY (996)

1шт.

7c

K774165

GAITER (996)

1шт.

K691973

BUTTON

DURABLE DOT BUTTON (996)

2шт.

K691982

SOCKET/RECEPTACLE

SOCKET (996)

2шт.

K691983

SHANK

EYELET (996)

2шт.

K691984

STUD

(996)

2шт.

8b

K774163

CLAMP

GAITER CLAMP (996)

1шт.

K692059

RIVET

(996)

10шт.

13

K773597

SUPPORT

bulkheads (996)

2шт.

14

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

SETSCREW, 5/8 UNC x 1 in, Support to bulkhead (996)

2шт.

K19472

WASHER

3/8 in, support to bulkhead (996)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, support to bulkhead (996)

2шт.

280136

NUT,3/8"-16, G8

(996) 3/8"-16, G8

2шт.

K773373

PANEL

BULKHEAD PANEL, complete, right-hand (990, 995), Includes: Ref. 1C - 6

1шт.

1c

K772792

PANEL

BULKHEAD PANEL, welded assembly (990, 995)

1шт.

2b

K772943

GLASS

PANEL (990, 995)

1шт.

5

K691967

GROMMET

(990, 995)

3шт.

6

K691968

GROMMET

(990, 995)

1шт.

K773250

PANEL

BULKHEAD PANEL, complete, left-hand, manual steering (990, 995), Includes: Ref. 3E - 8B and rivet

1шт.

3e

K772812

PANEL

BULKHEAD PANEL, welded assembly (990, 995)

1шт.

4d

K772994

WASHER

GLASS PANEL (990, 995)

1шт.

K691968

GROMMET

(990, 995)

1шт.

K773437

BOOT

GAITER ASSEMBLY (990, 995), Includes: Ref. 7B and durable dot button, socket, eyelet, and stud

1шт.

7b

K773386

BOOT

GAITER (990, 995)

1шт.

K691973

BUTTON

DURABLE DOT BUTTON (990, 995)

3шт.

K691982

SOCKET/RECEPTACLE

SOCKET (990, 995)

3шт.

K691983

SHANK

EYELET (990, 995)

3шт.

K691984

STUD

(990, 995)

3шт.

8b

K774163

CLAMP

GAITER CLAMP (990, 995)

2шт.

K692059

RIVET

(990, 995)

10шт.

K774182

PANEL

BULKHEAD PANEL, complete, left-hand, hydrostatic steering (990, 995), Includes: Ref. 3F - 8B and rivet

1шт.

3f

K772812

PANEL

BULKHEAD PANEL, welded assembly (990, 995)

1шт.

4d

K772944

GLASS

PANEL (990, 995)

1шт.

K691968

GROMMET

(990, 995)

1шт.

K774166

BOOT

GAITER ASSEMBLY (990, 995), Includes: Ref. 7C and durable dot button, socket, eyelet, and stud

1шт.

7c

K774165

GAITER (990, 995)

1шт.

K691973

BUTTON

DURABLE DOT BUTTON (990, 995)

2шт.

K691982

SOCKET/RECEPTACLE

SOCKET (990, 995)

2шт.

K691983

SHANK

EYELET (990, 995)

2шт.

K691984

STUD

(990, 995)

2шт.

8b

K774163

CLAMP

GAITER CLAMP (990, 995)

1шт.

K692059

RIVET

(990, 995)

8шт.

15

K773595

SUPPORT, bulkheads (990, 995)

2шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

SETSCREW, 5/8 UNC x 1 in, Support to bulkhead (990, 995)

2шт.

K19472

WASHER

5/8 in, support to bulkhead (990, 995)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, support to bulkhead (990, 995)

2шт.

280136

NUT,3/8"-16, G8

(990, 995) 3/8"-16, G8

2шт.

K773431

PANEL

BULKHEAD PANEL, complete, right-hand (885), Includes: Ref. 1D & 2C and grommets

1шт.

1d

K772759

PANEL

BULKHEAD PANEL, welded assembly (885)

1шт.

2c

K772945

GLASS

PANEL (885)

1шт.

K691967

GROMMET

(885)

3шт.

K691968

GROMMET

(885)

1шт.

K774199

PANEL

BULKHEAD PANEL, complete, left-hand, manual steering (885), Includes: Ref. 3G - 8C and rivet

1шт.

3g

K774200

PANEL

BULKHEAD PANEL, welded assembly (885)

1шт.

9a

K774161

COVER

PLATE ASSEMBLY (885)

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

SETSCREW, No. 10 UNF x 1/2 in (885)

3шт.

4e

K772945

GLASS

PANEL (885)

1шт.

K691968

GROMMET

(885)

1шт.

K774935

BOOT

GAITER ASSEMBLY (885), Includes: Ref. 7B and durable dot button, socket, eyelet, and stud

1шт.

7b

K773386

BOOT

GAITER (885)

1шт.

K691973

BUTTON

DURABLE DOT BUTTON (885)

3шт.

K691982

SOCKET/RECEPTACLE

SOCKET (885)

3шт.

K691983

SHANK

EYELET (885)

3шт.

K691984

STUD

(885)

3шт.

8c

K774206

CLAMP

GAITER CLAMP, gaiter to bulkhead (885)

1шт.

8c

K774206

CLAMP

GAITER CLAMP, gaiter to bulkhead (885)

1шт.

K692059

RIVET

gaiter to bulkhead. (885)

8шт.

K774207

PANEL

BULKHEAD PANEL, complete, left-hand, hydrostatic steering (885), Includes: Ref. 3H - 9B and setscrew

1шт.

3h

K774200

PANEL

BULKHEAD PANEL, welded assembly (885)

1шт.

4e

K772945

GLASS

PANEL (885)

1шт.

K691968

GROMMET

(885)

1шт.

K774934

BOOT

GAITER ASSEMBLY (885), Includes: Ref. 7C and durable dot button, socket, eyelet, stud

1шт.

7c

K774933

GAITER (885)

1шт.

K691973

BUTTON

DURABLE DOT BUTTON (885)

2шт.

K691982

SOCKET/RECEPTACLE

SOCKET (885)

2шт.

K691983

SHANK

EYELET (885)

2шт.

K691984

STUD

(885)

2шт.

8c

K774206

CLAMP

GAITER CLAMP (885)

1шт.

K692059

RIVET

(885)

8шт.

9b

K774175

COVER

PLATE ASSEMBLY (885)

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

SETSCREW, No. 10 UNF x 1/2 in (885)

2шт.

17

K773493

STAY

bulkhead to main frame (885)

1шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Stay to bulkhead (885) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, stay to bulkhead (885)

1шт.

280136

NUT,3/8"-16, G8

Stay to bulkhead (885) 3/8"-16, G8

1шт.

19

K692006

SCREW

SETSCREW, 5/8 UNC x 1 in, stay to main frame (885)

1шт.

K626855

WASHER

5/8 in, stay to main frame (885)

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in, stay to main frame (885)

1шт.

20

K773700

SUPPORT

bulkhead, right-hand (885 soft clad cab)

1шт.

K773701

SUPPORT

bulkhead, left-hand (885 soft clad cab)

1шт.

K692006

SCREW

SETSCREW, 5/8 UNC x 1 in, support to main frame (885 soft clad cab)

2шт.

K626855

WASHER

5/8 in, support to main frame (885 soft clad cab)

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in, support to main frame (885 soft clad cab)

2шт.

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

SETSCREW, 3/8 UNC x 1-1/4 in, support to bulkhead (885 soft clad cab)

2шт.

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bulkheads to frame platform Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

K19472

WASHER

3/8 in, bulkheads to frame platform

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, bulkheads to frame platform

4шт.

280136

NUT,3/8"-16, G8

Bulkheads to frame platform 3/8"-16, G8

4шт.
