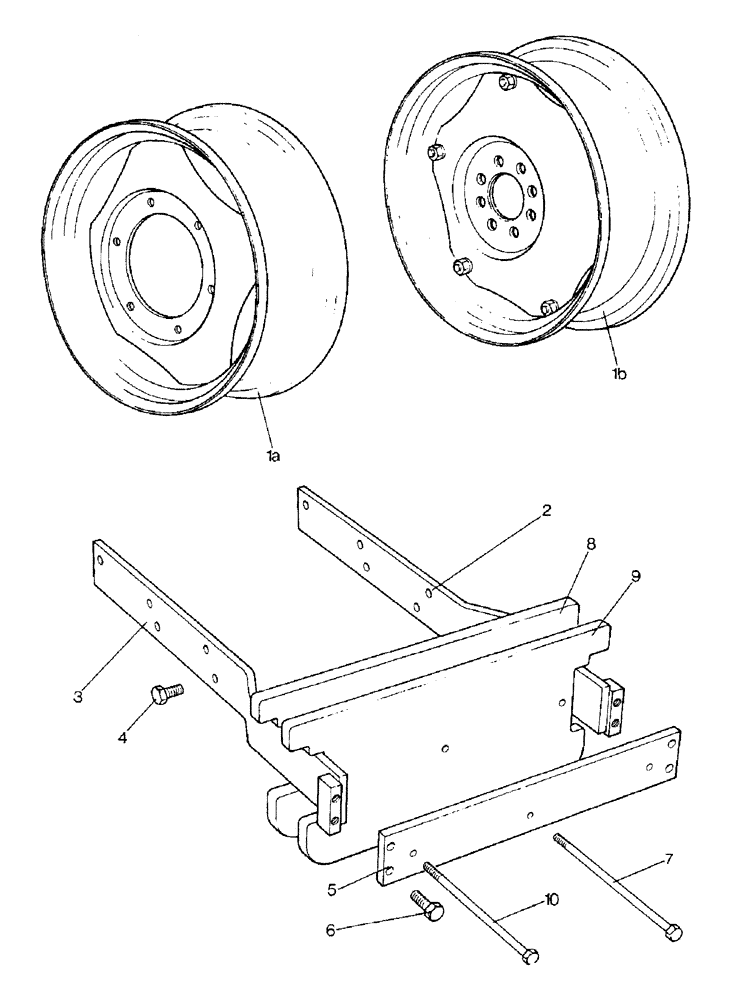

Запчасти Case IH 995 (L03-1-1) - CHASSIS, FRONT WHEELS AND CHASSIS BALLAST WEIGHTS, 4WD TRACTORS, 990 4WD, 995 4WD, 996 4WD (12) - CHASSIS

1a

K20295

FRONT WHEEL - rim and centre, for 11.2/10-24 tyres (Carraro 101085) (Mk3 4WD tractors, Carraro axle)

2шт.

K965327

WHEEL

WHEEL STUD - (Carraro 104781) (Mk3 4WD tractors, Carraro axle)

12шт.

K965326

WHEEL NUT

WHEEL NUT - (Carraro 104782) (Mk3 4WD tractors, Carraro axle)

12шт.

1b

K200124

RIM

WHEEL FRONT WHEEL - W8 x 24, for 9.5/9-24 tyres (Mk4 4WD tractors, D.B. axle)

2шт.

K617171

WHEEL NUT

WHEEL NUT - 5/8 UNF (Mk4 4WD tractors, D.B. axle)

16шт.

K932731

FRAME

FRAME UNIT - chassis ballast weight, U4089, Includes: Ref. 2 - 7 and spring washer

1шт.

2

K200309

FRAME

SIDE FRAME - left-hand (Frame unit U4089)

1шт.

3

K200310

FRAME

SIDE FRAME - right-hand (Frame unit U4089)

1шт.

4

K603275

SCREW

SETSCREW - 5/8 UNC x 1-5/8 in., side frame to front extension (Frame unit U4089)

8шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (Frame unit U4089)

8шт.

5

K954202

FRAME

FRONT FRAME (Frame unit U4089)

1шт.

6

K603280

SCREW

SETSCREW - 5/8 UNC x 2-1/4 in., front frame to side frame (Frame unit U4089)

4шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (Frame unit U4089)

4шт.

7

K600903

BOLT

BOLT - 1/2 UNC x 12 in., use with "Case" weights

1шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in.

1шт.

K932726

WEIGHT

FRONT CHASSIS BALLAST WEIGHTS - U4086, Includes: parts listed below

1шт.

8

K949672

WEIGHT

WEIGHT - 36kg (80lb) (Front chassis ballast weights U4086)

1шт.

9

K949673

WEIGHT

WEIGHT - 36kg (80lb) (Front chassis ballast weights U4086)

10шт.

10

K600900

BOLT

BOLT - 1/2 UNC x 15-1/2 in., weights to front frame (Front chassis ballast weights U4086)

2шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (Front chassis ballast weights U4086)

2шт.

280431

NUT,1/2"-13, G5

(Front chassis ballast weights U4086)

2шт.
