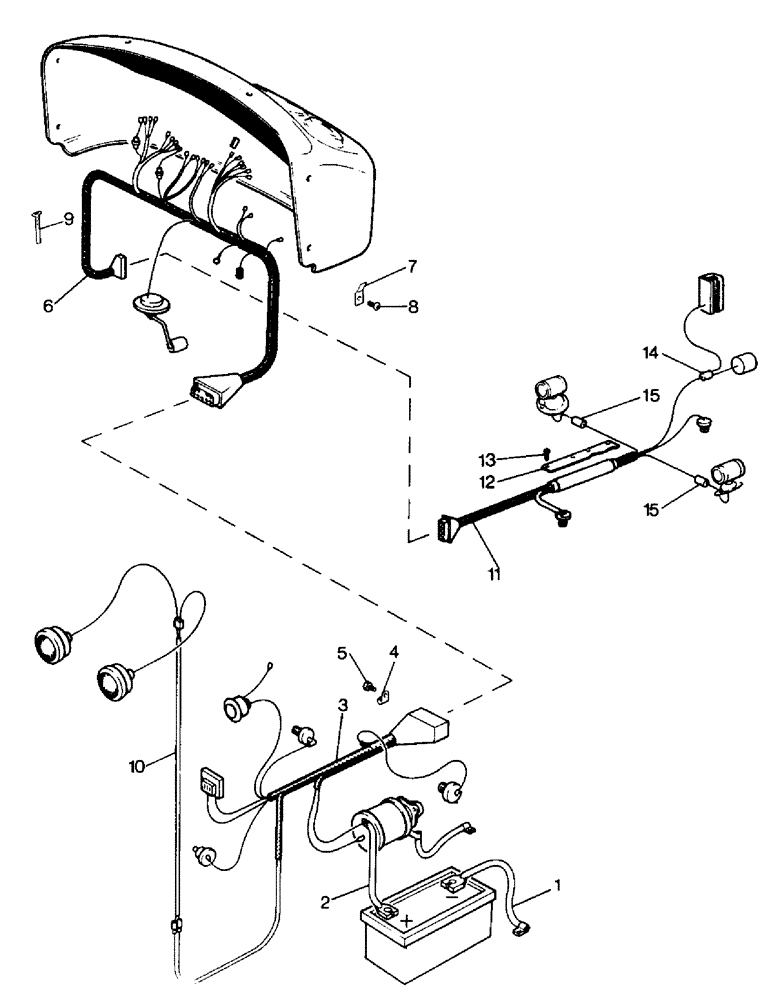

Запчасти Case IH 995 (M07-1) - ELECTRICAL EQUIPMENT, ELECTRICAL WIRING, TRACTORS WITH SHELL FENDERS, 990, 995, 996 (06) - ELECTRICAL SYSTEMS

1

K913945

CABLE

-, Serial Range: battery-earth

1шт.

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in.

1шт.

K11517

WASHER

SPRING WASHER - 5/16 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

2

K947406

CABLE

-, Serial Range: battery-starter

1шт.

K15518

CLAMP

CLIP - starter cable

1шт.

K87560

CONTACT HOUSING

RUBBER COVER - starter terminal

1шт.

K918762

CABLE

-, Serial Range: starter-earth

1шт.

3

K948070

HARNESS

WIRING HARNESS - engine auxiliaries

1шт.

4

K621711

CLIP

CABLE CLIP - 7/8 in. (Harness to fuel tank support)

2шт.

5

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/4 in. (Harness to fuel tank support)

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Harness to fuel tank support)

1шт.

280136

NUT,3/8"-16, G8

(Harness to fuel tank support) 3/8"-16, G8

1шт.

6

K948073

HARNESS

WIRING HARNESS - instrument panel

1шт.

7

K925268

BLADE

CONNECTOR - 25 amp

1шт.

8

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10 UNF x 1/2 in.

1шт.

K626340

RING

WASHER - 3/16 in.

1шт.

K617080

NUT

- no. 10 UNF

1шт.

9

K19928

CLIP

BUCKLE CLIP

4шт.

K625003

CLIP

KWIK KLIP - 3/8 in. (Panel harness)

2шт.

K625004

CLIP

KWIK KLIP - 1/2 in. (Panel harness)

1шт.

10a

K921073

ELECTRICAL WIRE

HARNESS - inboard headlamps

1шт.

10b

K921072

HARNESS

- outboard headlamps

1шт.

K625006

CLIP

KWIK KLIP - 1/4 in., headlamp leads

9шт.

11

K948074

HARNESS

REAR WIRING HARNESS

1шт.

12

K945688

COVER

PLATE (Harness to gearbox cover)

1шт.

13

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2 in. (Harness to gearbox cover)

4шт.

K626341

SPRING WASHER

SPRING WASHER (Harness to gearbox cover)

4шт.

K625005

CLIP

KWIK KLIP - 1/8 in. dia.

2шт.

K625006

CLIP

KWIK KLIP - 1/4 in. dia.

2шт.

K621665

CLIP

CABLE CLIP - 1/8 in., vacuum switch lead

2шт.

14

K86230

CONNECTOR, ELEC

DOUBLE CONNECTOR

2шт.

15

K67916

ELEC CONNECTOR

SINGLE CONNECTOR

2шт.
