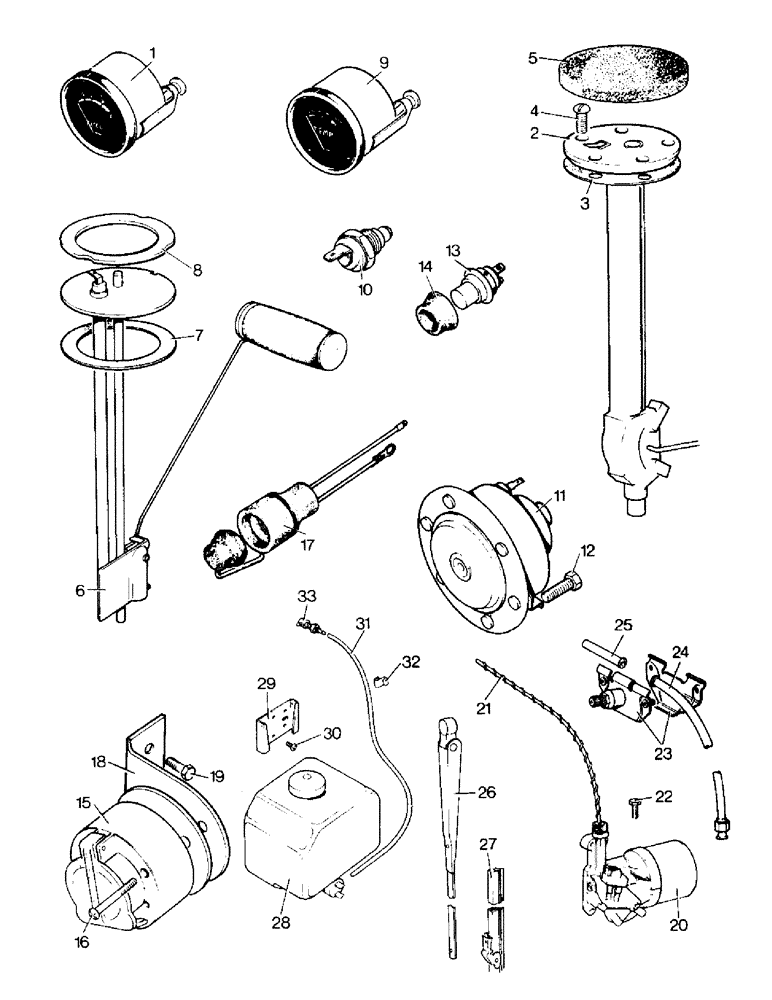

Запчасти Case IH 995 (M06-1) - ELECTRICAL EQUIPMENT, FUEL AND TEMPERATURE GAUGES, HORN, TRAILER SOCKET AND WINDSCREEN WIPER (06) - ELECTRICAL SYSTEMS

1a

K921147

ELECTRICAL GAUGE

FUEL GAUGE - AC-Delco 7974119 (990, 995, 996, 990G, 995G, 996G)

1шт.

2

K946158

SENDER UNIT

TANK UNIT - AC-Delco E/PG163902 (990, 995, 996, 990G, 995G, 996G)

1шт.

3

K946159

GASKET

(Unit to tank) (990, 995, 996, 990G, 995G, 996G)

1шт.

4

K614965

SCREW

- no. 10 UNF x 5/8 in. (Unit to tank) (990, 995, 996, 990G, 995G, 996G)

5шт.

5

K946257

PLUG

PLASTIC DISC (Unit to tank) (990, 995, 996, 990G, 995G, 996G)

1шт.

1b

K949236

ELECTRICAL GAUGE

FUEL GAUGE - Smiths AF2204/00 (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

6

K948994

FLOAT

TANK UNIT - Smiths TSB5514/014 (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

7

K942450

RING

SEALING RING (Unit to tank) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

8

K942451

RING

LOCKING RING (Unit to tank) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

9a

K921148

ELECTRICAL GAUGE

TEMPERATURE GAUGE - AC-Delco 7966282 (990, 995, 996, 990G, 995G, 996G)

1шт.

10a

K921149

TEMPERATURE SENDER

SENDER - AC-Delco 7966281 (990, 995, 996, 990G, 995G, 996G)

1шт.

K626444

WASHER

COPPER WASHER - 3/8 in. (990, 995, 996, 990G, 995G, 996G)

1шт.

9b

K949237

ELECTRICAL GAUGE

TEMPERATURE GAUGE - Smiths ACT2206/00 (990Q, 995Q, 996Q)

1шт.

10b

K952332

TRANSMITTER

SENDER - Smiths TT4803/01 (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

11

K950098

HORN

AND BRACKET (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

12

K602733

SCREW

SETSCREW - 1/4 UNC x 1/2 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

K11524

LOCK WASHER

LOCKWASHER - 1/4 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

K607043

NUT

- 1/4 UNC (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

K621702

CLIP

BUCKLE CLIP - horn lead (990, 995, 996, 990G, 995G, 996G)

1шт.

13

K928180

SWITCH

HORN PUSH - Lucas 31872, Includes: Ref. 14

1шт.

14

K928150

BOOT

RUBBER COVER - horn push

1шт.

15

K913566

POINT

SOCKET - trailer connection, 7 pin (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

16

K614950

SCREW

- no. 10 UNF x 1-1/4 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

3шт.

K626340

RING

SPRING WASHER - 3/16 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

3шт.

K617080

NUT

- no. 10 UNF (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

3шт.

17

K948076

SOCKET/RECEPTACLE

SOCKET - trailer connection, 2 pin (990, 995, 996, 990G, 995G, 996G)

1шт.

18

K948022

BRACKET

- trailer socket (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

K963625

PLUG

- 7 pin, trailer connection (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

K627724

GROMMET

- 1-3/16 in. dia. (990, 995, 996, 990G, 995G, 996G)

1шт.

19

K602733

SCREW

SETSCREW - 1/4 UNC x 5/8 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

K605633

SCREW

- 1/4 UNC x 1/2 in., socket earth (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

3шт.

K607043

NUT

- 1/4 UNC (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

20

K951518

WIPER MOTOR

- Lucas 54071929 (990Q, 995Q, 996Q), Includes: Ref. 21

1шт.

21

K965043

CABLE

DRIVE CABLE - wiper (990Q, 995Q, 996Q)

1шт.

22

K602735

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (990Q, 995Q, 996Q)

1шт.

K19470

WASHER

- 1/4 in. (990Q, 995Q, 996Q)

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990Q, 995Q, 996Q)

1шт.

K607043

NUT

- 1/4 UNC (990Q, 995Q, 996Q)

1шт.

23

K951519

WHEEL

BOX - Lucas LT28894-72925 (990Q, 995Q, 996Q)

1шт.

24

K951516

DRIVE

TUBE (990Q, 995Q, 996Q)

1шт.

25

K691917

TUBE

EXTENSION - drive tube (990Q, 995Q, 996Q)

1шт.

26a

K955664

WIPER

ARM (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

26b

K950923

ARM

WIPER ARM (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

27a

K955665

WIPER

BLADE (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

27b

K950924

BLADE

WIPER BLADE (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

28

K954271

RESERVOIR

AND PUMP - windscreen washer (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

29

K954272

MOUNTING PARTS

MOUNTING BRACKET - reservoir (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

30

K614943

SCREW

- no. 10 UNF x 3/8 in. (990Q, 995Q, 996Q)

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626340

RING

SPRING WASHER - 3/16 in. (990Q, 995Q, 996Q)

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K617080

NUT

- no. 10 UNF (990Q, 995Q, 996Q)

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

31

K954274

TUBE

PLASTIC TUBE - 4 MM x 85 in. (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

32

K625020

CLIP

PIPE CLIP (990Q, 995Q, 996Q)

3шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

33

K954273

JET

- windscreen washer (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.
