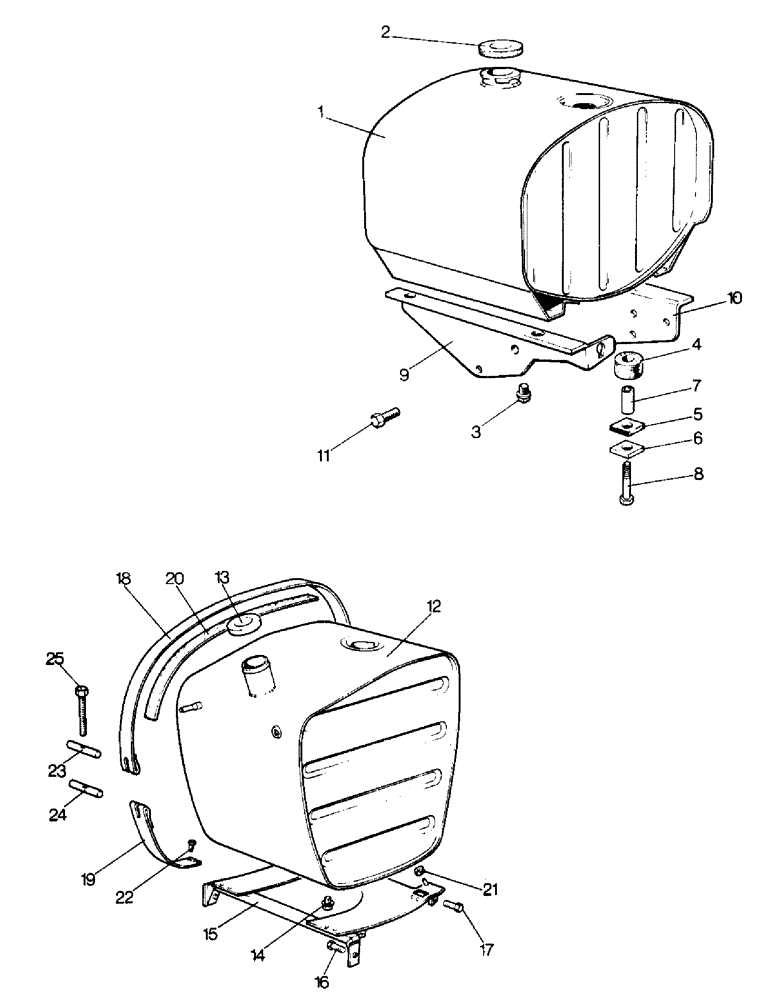

Запчасти Case IH 995 (A13-1) - ENGINE, FUEL TANK AND SUPPORTS (01) - ENGINE

1

K946007

TANK

FUEL TANK - with filler cap (990, 990G, 995, 995G, 996, 996G)

1шт.

2

K901983

CAP

FILLER CAP (990, 990G, 995, 995G, 996, 996G, 990Q, 995Q, 996Q)

1шт.

3

K19591

PLUG

DRAIN PLUG - 1/8 BSP

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER - 3/8 in.

1шт.

4

K626462

DAMPER

RUBBER BUSH (990, 990G, 995, 995G, 996, 996G)

4шт.

5

K915725

WASHER

RUBBER WASHER (990, 990G, 995, 995G, 996, 996G)

4шт.

6

K915726

PLATE

CLAMPING PLATE (990, 990G, 995, 995G, 996, 996G)

4шт.

7

K627007

TUBE,0.375" OD x 1.016" L

DISTANCE TUBE (990, 990G, 995, 995G, 996, 996G)

4шт.

8

K600150

BOLT

- 1/4 UNC x 1-1/2 in. (990, 990G, 995, 995G, 996, 996G)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990, 990G, 995, 995G, 996, 996G)

4шт.

Ref #8 - Bolt, Use 113-5 12/15/95

1шт.

9

K945995

BRACKET

SUPPORT BRACKET - left-hand (990, 990G, 995, 995G, 996, 996G)

1шт.

10

K945997

BRACKET

SUPPORT BRACKET - right-hand (990, 990G, 995, 995G, 996, 996G)

1шт.

11

K602902

SCREW

SETSCREW - 3/8 UNC x 3/4 in. (Brackets to frame) (990, 990G, 995, 995G, 996, 996G)

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Brackets to frame) (990, 990G, 995, 995G, 996, 996G)

4шт.

12

K948953

TANK

FUEL TANK - with filler cap (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

13

K901983

CAP

FILLER CAP (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

14

K19591

PLUG

DRAIN PLUG (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

15a

K955749

CONTACT

SUPPORT - fuel tank, replaces K951431 (990Q, 995Q, 996Q)

1шт.

15b

K953831

TANK

SUPPORT - fuel tank (990SK, 995SK, 996SK)

1шт.

16

K600714

BOLT

- 7/16 UNC x 2 in. (990Q, 995Q, 996Q)

2шт.

K626344

WASHER, LOCK

SPRING WASHER - 7/16 in. (990Q, 995Q, 996Q)

2шт.

17

K602983

SCREW

SETSCREW - 3/8 UNC x 7/8 in. (Support to cab) (990Q, 995Q, 996Q)

4шт.

17

K602983

SCREW

SETSCREW - 3/8 UNC x 7/8 in. (Support to cab) (990SK, 995SK, 996SK)

6шт.

280136

NUT,3/8"-16, G8

(Support to cab) (990Q, 995Q, 996Q) 3/8"-16, G8

4шт.

280136

NUT,3/8"-16, G8

(Support to cab) (990SK, 995SK, 996SK) 3/8"-16, G8

6шт.

K19472

WASHER

- 3/8 in. (Support to cab) (990Q, 995Q, 996Q)

4шт.

K19472

WASHER

- 3/8 in. (Support to cab) (990SK, 995SK, 996SK)

6шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Support to cab) (990Q, 995Q, 996Q)

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Support to cab) (990SK, 995SK, 996SK)

6шт.

18

K951472

STRAP

- upper (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

19

K951476

STRAP

- lower (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

20

K953479

TAPE

PACKING STRIP (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

21

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

(990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

22

K604094

SCREW

SETSCREW - 1/4 UNC x 5/8 in. (Straps to bracket) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

8шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Straps to bracket) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

8шт.

K607043

NUT

- 1/4 UNC (Straps to brackets) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

8шт.

23

K951540

TRUNNION

- plain (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

24

K951539

TRUNNION

- 1/4 UNC (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

25

K602744

BOLT

- 1/4 UNC x 3-1/4 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.
