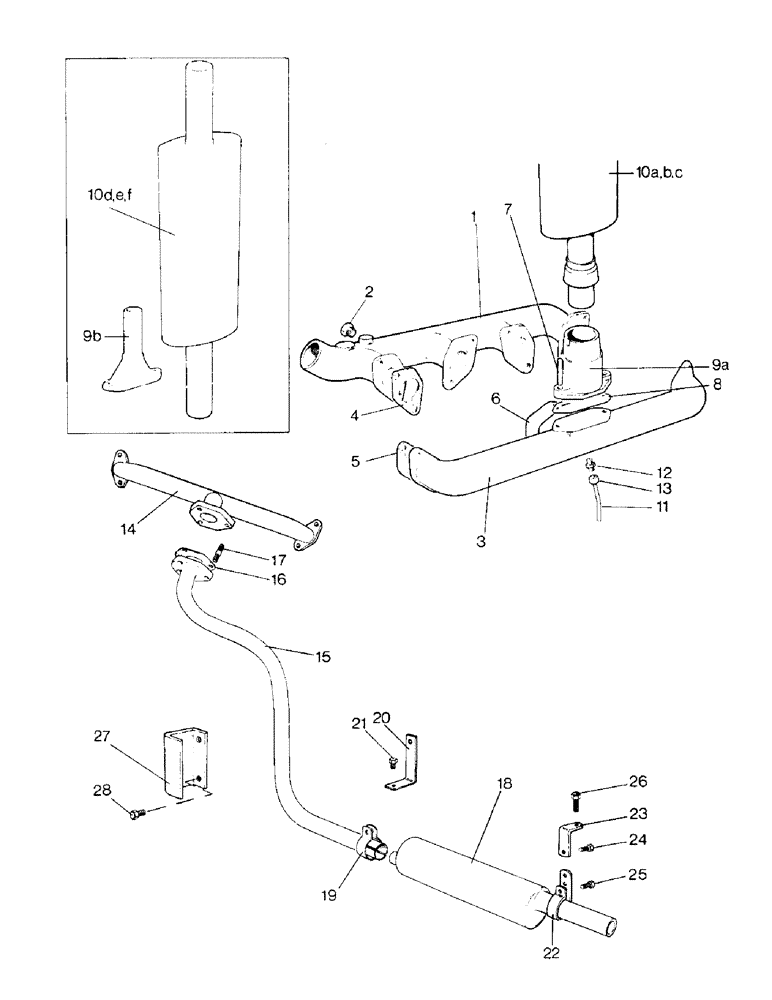

Запчасти Case IH 995 (A12-1) - ENGINE, MANIFOLDS AND SILENCER (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
K921473
X
MANIFOLD - air inlet
1шт.
2
K619528
PLUG
- plastic 7/8 UNF (990, 990G, 995, 995G, 996, 996G, 990Q, 995Q, 996Q)
1шт.
K626784
WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk
SEALING WASHER - 7/8 in. (990, 990G, 995, 995G, 996, 996G, 990Q, 995Q, 996Q)
1шт.
3
K906744
MANIFOLD
- exhaust
1шт.
4
K921730
MANIFOLD GASKET
- inlet manifold
4шт.
5
K907344
MANIFOLD GASKET
- exhaust manifold
2шт.
6
K907343
GASKET
- exhaust manifold
1шт.
280136
NUT,3/8"-16, G8
17шт.
7a
K608239
STUD
- 3/8 UNC x 1-15/16 in.
2шт.
Used on models 990, 990G, 990Q, 990SK, S/N E53069 and after
1шт.
Used on models 995, 995G, 995Q, 995SK, S/N E51144 and after
1шт.
Used on models 996, 996G, 996Q, 996SK, S/N E64035 and after
1шт.
7b
K608203
STUD
- 3/8 UNC x 1-7/16 in.
2шт.
Used on models 990, 990G, 990Q, 990SK, up to S/N E53069
1шт.
Used on models 995, 995G, 995Q, 995SK, up to S/N E51144
1шт.
Used on models 996, 996G, 996Q, 996SK, up to S/N E64035
1шт.
8
K68327
GASKET
-, Serial Range: manifold-flange
1шт.
9a
K952611
FLANGE
- internal fitting silencer
1шт.
Used on models 990, 990G, 990Q, 990SK, S/N E53069 and after
1шт.
Used on models 995, 995G, 995Q, 995SK, S/N E51144 and after
1шт.
Used on models 996, 996G, 996Q, 996SK, S/N E64035 and after
1шт.
9b
K928275
FLANGE
- external fitting silencer
1шт.
Used on models 990, 990G, 990Q, 990SK, up to S/N E53069
1шт.
Used on models 995, 995G, 995Q, 995SK, up to S/N E51144
1шт.
Used on models 996, 996G, 996Q, 996SK, up to S/N E64035
1шт.
10a
K952612
MUFFLER
SILENCER - internal fitting (990, 990G, 995, 995G, 996, 996G)
1шт.
Used on models 990, 990G, 990Q, 990SK, S/N E53069 and after
1шт.
Used on models 995, 995G, 995Q, 995SK, S/N E51144 and after
1шт.
Used on models 996, 996G, 996Q, 996SK, S/N E64035 and after
1шт.
10b
K954092
MUFFLER
SILENCER - internal fitting (990Q, 995Q, 996Q)
1шт.
Used on models 990, 990G, 990Q, 990SK, S/N E53069 and after
1шт.
Used on models 995, 995G, 995Q, 995SK, S/N E51144 and after
1шт.
Used on models 996, 996G, 996Q, 996SK, S/N E64035 and after
1шт.
10c
K954090
MUFFLER
SILENCER - internal fitting (990SK, 995SK, 996SK)
1шт.
Used on models 990, 990G, 990Q, 990SK, S/N E53069 and after
1шт.
Used on models 995, 995G, 995Q, 995SK, S/N E51144 and after
1шт.
Used on models 996, 996G, 996Q, 996SK, S/N E64035 and after
1шт.
10d
K928712
MUFFLER
SILENCER - external fitting (990, 990G, 995, 995G, 996, 996G)
1шт.
Ref #10D - A161802 Rain Cap used on 1 3/4" Dia. Stack 12/15/95
1шт.
Used on models 990, 990G, 990Q, 990SK, up to S/N E53069
1шт.
Used on models 995, 995G, 995Q, 995SK, up to S/N E51144
1шт.
Used on models 996, 996G, 996Q, 996SK, up to S/N E64035
1шт.
10e
K946193
MUFFLER
SILENCER - external fitting (990Q, 995Q, 996Q)
1шт.
Used on models 990, 990G, 990Q, 990SK, up to S/N E53069
1шт.
Used on models 995, 995G, 995Q, 995SK, up to S/N E51144
1шт.
Used on models 996, 996G, 996Q, 996SK, up to S/N E64035
1шт.
10f
K953803
MUFFLER
SILENCER - external fitting (990SK, 995SK, 996SK)
1шт.
Used on models 990, 990G, 990Q, 990SK, up to S/N E53069
1шт.
Used on models 995, 995G, 995Q, 995SK, up to S/N E51144
1шт.
Used on models 996, 996G, 996Q, 996SK, up to S/N E64035
1шт.
11
K928668
PIPE,0.25" OD x 14" L
- exhaust manifold drain
1шт.
12
K626051
FITTING
UNION - 1/8 BSP
1шт.
K622402
FERRULE
OLIVE - 1/4 in.
1шт.
13
K617421
PIPE UNION NUT
UNION NUT - 1/8 BSP
1шт.
K932023
NO LONGER SERVICED
DOWNSWEPT EXHAUST ASSEMBLY - optional equipment, U1981 (990, 990G, 995, 995G, 996, 996G), Includes: Ref. 14 - 28 and spring washer
1шт.
14
K919574
X
MANIFOLD - downswept exhaust (990, 990G, 995, 995G, 996, 996G)
1шт.
15
K954063
PIPE, EXHAUST SYSTEM
PIPE - manifold to silencer (990, 990G, 995, 995G, 996, 996G)
1шт.
16
K912441
GASKET
- (Pipe to manifold) (990, 990G, 995, 995G, 996, 996G)
1шт.
17
K608203
STUD
- 3/8 UNC x 1-7/16 in. (Pipe to manifold) (990, 990G, 995, 995G, 996, 996G)
3шт.
280136
NUT,3/8"-16, G8
(Pipe to manifold) (990, 990G, 995, 995G, 996, 996G) 3/8"-16, G8
3шт.
18
K910539
MUFFLER
SILENCER (990, 990G, 995, 995G, 996, 996G)
1шт.
19
K10455
CLIP
- front pipe (990, 990G, 995, 995G, 996, 996G)
1шт.
20
K954464
SUPPORT
STRAP (990, 990G, 995, 995G, 996, 996G)
1шт.
21
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SETSCREW - 5/16 UNC x 3/4 in. (990, 990G, 995, 995G, 996, 996G)
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16 UNC (990, 990G, 995, 995G, 996, 996G) (replaced K600701)
1шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (990, 990G, 995, 995G, 996, 996G)
1шт.
22
K911901
CLIP
- rear piper (990, 990G, 995, 995G, 996, 996G)
1шт.
23
K910822
WASHER
SUPPORT STRAP (990, 990G, 995, 995G, 996, 996G)
1шт.
24
K602840
SCREW
SETSCREW - 5/16 UNC x 1/2 in. (Clip to strap) (990, 990G, 995, 995G, 996, 996G)
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16 UNC (Clip to strap) (990, 990G, 995, 995G, 996, 996G)
1шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (Clip to strap) (990, 990G, 995, 995G, 996, 996G)
1шт.
25
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SETSCREW - 5/16 UNC x 3/4 in. (Clip to pipe) (990, 990G, 995, 995G, 996, 996G)
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16 UNC (Clip to pipe) (990, 990G, 995, 995G, 996, 996G)
1шт.
K19481
SPRING WASHER
SPRING WASHER - 5/16 in. (Clip to pipe) (990, 990G, 995, 995G, 996, 996G)
1шт.
26
K603274
SCREW
SETSCREW - 5/8 UNF x 1-1/2 in. (Strap to hitch bracket) (990, 990G, 995, 995G, 996, 996G)
1шт.
NUT,Hex, 5/8" - 11, Gr 5
Strap to hitch bracket (990, 990G, 995, 995G, 996, 996G) 5/8"-11, G5
1шт.
K19485
WASHER
SPRING WASHER - 5/8 UNC (Strap to hitch bracket) (990, 990G, 995, 995G, 996, 996G)
1шт.
27
K953189
GUARD
HEAT SHIELD - steering ram pipes (990, 990G, 995, 995G, 996, 996G)
1шт.
28
K603302
SCREW
SETSCREW - 5/8 UNC x 1 in. (Shield to main frame) (990, 990G, 995, 995G, 996, 996G)
2шт.
K19485
WASHER
SPRING WASHER - 5/8 in. (Shield to main frame) (990, 990G, 995, 995G, 996, 996G)
2шт.
