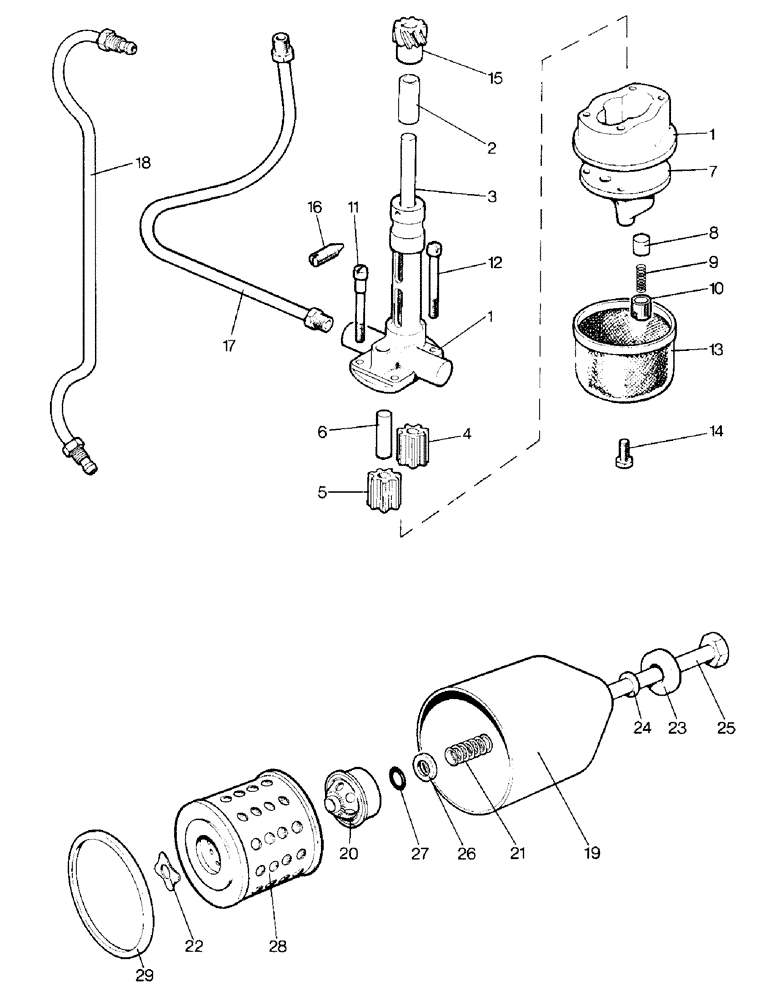

Запчасти Case IH 995 (A09-1) - ENGINE, OIL PUMP, PIPES AND FILTER (01) - ENGINE

K953896

PUMP

OIL PUMP ASSEMBLY, Includes: Ref. 1 - 7A

1шт.

1

K961009

HOUSING

BRACKET AND GEAR HOUSING, Includes: Ref. 2 & 3

1шт.

2

K30016

BUSHING

BUSH - bracket

1шт.

3

K928252

SPINDLE

DRIVING SPINDLE

1шт.

K19604

KEY

- Woodruff no. 405

1шт.

4

K902058

PINION

DRIVING ROTOR

1шт.

5

K949997

ROTOR

DRIVEN ROTOR

1шт.

6

K902060

SPINDLE

- driven rotor

1шт.

K953815

VALVE

RELIEF VALVE ASSEMBLY, Includes: Ref. 7A

1шт.

7a

K953009

COVER

- flat plunger seat

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N E49998 and after

1шт.

Used on models 995, 995Q, 995G, 995SK, S/N E48316 and after

1шт.

Used on models 996, 996Q, 996G, 996SK, S/N E61497 and after

1шт.

7b

K900753

NO LONGER SERVICED

COVER - conical plunger seat, Includes: Ref. 8A

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N E49998

1шт.

Used on models 995, 995Q, 995G, 995SK, up to S/N E48316

1шт.

Used on models 996, 996Q, 996G, 996SK, up to S/N E61497

1шт.

8a

K953008

PLUNGER

- flat seat

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N E49998 and after

1шт.

Used on models 995, 995Q, 995G, 995SK, S/N E48316 and after

1шт.

Used on models 996, 996Q, 996G, 996SK, S/N E61497 and after

1шт.

8b

K67461

PLUNGER

- conical seat, Includes: Ref. 9 & 10A

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N E49998

1шт.

Used on models 995, 995Q, 995G, 995SK, up to S/N E48316

1шт.

Used on models 996, 996Q, 996G, 996SK, up to S/N E61497

1шт.

9

K12961

SPRING

- relief valve

1шт.

10a

K953010

SCREW,3/8" x 9/16"

ADJUSTING SCREW - 3/8 BSP

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N E49998 and after

1шт.

Used on models 995, 995Q, 995G, 995SK, S/N E48316 and after

1шт.

Used on models 996, 996Q, 996G, 996SK, S/N E61497 and after

1шт.

10b

K30013

ADJUSTER

ADJUSTING SCREW - 3/8 BSP, Includes: Ref. 11 - 15 and key

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N E49998

1шт.

Used on models 995, 995Q, 995G, 995SK, up to S/N E48316

1шт.

Used on models 996, 996Q, 996G, 996SK, up to S/N E61497

1шт.

11

K902061

STEP BOLT

BOLT - 1/4 UNC x 2-1/8 in., special fitting

2шт.

12

K600011

BOLT

- 1/4 NC x 2-1/8 in.

2шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in.

4шт.

K607000

NUT

- 1/4 UNC

4шт.

13

K12013

FILTER

SCREEN

1шт.

14

K602701

BOLT

SETSCREW - 1/4 UNC x 1/2 in.

1шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in.

1шт.

15

K902051

GEAR

SPIRAL PINION

1шт.

K19604

KEY

- Woodruff no. 405

1шт.

16

K928254

SCREW,7/16" - 14 x 1 5/16"

LOCATING SCREW - 7/16 UNC

1шт.

K607516

NUT

CAPPED NUT - 7/16 UNC

1шт.

K14674

WASHER

COPPER WASHER - 7/16 in.

1шт.

17

K904180

PIPE

OIL PIPE - pump to cylinder block

1шт.

18

K902765

PIPE

OIL PIPE - block to cylinder head

1шт.

K907654

CLEANER

OIL FILTER - complete, Includes: Ref. 19 - 29

1шт.

19

K903222

CLEANER

BOWL - with relief valve

1шт.

20

K903057

VALVE

RELIEF VALVE

1шт.

21

K903056

SPRING

1шт.

22

K903058

PLATE

LOCATING PLATE

1шт.

23

K903053

COLLAR

1шт.

24

K903054

SEAL

ING RING

1шт.

25

K903052

BOLT

- 7/16 UNC x 5-3/8 in.

1шт.

26

K19473

WASHER

- 7/16 in.

1шт.

27

K903075

WASHER

SEALING WASHER - 7/16 in.

1шт.

28

K902125

FILTER, ELEMENT

ELEMENT

1шт.

29

K87644

RING

SEALING RING - 4-1/8 in. internal dia.

1шт.
