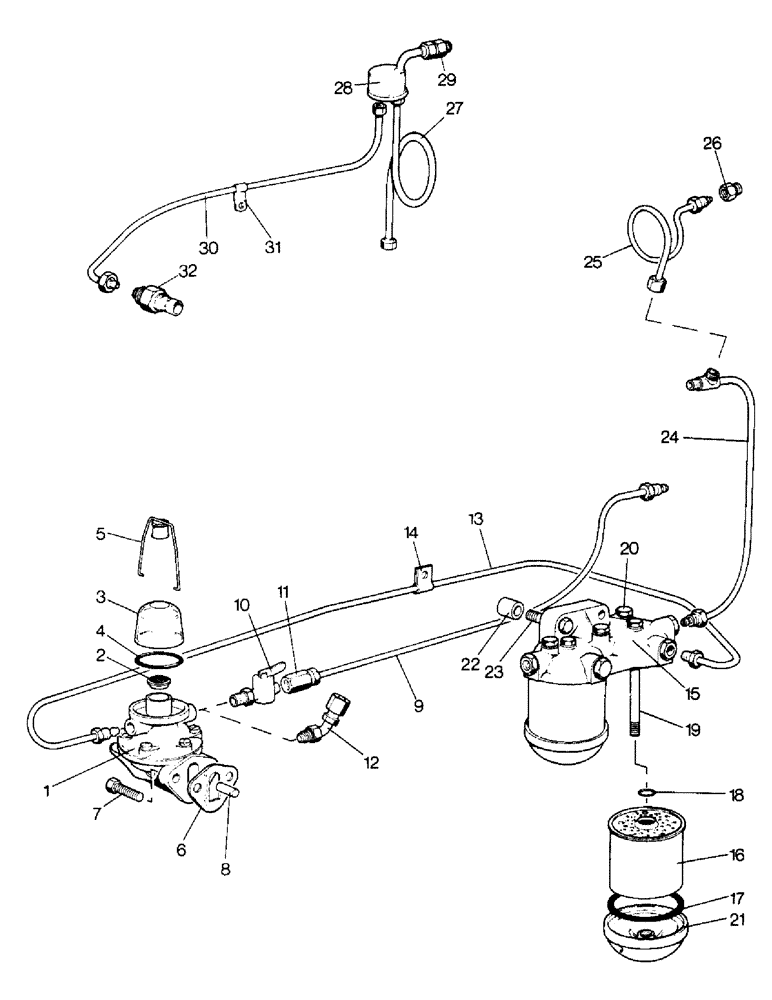

Запчасти Case IH 995 (A07-1) - ENGINE, FUEL FEED PUMP, FILTERS AND PIPES (01) - ENGINE

1

K944997

PUMP

FUEL FEED PUMP - AC-Delco E/FP63154B, Includes: Ref. 2 - 5 and diaphragm

1шт.

2

K961675

FILTER SCREEN

1шт.

3

K66442

FILTER BOWL

1шт.

4

K961674

SEAL

GASKET - filter bowl

1шт.

5

K961676

BAIL

STIRRUP AND SCREW

1шт.

K911917

DIAPHRAGM

1шт.

6

K902136

GASKET

1шт.

7

K602807

SCREW

SETSCREW - 5/16 UNC x 1-1/4 in.

2шт.

K14988

WASHER

COPPER ASBESTOS WASHER - 5/16 in.

2шт.

K19471

WASHER

- 5/16 in.

2шт.

8

K911928

PUSH ROD,9.51mm OD x 35.99mm L

PUSH ROD - feed pump

1шт.

9a

K946086

PIPE

FUEL PIPE - tank to feed pump (990, 990G, 995, 995G, 996, 996G)

1шт.

9b

K951922

PIPE

FUEL PIPE - tank to fuel pump (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

10

K622061

VALVE

FUEL TAP (Optional equipment U1599) (990, 990G, 995, 995G, 996, 996G)

1шт.

11a

K626024

FITTING

UNION - 1/2 UNF (Optional equipment U1599) (990, 990G, 995, 995G, 996, 996G)

1шт.

K626950

WASHER

FIBRE WASHER - 1/2 in. (Optional equipment U1599) (990, 990G, 995, 995G, 996, 996G)

1шт.

K617582

NUT

TUBING NUT (Optional equipment U1599) (990, 990G, 995, 995G, 996, 996G)

2шт.

K622402

FERRULE

OLIVE (Optional equipment U1599) (990, 990G, 995, 995G, 996, 996G)

2шт.

10

K622061

VALVE

FUEL TAP (Optional equipment U875) (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

11b

K626076

FITTING

UNION - 1/2 UNF (Optional equipment U875) (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

12

K951062

EXTENSION

PIPE (Optional equipment U875) (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

13

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

FUEL PIPE - feed pump to filter

1шт.

14

K621603

CLIP

- pipe to manifold stud

1шт.

15

K906708

FILTER

FUEL FILTER - APF62900, Includes: Ref. 15 - 21

1шт.

15

K962263

COVER

FILTER HEAD

1шт.

16

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT, Includes: Ref. 17A - 19

2шт.

17a

K965801

RING

SEALING RING - lower

1шт.

Ref #17A - Lucas #7111-853 12/15/95

1шт.

17b

K965802

RING

SEALING RING - upper

1шт.

Ref #17B - Lucas #7111-843 12/15/95

1шт.

18

K960937

O-RING

"O" RING - 1/2 in. internal dia.

1шт.

19

K600360

BOLT

- 5/16 UNC x 4-3/4 in.

2шт.

K963409

RING

SEALING WASHER - 5/16 in.

2шт.

20

K15734

WASHER

VENT PLUG - 5/16 UNC (replaced K965010)

1шт.

K14734

WASHER

ALUMINUM WASHER - 5/16 in.

1шт.

Ref #20 - 3/8" Plug K963811 12/15/95

1шт.

21

K962264

COVER

BASE

2шт.

22

K627042

BUSHING

DISTANCE PIECE

2шт.

23

K600406

BOLT

- 3/8 UNC x 1-3/4 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

2шт.

24a

K948998

PIPE

FUEL PIPE -, Serial Range: filter-leak-off

1шт.

Used on models 990, 995, 996, S/N 11074959 and after

1шт.

24b

K945417

PIPE

FUEL PIPE - filter to leak-off (990, 990G, 995, 995G, 996, 996G)

1шт.

Used on models 990, 995, 996, up to S/N 11074959

1шт.

25a

K952664

PIPE

FUEL PIPE - leak-off to tank (990, 990G, 995, 995G, 996, 996G)

1шт.

Used on models 990, 995, 996, S/N 11074959 and after

1шт.

25b

K947873

PIPE

FUEL PIPE - leak-off to tank (990, 990G, 995, 995G, 996, 996G)

1шт.

Used on models 990, 995, 996, up to S/N 11074959

1шт.

25c

K948999

PIPE

FUEL PIPE - leak-off to tank (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

26

K618901

ADAPTER

ADAPTOR - 3/8 UNF (990, 990G, 995, 995G, 996, 996G)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER - 3/8 in. (990, 990G, 995, 995G, 996, 996G)

1шт.

27

K944802

PIPE

FUEL PIPE - leak-off to reservoir (Optional equipment, U1724 (K931212))

1шт.

28

K944744

RESERVOIR

(Optional equipment, U1724 (K931212)

1шт.

29

K618900

ADAPTER

ADAPTOR - 1/2 x 3/8 UNF (Optional equipment, U1724 (K931212)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER - 3/8 in. (Optional equipment, U1724 (K931212)

1шт.

30

K944797

PIPE

FUEL PIPE - Thermostart (Optional equipment, U1724 (K931212)

1шт.

31

K621687

CLIP

(Optional equipment, U1724 (K931212)

2шт.

32

K928523

GLOW PLUG

THERMOSTART - CAV1854102 (Optional equipment, U1724 (K931212)

1шт.

K626957

WASHER

FIBRE WASHER - 7/8 in., replaces K19502 (Optional equipment, U1724 (K931212)

1шт.
