Запчасти Case IH 995 (A01-1) - ENGINE, CYLINDER BLOCK ASSEMBLIES (01) - ENGINE

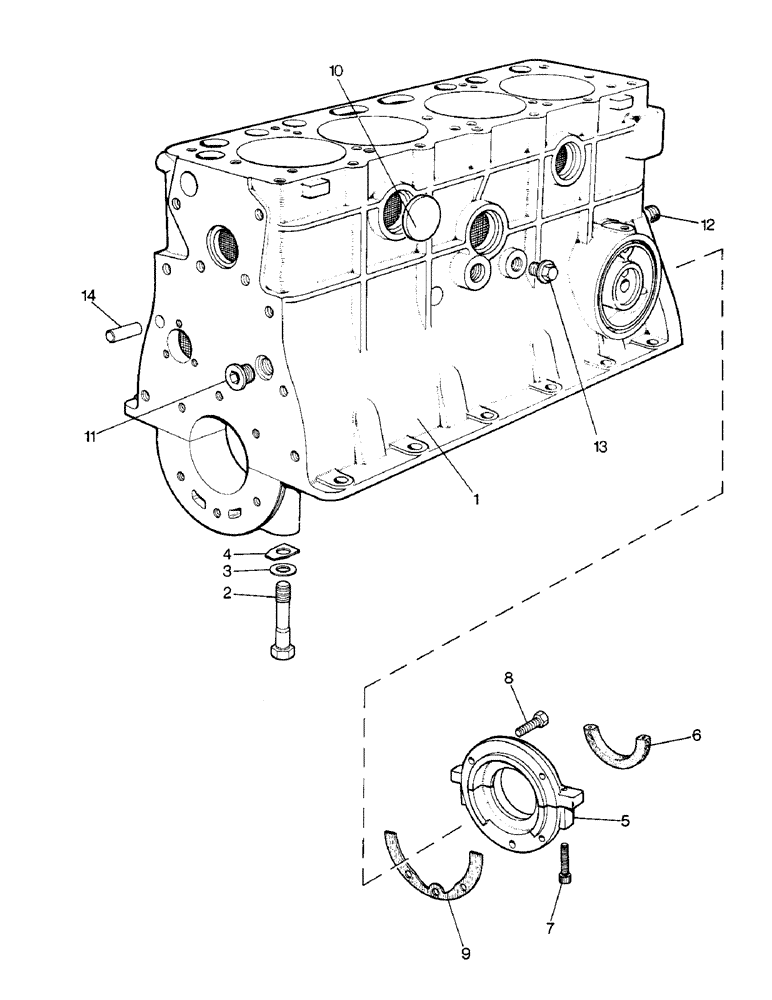

Схема запчастей Case IH 995 - (A01-1) - ENGINE, CYLINDER BLOCK ASSEMBLIES (01) - ENGINE
3
4
12
6
2
11
5
8
7
10
9
13
1
14

Артикул

Название

Примечание

Количество

K964628

BLOCK

CYLINDER BLOCK - with crankshaft and pistons (990, 990Q, 990G, 990SK), Includes: Ref. 1 - 13A and fibre washer

1шт.

K964629

BLOCK

CYLINDER BLOCK - with crankshaft and pistons (995, 995Q, 995G, 995SK, 996, 996Q, 996G, 996SK), Includes: Ref. 1 - 13A and fibre washer

1шт.

1

K964893

BLOCK

CYLINDER - block with bearing caps, Includes: Ref. 2 - 13A and fibre washer

1шт.

K12258

PIN

DOWEL - 5/16 x 3/4 in. (Bearing, Serial Range: caps-block)

6шт.

2

K902022

BOLT

- 5/8 UNC x 3-5/8 in., special (Bearing, Serial Range: caps-block)

6шт.

3

K929557

WASHER

WASHER - 5/8 in., special (Bearing, Serial Range: caps-block)

6шт.

4

K12994

BEARING WASHER

TABWASHER (Bearing, Serial Range: caps-block)

6шт.

5

K964844

HOUSING

OIL RETAINER - rear bearing, Includes: Ref. 6 & 7 and spring washer

1шт.

6

K921611

OIL SEAL

PACKING - halves, oil retainer

2шт.

7

K606558

SCREW

SOCKET SCREW - 5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

2шт.

Ref #1 - K965168 12/15/95

1шт.

8

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in. (Retainer to block)

5шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Retainer-block)

5шт.

9

K950938

GASKET,0.18mm Thk

- halves, Serial Range: (Retainer-block)

2шт.

10

K623797

PLUG

CORE PLUG - 1-3/4 in. dia.

5шт.

11

K609449

PLUG

- 5/8 UNC, oil gallery, front

1шт.

12

K609440

PLUG

- 5/8 UNC, oil gallery, rear

1шт.

K619506

WASHER

COPPER WASHER - 5/8 in., replaces K15512

1шт.

13a

K19581

PLUG

- 3/8 BSP (Cylinder block drain)

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N E48463 and after

1шт.

K19501

WASHER

FIBRE WASHER - 1/2 in. (Cylinder block drain)

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N E48463 and after

1шт.

13b

K622060

PLUG, DRAIN

DRAIN TAP - 1/4 BSP (Cylinder block drain)

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N E48463

1шт.

K922093

ADAPTER

ADAPTOR - 1/2 x 1/4 BSP (Cylinder block drain), Includes: parts listed below

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N E48463

1шт.

14

K621807

PIN

DOWEL - 5/16 x 1/2 in., carrier plate

2шт.

K962224

CRANKSHAFT

- with bearings (See Figure A03-1) (990, 990Q, 990G, 990SK)

1шт.

K962157

CRANKSHAFT

- with bearings (See Figure A03-1) (995, 995Q, 995G, 995SK, 996, 996Q, 996G, 996SK)

1шт.

K903431

STEP BOLT

- 7/16 UNF, special (See Figure A03-1)

4шт.

K616968

NUT

- 7/16 UNF (See Figure A03-1)

4шт.

K10629

PIN

DOWEL - 1/2 x 15/16 in. (See Figure A03-1)

1шт.

K80043

ROD, CONNECTING

CONNECTING ROD ASSEMBLY (See Figure A03-1)

4шт.

K949721

PISTON & RINGS KIT

PISTON ASSEMBLY (See Figure A03-1) (990, 990Q, 990G, 990SK)

4шт.

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY (See Figure A03-1) (995, 995Q, 995G, 995SK, 996, 996Q, 996G, 996SK)

4шт.

Выбрано товаров: 36
