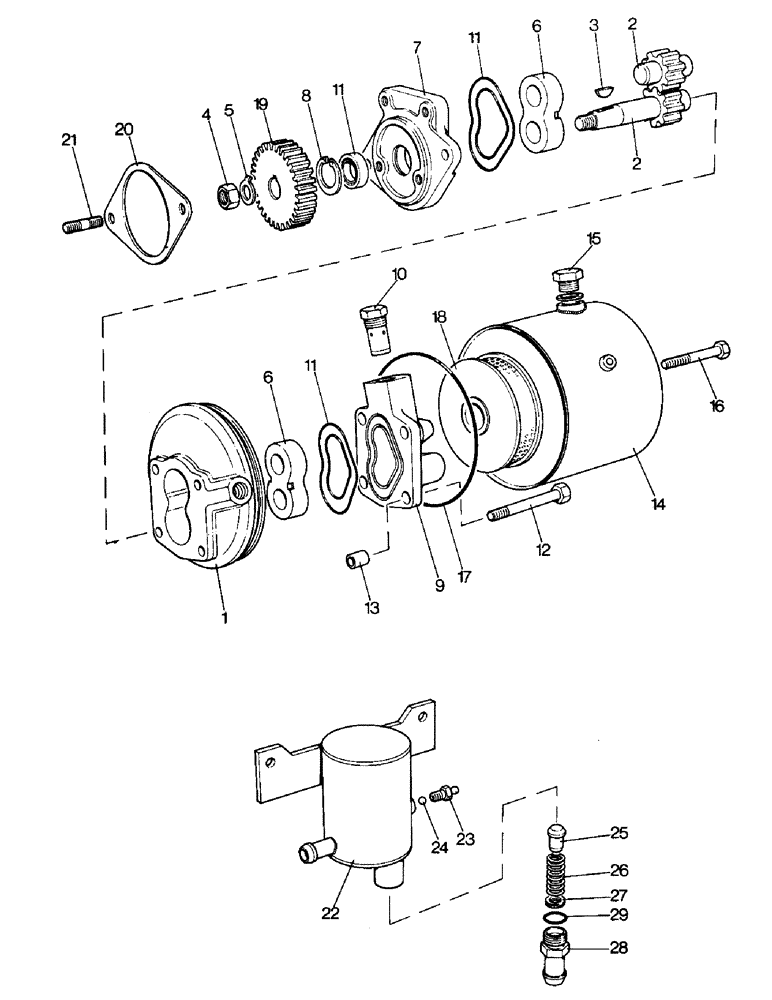

Запчасти Case IH 995 (H08-1) - STEERING AND FRONT AXLE, STEERING PUMP AND RESERVOIR Steering & Front Axle

1

K944944

PUMP

AND RESERVOIR ASSEMBLY - Plessey 550/1/17331, Includes: Ref. 2 - 5

1шт.

K964815

GEAR

ROTOR PACK, Includes: Ref. 2 - 5

1шт.

2

K964934

GEAR

ROTORS - pair

1шт.

3

K19604

KEY

- Woodruff no. 405

1шт.

4

425-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16 UNF

1шт.

5

K626380

WASHER

TABWASHER

1шт.

6

K962189

BEARING

Includes: Ref. 7 - 15 and sealing washer and "o" ring

2шт.

7

K964925

FLANGE

MOUNTING FLANGE

1шт.

8

K962097

RING, SNAP

CIRCLIP - 1-3/16 in. dia.

1шт.

9

K964923

COVER

- pump body

1шт.

10

K964932

VALVE

RELIEF VALVE - pre-set assembly

1шт.

11

K964935

SEAL

SEAL PACK - oil seal and "O" rings

1шт.

12

K964921

BOLT

- 3/8 UNC x 3-1/8 in., Serial Range: (Cover-body)

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in., Serial Range: (Cover-body)

4шт.

13

K964920

PIN

RING DOWEL, Serial Range: (Cover-body)

2шт.

14

K964933

TANK

RESERVOIR

1шт.

15

K623825

PLUG

FILLER PLUG - 1/2 BSP

1шт.

K626769

WASHER

SEALING WASHER - filler plug

1шт.

K14952

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

"O" RING - 3/16 internal dia., breather valve

1шт.

K608299

STUD

- 3/8 UNC x 3-1/4 in. (Reservoir to engine) (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

2шт.

K86372

BUSHING

DISTANCE PIECE (Reservoir to engine) (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Reservoir to engine) (9990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

2шт.

280136

NUT,3/8"-16, G8

(Reservoir to engine) (990G, 990GSK, 995G, 995GSK, 996G, 996GSK), Includes: Ref. 16 - 18 3/8"-16, G8

2шт.

16

K964930

BOLT

SETSCREW - 5/16 UNC x 2-1/4 in.

1шт.

K964928

SEAL

ING WASHER - 5/16 in.

1шт.

17

K965217

RING

SEALING RING - reservoir to pump, replaces K964929

1шт.

18

K964931

FILTER

ELEMENT - with sealing rings

1шт.

19

K945098

PINION

GEAR - 28 teeth

1шт.

20

K919729

GASKET,0.76mm Thk

, Serial Range: (Pump-engine)

1шт.

21

K608147

STUD

- 5/16 UNC x 1 in., Serial Range: (Pump-engine)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Pump-engine)

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Pump to engine)

2шт.

K949703

RESERVOIR

AND VALVE ASSEMBLY (990G, 990GSK, 995G, 995GSK, 996G, 996GSK), Includes: parts listed below

1шт.

22

K949704

RESERVOIR

(990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

1шт.

23

K910104

SCREW

BLEED SCREW - 1/8 BSP (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

1шт.

24

K11286

BALL

STEEL BALL - 5/16 in. dia. (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

1шт.

25

K949562

PLUNGER

- valve (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

1шт.

26

K24887

SPRING

- valve plunger (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

1шт.

27

K626922

SHIM,.030" Thk

(990G, 990GSK, 995G, 995GSK, 996G, 996GSK) .030" Thk

1шт.

28

K949561

CONNECTOR, ELEC

CONNECTOR - 7/8 UNF (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

1шт.

29

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 in. internal dia. (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

1шт.

K14952

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

"O" RING - breather, reservoir (990G, 990GSK, 995G, 995GSK, 996G, 996GSK)

1шт.
