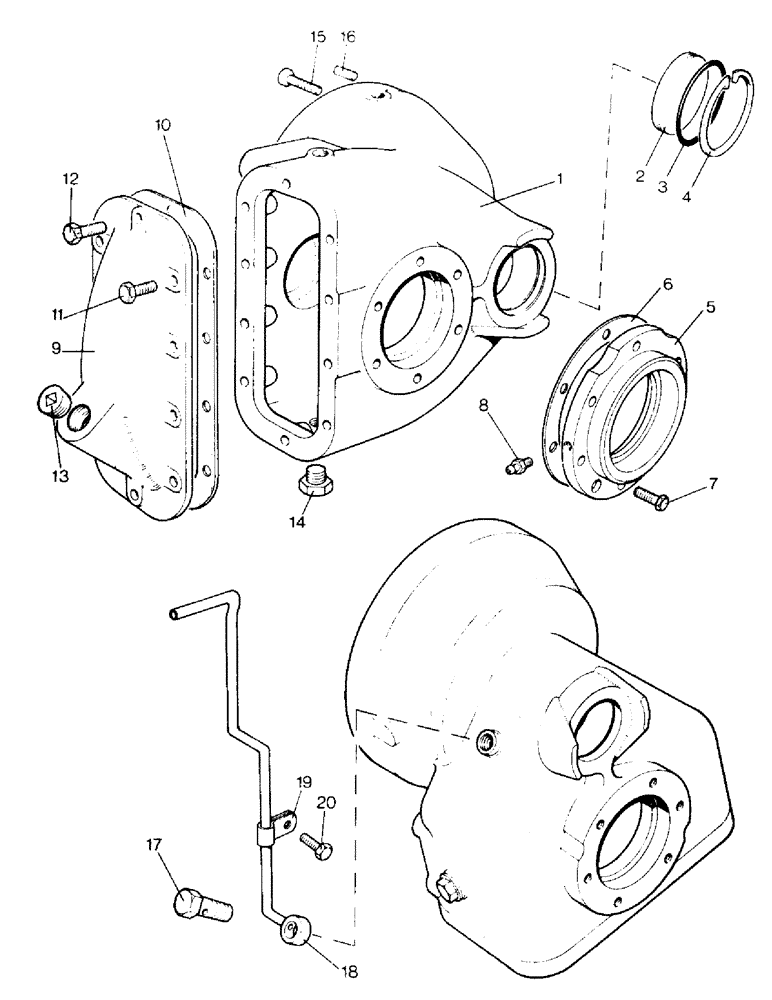

Запчасти Case IH 995 (D01-1) - FINAL DRIVE, FINAL DRIVE REDUCTION CASE AND COVERS Final Drive Reductions

1a

K942146

GEAR

CASE - right-hand, standard clearance (990, 995, 996, 990G, 995G, 996G)

1шт.

1b

K952305

GEAR

CASE - right-hand, standard clearance (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

1c

K944135

X

CASE - right-hand, high clearance (990, 995, 996, 990G, 995G, 996G)

1шт.

1d

K954741

GEAR

CASE - right-hand, high clearance (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

K942145

GEAR

CASE - left-hand, standard clearance (990, 995, 996, 990G, 995G, 996G)

1шт.

K952306

X

CASE - left-hand, standard clearance (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

K944134

GEAR

CASE - left-hand, high clearance (990, 995, 996, 990G, 995G, 996G)

1шт.

K954742

GEAR

CASE - left-hand, high clearance (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

2

K929045

COVER

END COVER - pinion bearing

2шт.

3

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 in. internal dia.

2шт.

4

K13042

RING, SNAP

CIRCLIP - 3-1/4 in., internal

2шт.

5

K944516

HOUSING

- oil seal, right-hand

1шт.

K944517

HOUSING

- oil seal, left-hand

1шт.

6a

K902772

SHIM,.003" Thk

(Housing to reduction case) .003" Thk

1шт.

6b

K902773

SHIM,.006" Thk

(Housing to reduction case) .006" Thk

1шт.

6c

K902774

SHIM,.009" Thk

(Housing to reduction case) .009" Thk

1шт.

6d

K902775

GASKET

SHIM - 0.015 in. (Housing to reduction case)

1шт.

6e

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 in. (Housing to reduction case)

1шт.

7

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2 in. (Housing to reduction case)

12шт.

K19483

SPRING WASHER

SPRING WASHER /IN (Housing to reduction case)

12шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

9

K901556

COVER

- reduction case

2шт.

10

K923221

GASKET,0.51mm Thk

, Serial Range: (Cover-case)

2шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1-1/8 (Cover to case)

18шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in., Serial Range: (Cover-case)

18шт.

12

K600502

BOLT

BREATHER BOLT - 3/8 UNC

2шт.

K626521

SEALING WASHER

ING WASHER - 3/8 in.

2шт.

13

K12362

PLUG

TAPERED PLUG - 1 in. BSP

2шт.

14

K623825

PLUG

FLANGED PLUG - 1/2 in. BSP

2шт.

K626793

WASHER

SEALING WASHER - 7/8 in.

2шт.

15

K600803

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

- 1/2 UNC x 1-5/8 in. (Case to rear axle)

20шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (Case to rear axle)

20шт.

16

K11482

PIN

DOWEL - 7/16 x 1-1/4 in. (Case to rear axle)

4шт.

K628085

PLUG,Cap, .458" OD

PLASTIC PLUG - 1/2 in., stabiliser holes

6шт.

Ref #16A - Replaced by 353-7 12/15/95

1шт.

17

K620360

BANJO BOLT

BANJO BOLT - 1/8 BSP (High clearance reduction case breather)

2шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER - 3/8 in. (High clearance reduction case breather)

4шт.

18

K946147

TUBE

BANJO AND TUBE (High clearance reduction case breather)

2шт.

19

K621638

CLIP

(High clearance reduction case breather)

4шт.

20

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2 in. (High clearance reduction case breather)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (High clearance reduction case breather)

4шт.

K19591

PLUG

- 1/8 BSP, case (High clearance reduction case breather)

2шт.
