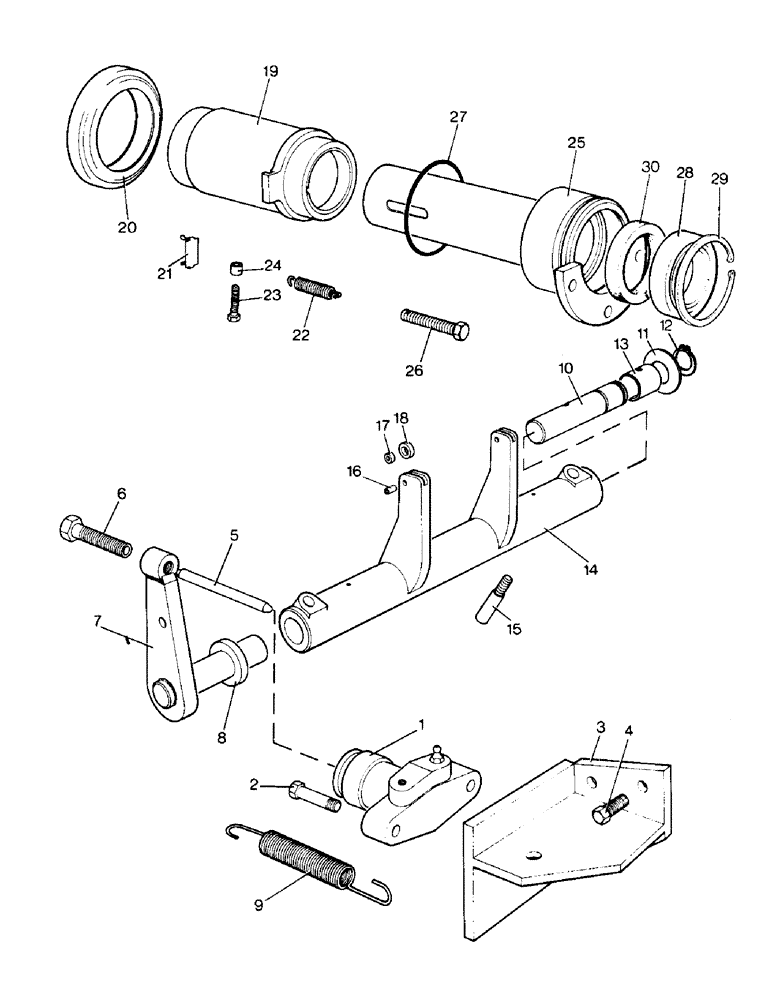

Запчасти Case IH 995 (B07-1) - CLUTCH, CLUTCH RELEASE MECHANISM - MECHANICAL COMPONENTS, 990Q, 995Q, 990SK, 995SK (03.1) - CLUTCH

1

K952267

CYLINDER

SLAVE CYLINDER (Mineral oil seals)

1шт.

K964573

SEAL KIT

SEAL KIT - slave cylinder (Mineral oil seals)

1шт.

2

K600205

BOLT

- 5/16 UNC x 1-1/2 in.

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

2шт.

3

K952717

MOUNTING PARTS

MOUNTING BRACKET - slave cylinder

1шт.

4

K602803

BOLT

SETSCREW - 5/16 UNC x 3/4 in., Serial Range: (Bracket-frame)

3шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Bracket-frame)

3шт.

5

K952730

ROD

PUSH ROD - slave cylinder

1шт.

6

K950997

SCREW

ADJUSTING SCREW - 1/2 in. UNF

1шт.

K622809

NUT

LOCKNUT - 1/2 in. UNF

1шт.

7

K952729

SHAFT

STUB SHAFT AND LEVER - left-hand

1шт.

8

K627167

BUSHING

DISTANCE PIECE

1шт.

9

K624954

SPRING

- lever return

1шт.

10

K950507

SHAFT

STUB SHAFT - right-hand

1шт.

11

K626749

WASHER

BELLEVILLE WASHER - 1 in.

1шт.

12

K11128

CIRCLIP

- 1 in., external

1шт.

13

K628753

BUSHING

BUSH - main frame

2шт.

14

K952635

CLUTCH

FORK

1шт.

15

K609425

LARGE PIN

COTTER PIN - 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

K19472

WASHER

- 3/8 in.

2шт.

K11522

WASHER

SPRING WASHER - 3/8 in.

2шт.

16

K900349

PIN

- fork

2шт.

17

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

2шт.

18

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

2шт.

19

K952641

CARRIER

- thrust bearing

1шт.

20

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

- clutch release

1шт.

21

K900359

SPRING

CLIP - bearing carrier

2шт.

22

K624938

SPRING

RETURN SPRING - bearing carrier

1шт.

23

K602703

SCREW

SETSCREW - 1/4 UNC x 3/4 in.

1шт.

24

K952142

SLEEVE

1шт.

25a

K956028

SUPPORT

SNOUT - bearing carrier

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, S/N 11089342 and after

1шт.

K24866

KEY

- 3/16 x 5/32 x 1-1/4 in.

1шт.

25b

K965192

SUPPORT

SNOUT KIT - replaces K952642

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, up to S/N 11089342

1шт.

K956028

SUPPORT

SNOUT

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, up to S/N 11089342

1шт.

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, up to S/N 11089342

1шт.

K956029

CLUTCH

DRIVESHAFT

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, up to S/N 11089342

1шт.

26a

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. (Support snout to frame)

2шт.

26b

K602856

SCREW,5/16" - 18 x 2 1/4", Gr S

SETSCREW - 5/16 UNC x 2-1/4 in. (Support, Serial Range: snout-frame)

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Support, Serial Range: snout-frame)

3шт.

27

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 in., internal dia. (Support snout to frame)

1шт.

28

K620190

BALL BEARING

- clutch driveshaft

1шт.

29

K621430

CIRCLIP

- 75 MM, internal

1шт.

30

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, S/N 11089342 and after

1шт.

FOOTNOTE

1шт.

Not applicable to N. America

1шт.
